Rockwell Automation 1609-PXBP External Battery Pack User Manual
Page 37
5
C
ONFIGURATION EN BAIE
Reportez-vous au Guide d'installation inclus dans le kit de rails pour des instructions sur l'installation
de l'onduleur et des blocs -batteries externes dans une baie.
REMARQUE : les blocs-batteries externes doivent être installés dans la baie sous l'onduleur.
Installation et connexion du (des) bloc(s)-batterie(s) externe(s)
1. Connectez les fils de terre vert/jaune (vis incluses) comme indiqué dans les illustrations ci-
dessous.

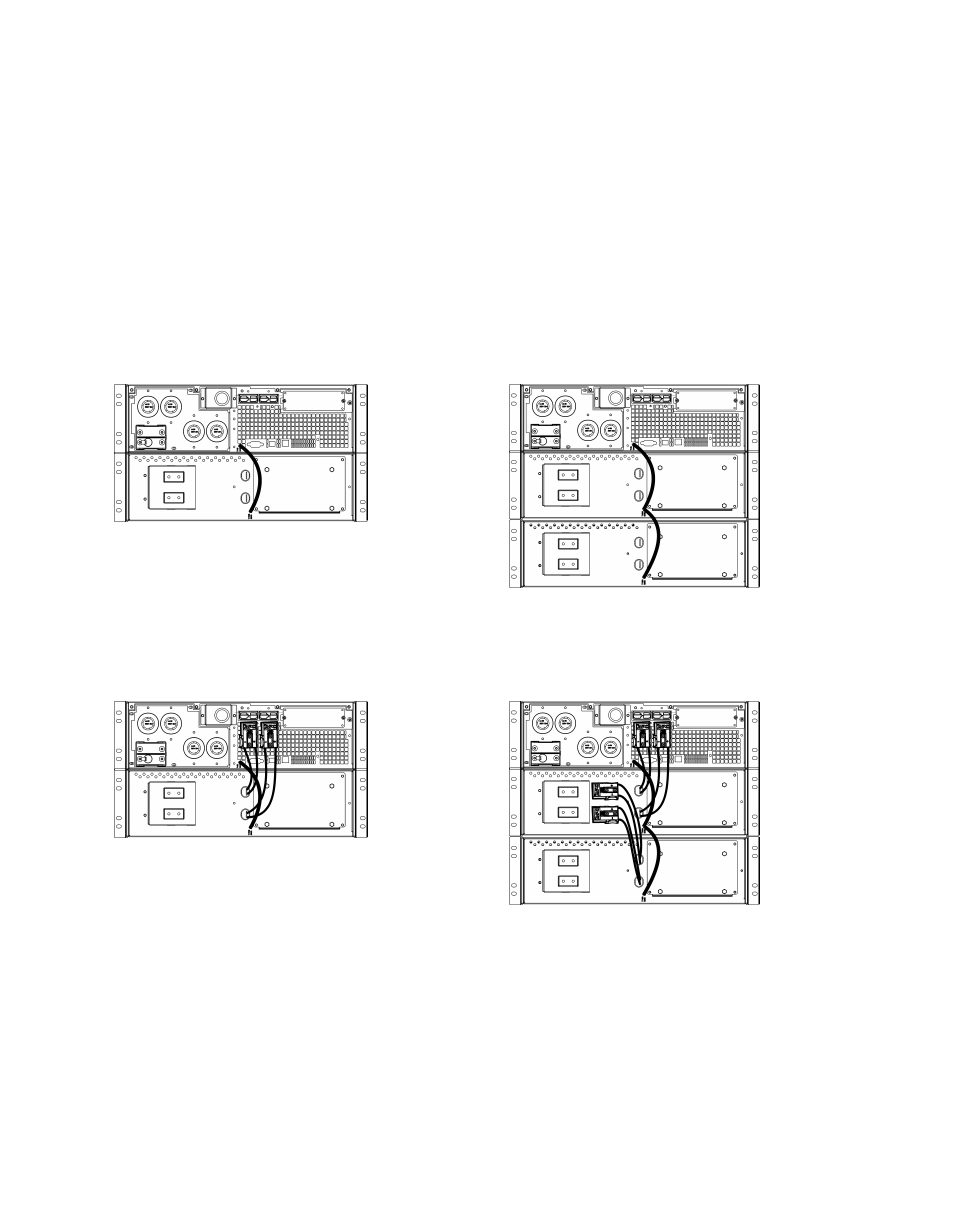

Connexion des fils de terre à la vis TVSS
2. Connectez les batteries sur le panneau arrière comme indiqué ci-dessous.
Connexions des batteries
