Rockwell Automation 1492 Modicon 800-to-1756 I/O Swing-arm Conversion System User Manual
Page 7

(7)
10000021923
(Version 00)
II. Conversion Steps

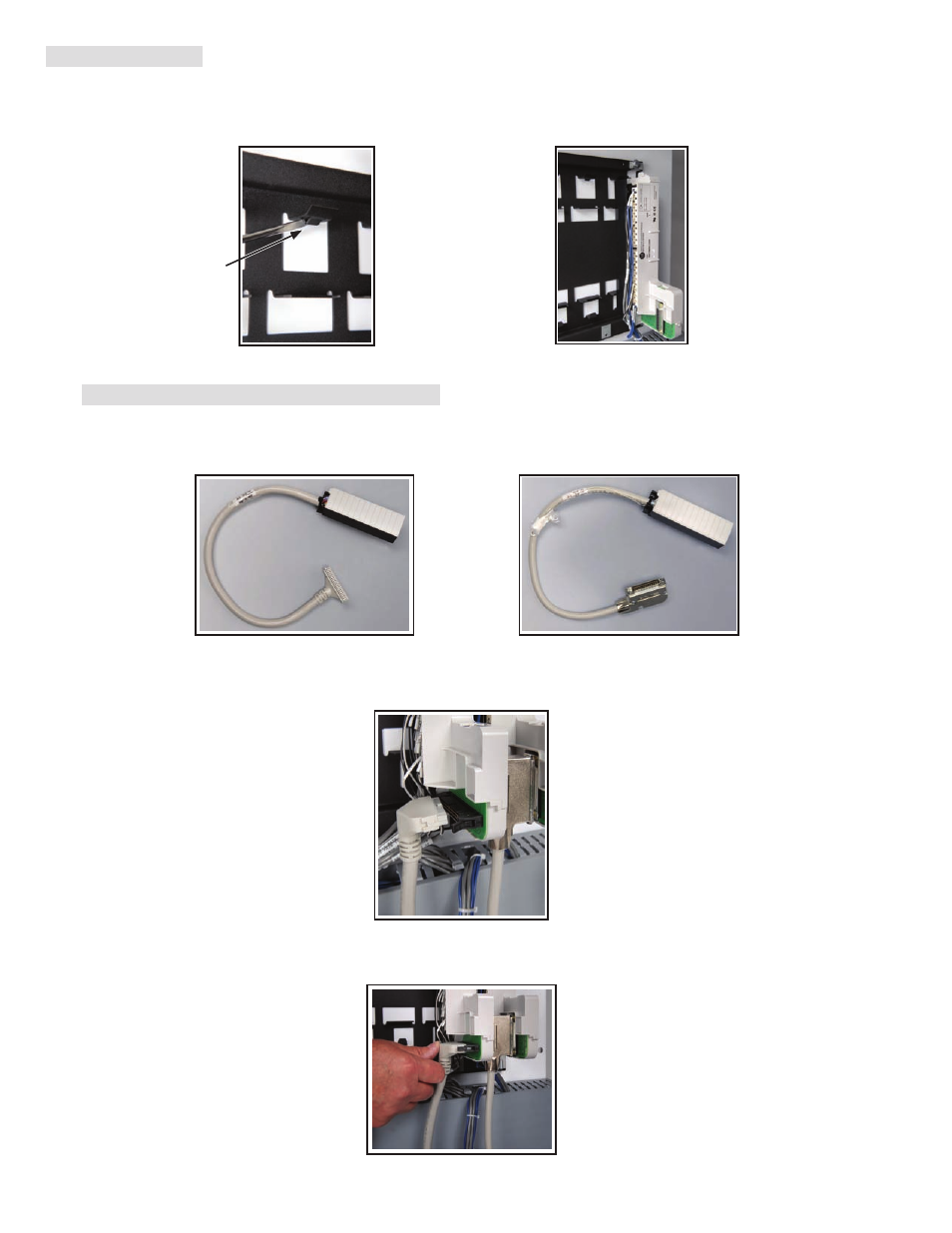

b) With the lower part of the conversion module/terminal block assembly attached to the base-plate’s hook/mounting tab, align the module between
the lower and upper horizontal module guides and gently push the upper part of the assembly into the spring locking tab until an audible snap is
heard. NOTE: It may be necessary to adjust the spring locking tab (bend down when mounted) to ensure it fully engages the module. This can
be done using a flat blade screwdriver (refer to Figure 5e).
6) Attach the 1492 Cables to the Conversion Module
Use the following procedure to attach the 1492 interface cable to the conversion module. The function of this cable is to attach the conversion
module to the 1756 I/O module.
a) Find the appropriate cable for the conversion and 1756 I/O module. Refer to Appendix B for a list of compatible cables.
b) Find the conversion module compatible end of the cable. NOTE: Digital cables (molded end) have a keyed connector, and analog cables have a
metal D-shell and a slide-locking assembly.
c) Gently guide the conversion module end of the cable into the conversion module, and firmly press the two components together. Refer to
Figures 6c and 6d.
Adjust spring
locking tab
Figure 5f
Figure 5e
Figure 6b
Figure 6a
Figure 6d
Figure 6c
