13. Front Side and User Elements

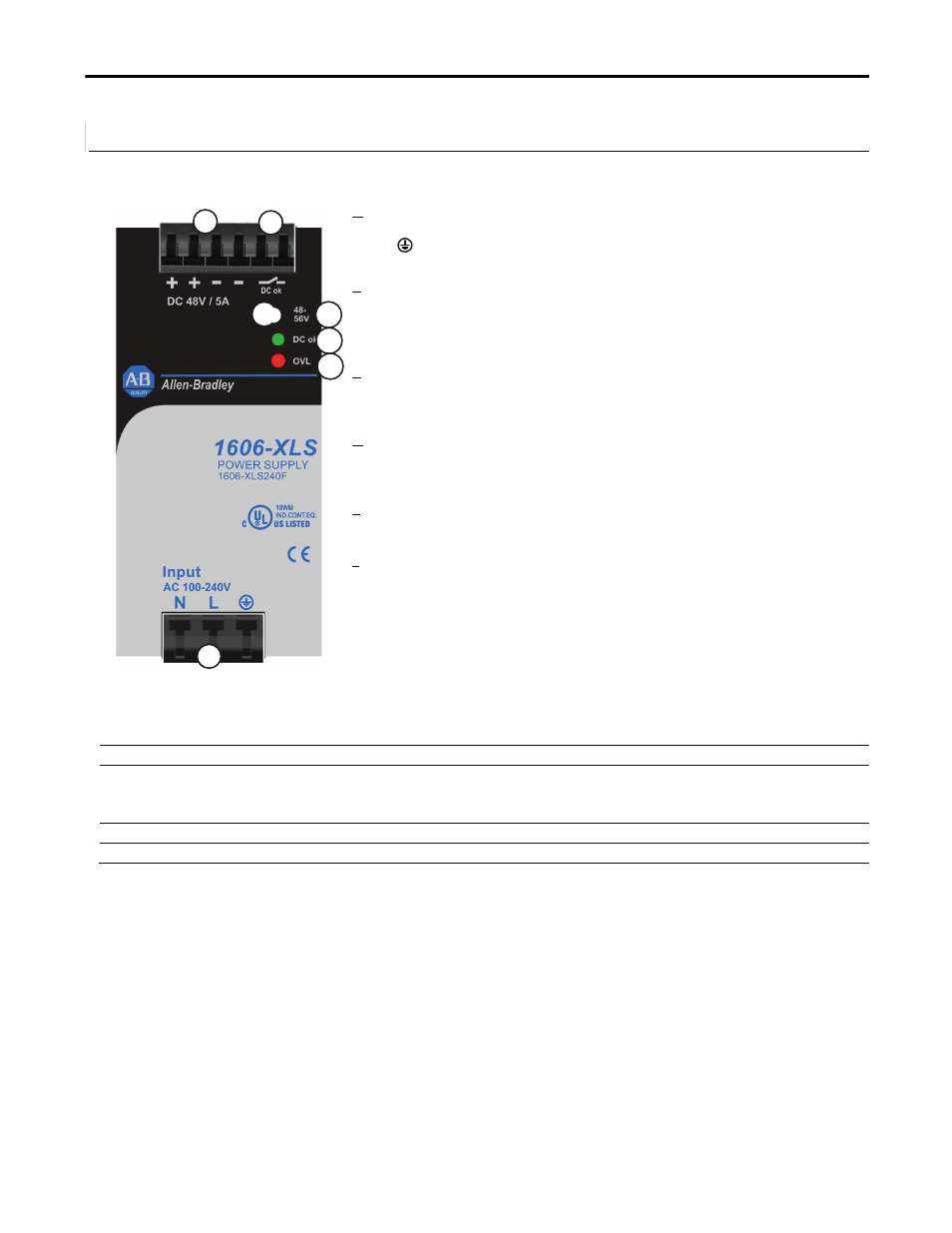

Fig. 13-1 Front side
A Input
Terminals (Quick-connect spring-clamp terminals)
N,
L
Line input
PE
(Protective
Earth)
input
B Output
Terminals (Quick-connect spring-clamp terminals, two pins per
pole)
+ Positive output
– Negative (return) output
C DC-OK
Relay
Contact
(Quick-connect spring-clamp terminals)
The DC-OK relay contact is synchronized with the DC-OK LED.
See section 8 for details.
D Output voltage potentiometer
Multi turn potentiometer;
Open the flap to adjust the output voltage. Factory set: 48.0V
E DC-OK
LED
(green)
On, when the output voltage is >90% of the adjusted output voltage
F Overload
LED
(red)
On, when the voltage on the output terminals is <90% of the adjusted
output voltage, or in case of a short circuit in the output.
Input voltage is required
Flashing, when the unit has switched off due to over-temperature.
Indicators, LEDs
Overload LED
DC-OK LED
DC-OK Contact
Normal mode
OFF
ON
Closed
During BonusPower
OFF
ON
Closed
Overload (V
OUT
< 90%)
ON
OFF
Open
Output short circuit
ON
OFF
Open
Temperature Shut-down
Intermitted
OFF
Open
No input power
OFF
OFF
Open
A
B
C
D
E
F
