BULLETIN 194R FUSED DISCONNECT SWITCH
INSTRUCTION SHEET
CATALOG NUMBERS 194R-NJ400P3, -NN400P3, -NB200P3,
NB300P3, -ND250P3, -ND300P3, -NH200P3, -NH400P3
REVISION
AUTHORIZATION
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
H
A
B
C
D
E
F
G
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
REFERENCE
SHEET OF DWG.
B
DR.
CHKD.
APPD.
DATE
DATE
DATE
±
±
±
ANGLES:
.XXX:
.XX:
THIS DRAWING IS THE PROPERTY OF
THE ALLEN-BRADLEY CO. INC.
AND MAY NOT BE COPIED, USED OR
DISCLOSED FOR ANY PURPOSE EXCEPT
AS AUTHORIZED IN WRITING BY
THE ALLEN-BRADLEY CO. INC.
LOCATION : MILWAUKEE, WISCONSIN U.S.A.
SIZE
1 2 3 4 5 6 7 8
E-DOC

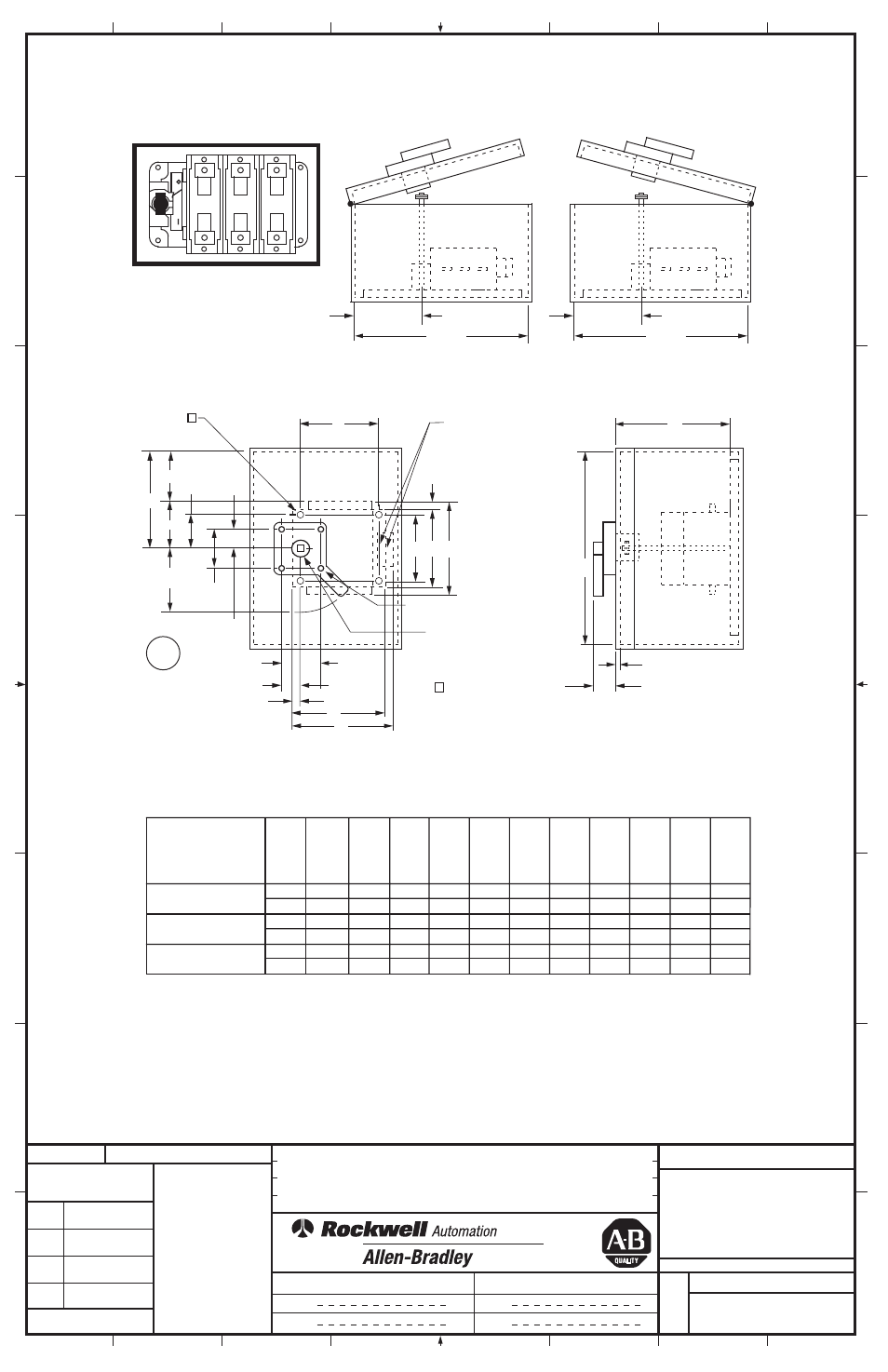

DISCONNECT SWITCH AND OPERATING HANDLE INSTALLATION DIMENSIONS
ENCOMBREMENT DU SECTIONNEUR ET DE LA POIGNEE D'ACTIONNEMENT
INSTALLATIONSABMESSUNGEN FÜR TRENNSCHALTER UND BEDIENUNGSHEBEL
DIMENSIONES DEL INTERRUPTOR DE DESCONEXION E INSTALACION NO EMPOTRADA
DIMENSOES PARA INSTALAÇÃO DA CHAVE SECCIONADORA E DA ALAVANCA DE ACIONAMENTO
DIMENSIONI PER L'INSTALLAZIONE DEL SEZIONATORE E MANIGLIA DI AZIONAMENTO
mm
mm
in.
in.
E1
E2
E F G J K L M N P Q
75
2-61/64
75
2-61/64
150
5-29/32
150
5-29/32
252
9-59/64
252
9-59/64
220
8-21/32
220
8-21/32
294
11-37/64
294
11-37/64
147
5-25/32
147
5-25/32
37
1-29/64
37
1-29/64
14
35/64
14
35/64
278
10-15/16
278
10-15/16
290
11-13/32
290
11-13/32
D
158
6-7/32
209
8-7/32
mm
in.
F1
75
2-61/64
150
5-29/32
282
11-7/64
250
9-27/32
358
14-3/32
179
7-3/64
54
2-1/8
14
35/64
308
12-1/8
320
12-19/32
202
7-61/64
DIMENSION REFERENCE
REFERENCE DE DIMENSIONS
KENNUNG F†R ABMESSUNGSANGABEN
REFERENCIA DE DIMENSIONS
REFERENCIA DA DIMENSÃO
REFERENZE DIMENSIONALI
OFF
ON
W
A
W
75
(2-61/64)
37.5
(1-15/32)
75
(2-61/64)
37.5
(1-15/32)
B
D
J K
E
G
F
L
M
N
P
Q
H
T
C 195-GA_ _ , 2 MAXIMUM
195-GA_ _ , 2 MAX.
195-GA_ _ , MAX. 2
195-GA_ _ , MAXIMO 2
195-GA_ _ , 2 MAXIMO
195-GA_ _ , MASSIMO 2
4- ¿ 5.5
(4-.219 dia.)
4-M6 x 1.25 1
4.0 N¥m
35 lb-in
1 The switch is capable
of accepting 4-1/4 in. dia.
screws for mounting
¿ 65
(2-9/16 dia.)
58
(2-9/32)
140
(5-33/64)
mm
(in.)
1
1
A
2
2
