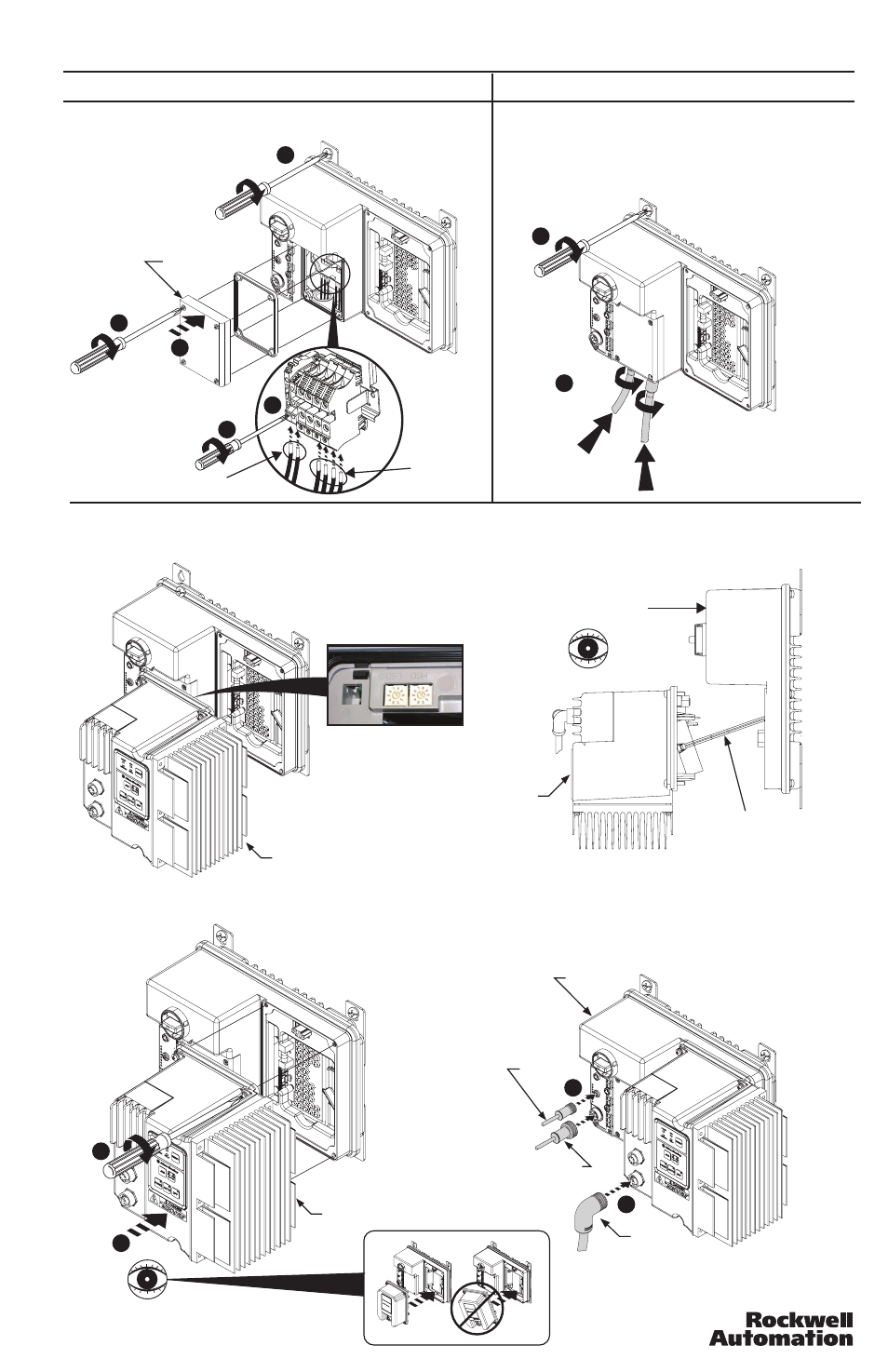

13) Mount Base Module with four Mounting Screws.
14) Re-Install conduit fittings and wires onto terminal block.
15) Tighten the terminal screws.
16) Install terminal cover plate.
17) Tighten the four mounting screws on
the terminal access cover plate to
12-14 lb-in.
With Conduit / Cable With ArmorConnect Media
Terminal Access
Cover Plate
PN-78269
DIR 10000125790
(Version 00)
Printed in U.S.A.
Control
Module
Communication
Cable
Input / Output
Cable
Base Module
Motor
Cable
17
16
15
Control
Module
5
20
20
18
19
14
Base
Module
Control
Module
Disconnect SM
wire connection
between Control and
Base Modules
13) Mount Base Module with four mounting screws.
14) Install the ArmorConnect Media to the gland plate connectors by
plugging the media in and tightening the fastener.
Skip to Step 18
Installation of Control Module
Installation of Base Module
NOTE: Verify that the new Control Module has the same node address as the
old module. Default setting is ‘99’
If the unit has Safety Monitor Option (-SM), re-connect the wire
connection between the Control and Base Modules
18) Install the Control Module by pushing straight toward the base with proper orientation
19) Tighten the four mounting screws to 30-40 lb-in.
20) Install communications, input and output cables to the Base Module, and motor and brake cables to the Control Module.
14
13
13
12-14 in-lbs
30-40 in-lbs
Line Voltage
16-20 in-lbs
Control Voltage
5-7 in-lbs
