Page 20

18
Rockwell Automation Publication 440C-QS001A-EN-P — January 2014
Quick Start Guide
3.
We will use the multi-state indicator to indicate the status of the
Guardmaster 440C-CR30 inputs, outputs and fault status. We will use a
multi-state pushbutton for the reset function. To do this, we need to create
tags, then place icons onto the screen and link the icons to the tags.
This guide will show how to set up one indicator and the reset button. The user
can follow these same steps to create additional indicators.

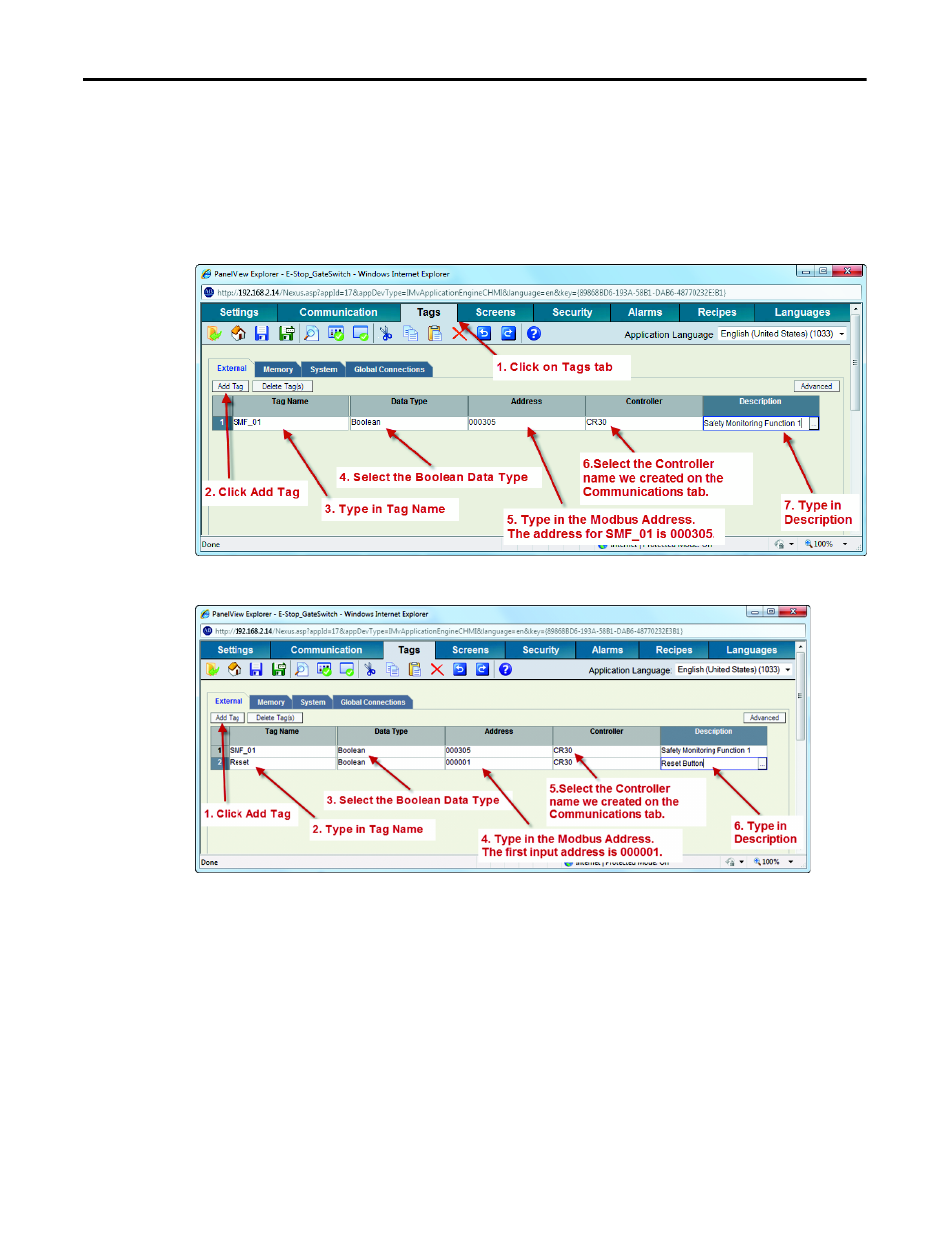

Create a tag for Safety Monitoring Function 1. This is the e-stop block.
4.
Create a tag for reset button.
