Step 7: Installing the
Shields
1. Align six (6) holes in the Front Shield with holes in the top cover and
assemble six (6) plastic rivets. Apply force with the malleable hammer
as required to completely install the plastic rivets.
2. Align five (5) holes in the Rear Shield with holes in the top cover and
assemble five (5) plastic rivets. Apply force with malleable hammer as
required to completely install the plastic rivets.
Step 8: Documenting the
Change

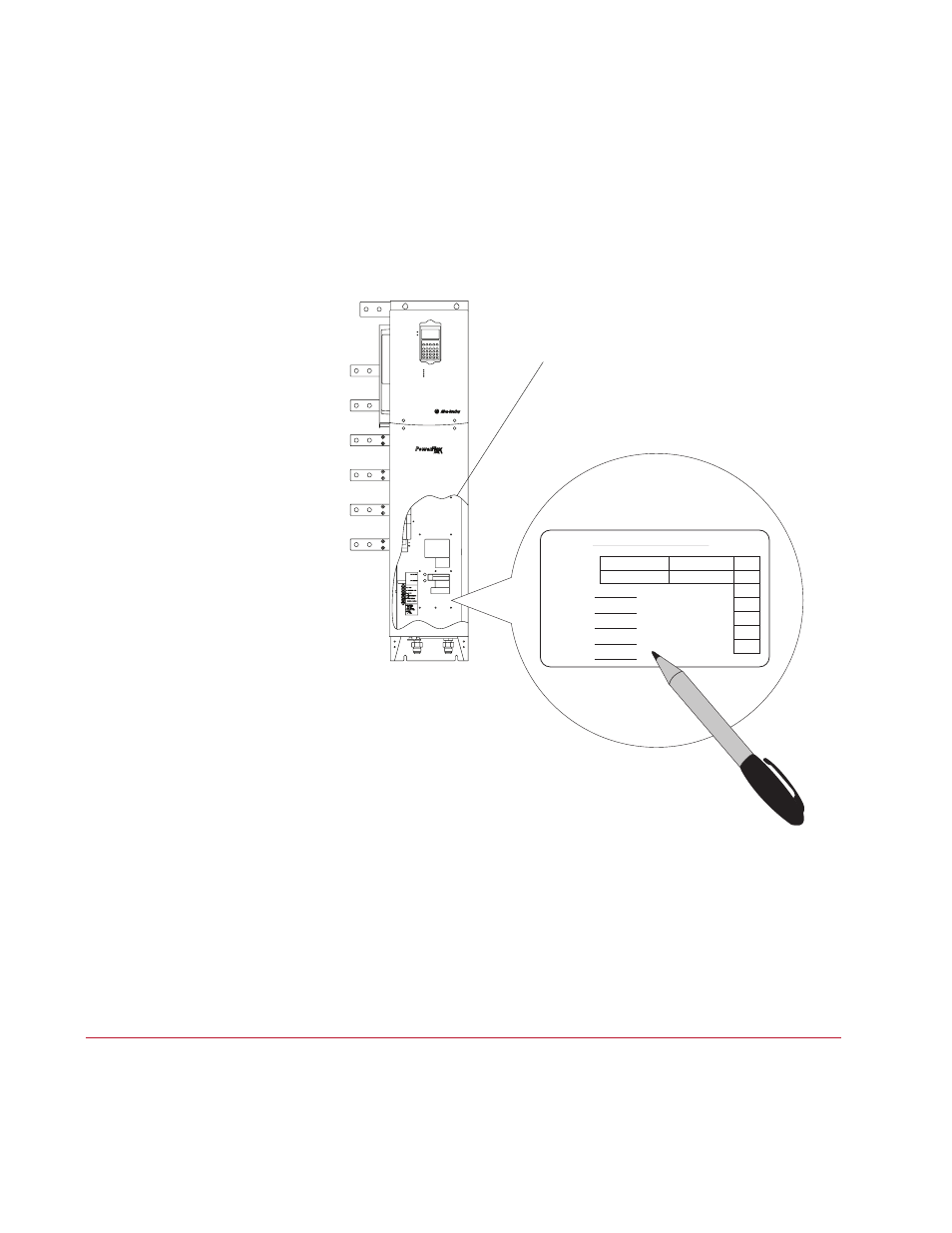

1. Record the change on the Field Installed Option label. Use a marker to
write in the kit catalog number (SK-L1-DCBS1-F3).
2. Replace the power module lower front cover.
DANGER
PORT
POWER
STS
MOD
NET A
NET B
FIELD INSTALLED OPTIONS
Firmware
#:
Date
Firmware
20-HIM
28-IO-
20-COMM-
20B_-DB1-
HIM
I/O
COM Module
Internal Dynamic Brake
#:
Date
Power Module
Lower Front Cover
Cutaway
