Step 3: assembling spacers to the top cover – Rockwell Automation 20L PowerFlex 700L Frame 3A DC Bus Bar Conversion Kit User Manual
Page 4

4
PowerFlex® 700L Frame 3A DC Bus Bar Conversion Kit
Step 3: Assembling
Spacers to the Top Cover
1. Place two (2) DC Bus bar spacers on a sturdy flat work surface.
2. Locate the spacers beneath the top cover such that all five (5) holes in
each spacer align with the five (5) holes in the top cover.
3. Using the malleable hammer, drive two plastic rivets through the top
cover and into each spacer at their hole locations 2 and 4.

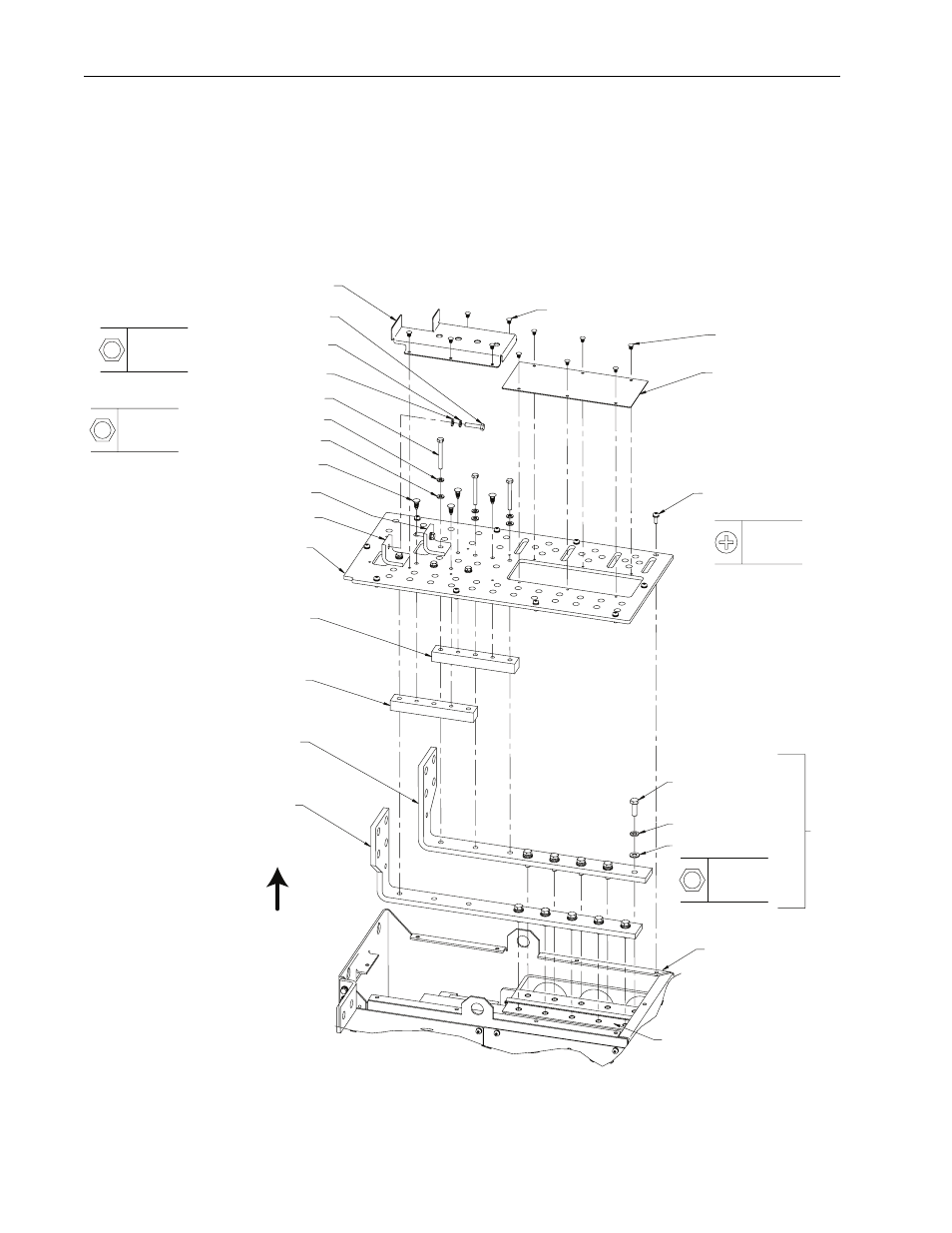

Rear Shield
Front Shield
Screw M6 X 30 mm Long (2)-Places
Screw M5 X 16 mm Long
10X
10 mm
5.5 (N
•
m)
48.5 (lb
•
in)
10 mm
5.5 (N
•
m)
48.5 (lb
•
in)
DC+ Bus Bar
DC- Bus Bar
Spacer
(DC+)
Spacer
(DC-)
Plastic Rivet 2X (2)-Places
Plastic Rivet
6X
Plastic Rivet
5X
M6 Flat Washer 3X (2)-Places
M6 Flat Washer (2)-Places
M6 Lock Washer 3X (2)-Places
M6 Lock Washer (2)-Places
Screw M6 X 55 mm Long 3X (2)-Places
Support Angle (DC+)
Support Angle (DC-)
Top Cover
P2
2.8 (N
•
m)
24.5 (lb
•
in)
Screw M8 X 25 mm Long
Qty. per Catalog String
Position 4 Code (2)-Places
13 mm
13.5 (N
•
m)
119.5 (lb
•
in)
M8 Flat Washer
Laminate Bus Bar
M8 Lock Washer
See
Step
5.3
TOP
Power Module
Chassis
