Step 3: installing the i/o converter board – Rockwell Automation 20P PowerFlex DC Drive 115V AC to 24V DC I/O Converter Circuit Board User Manual
Page 6
6
PowerFlex® DC Drive 115V AC to 24V DC I/O Converter Circuit Board
Step 3: Installing the I/O
Converter Board

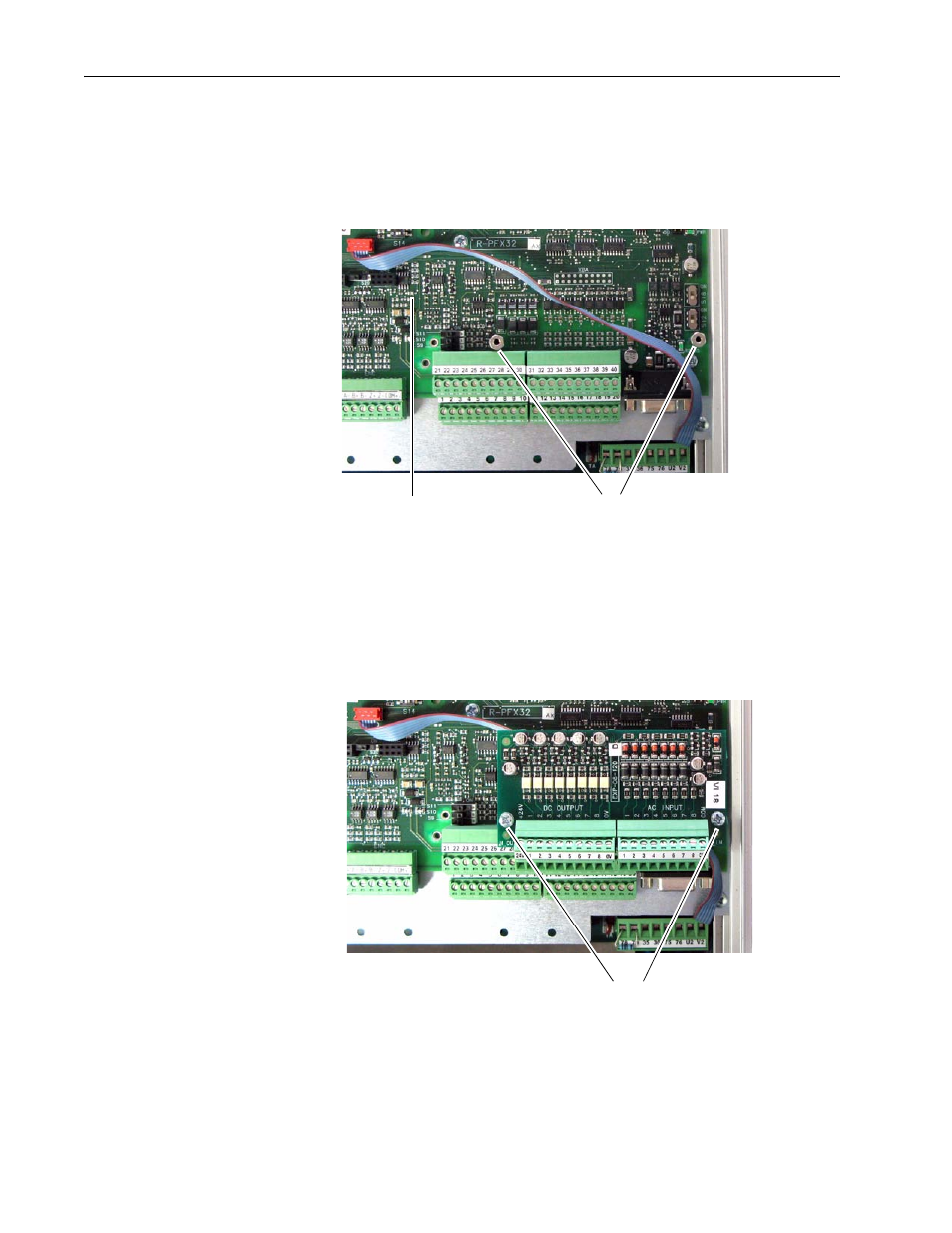

1. Install and tighten the two (2) spring washers and stand-offs on the
Control board.
Important: Do not over tighten the stand-offs or circuit board damage may
occur.
2. Secure the I/O Converter board to the stand-offs on the Control board
using the two screws provided.
Important: Do not over tighten the screws or circuit board damage may
occur.
Install two spring washers
and stand-offs
Control board
Install two screws
