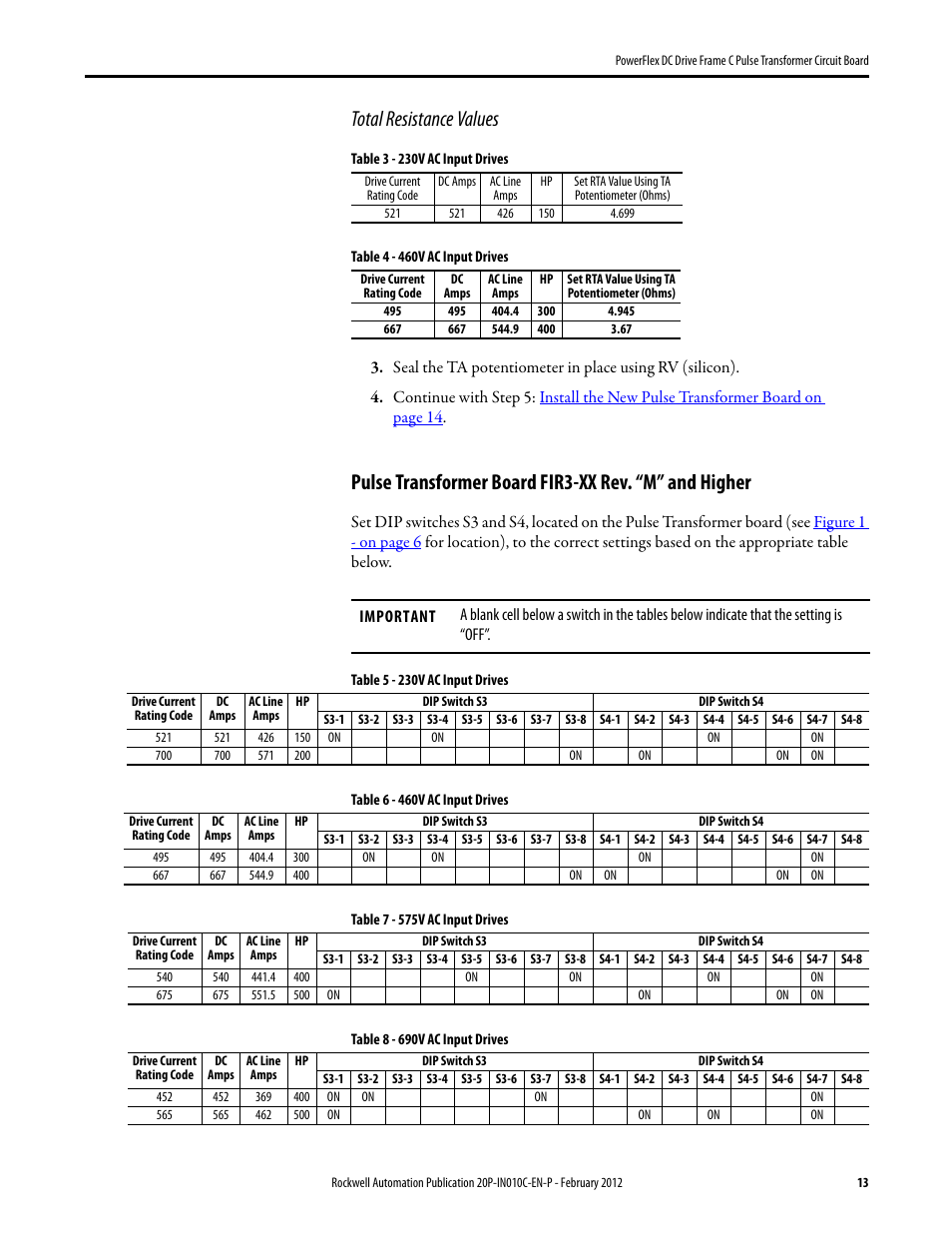

Total resistance values – Rockwell Automation 20P PowerFlex DC Drive - Frame C Pulse Transformer Circuit Board User Manual
Page 13
