Rockwell Automation 20P PowerFlex DC Drive - Frame B Field Circuit Board User Manual
Page 9
PowerFlex® DC Drive - Frame B Field Circuit Board
9

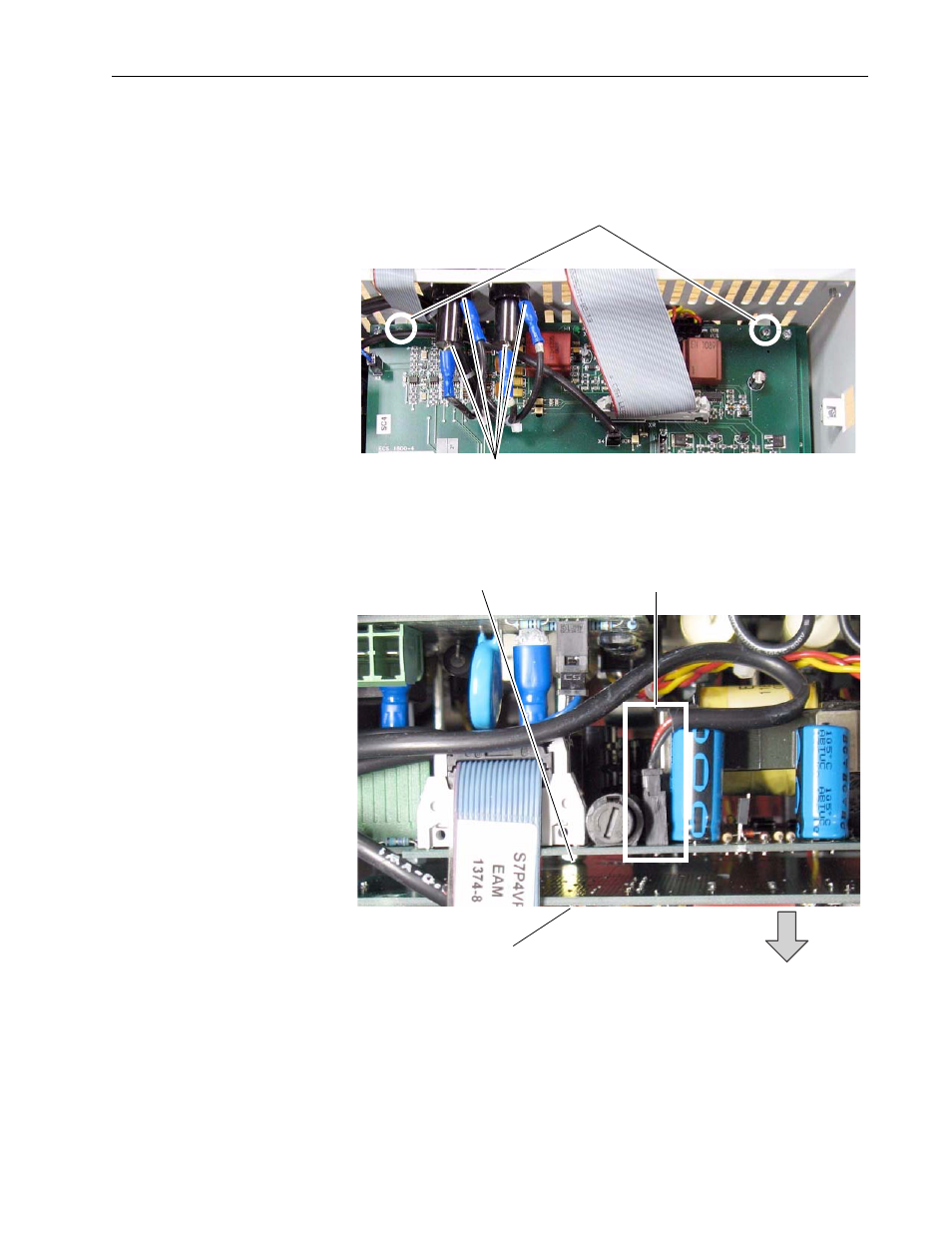

8. Remove the two screws that secure the air flow plate to the top of the
Pulse Transformer board and lift the plate off the drive chassis. The air
flow plate cannot be completely removed due to the fuse connections at
FU1 and FV1.
9. Remove the cable from connector XV on the Switching Power Supply
board.
Remove screws
Fuse connections
Remove cable from XV
Front of drive
Switching Power Supply board
Pulse Transformer board
