DIR 1000682R0002 (L5757)
(27)
IEC 60950 (UL 1950) or equivalent, able to guarantee a common mode current or leakage current (see IEC 478/1, CEI 22/3) of no more
than 3.5mA, IEC 60364-41 and CEI 64-8.
U) The shield of the connection cable must be earthed on the circuit-breaker side only. The connection must be made with shielded two-wire
cable (the BELDEN 3105A type) no more than 15 meters in length.
Z) Short-circuit T5 and T6 if the outside neutral current sensor (UI/N) is not connected.

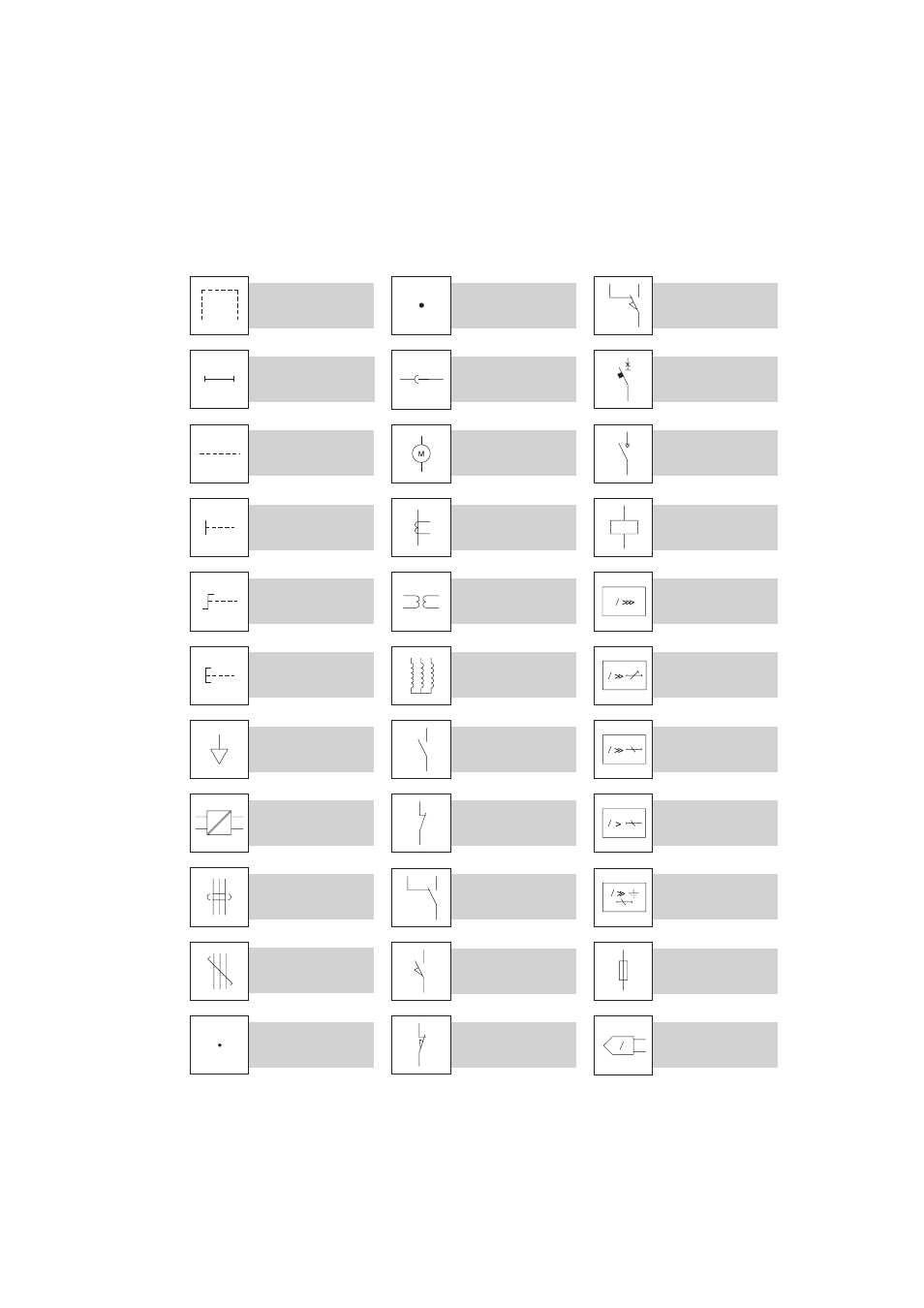

Circuit diagram symbols (Standards IEC 60617 and CEI 3-14...3-26)
Shield (may be drawn in any
shape)
Time delay
Mechanical or electrical
connection
Manual mechanical control
(general case)
Rotating control
Pushbutton control
Equipotentiality
Terminal or clamp
Socket and plug
(female and male)
Motor
(general symbol)
Current transformer
Voltage transformer
Winding of three-phase
transformer, star connection
Change-over position con-
tact with momentary circuit
breaking (limit contact)
Power isolator with auto-
matic opening action
Switch-disconnector
Control coil
(general symbol)
Instantaneous
overcurrent relay
Overcurrent relay
with adjustable short
time-delay trip
Galvanically separated
converter
Shielded cable conductors
(e.g. three conductors)
Conductors or stranded
cables (e.g. 3 conductors)
Conductor connections
Make contact
Break contact with
automatic breaking
Change-over contact
Make position contact
(limit contact)
Break position contact
(limit contact)
Overcurrent relay with
inverse short time-delay
trip
Overcurrent relay
with inverse long time-delay
trip
Overcurrent relay
for earth fault with inverse
short
time-delay
Fuse
(general symbol)
Current sensor
