Rockwell Automation 20P PowerFlex DC Drive - Frame D Terminal Adapter Kits User Manual
Page 5
Rockwell Automation Publication 20P-IN058B-EN-P - September 2012
5
PowerFlex DC Drive Frame D Terminal Adapter Kits

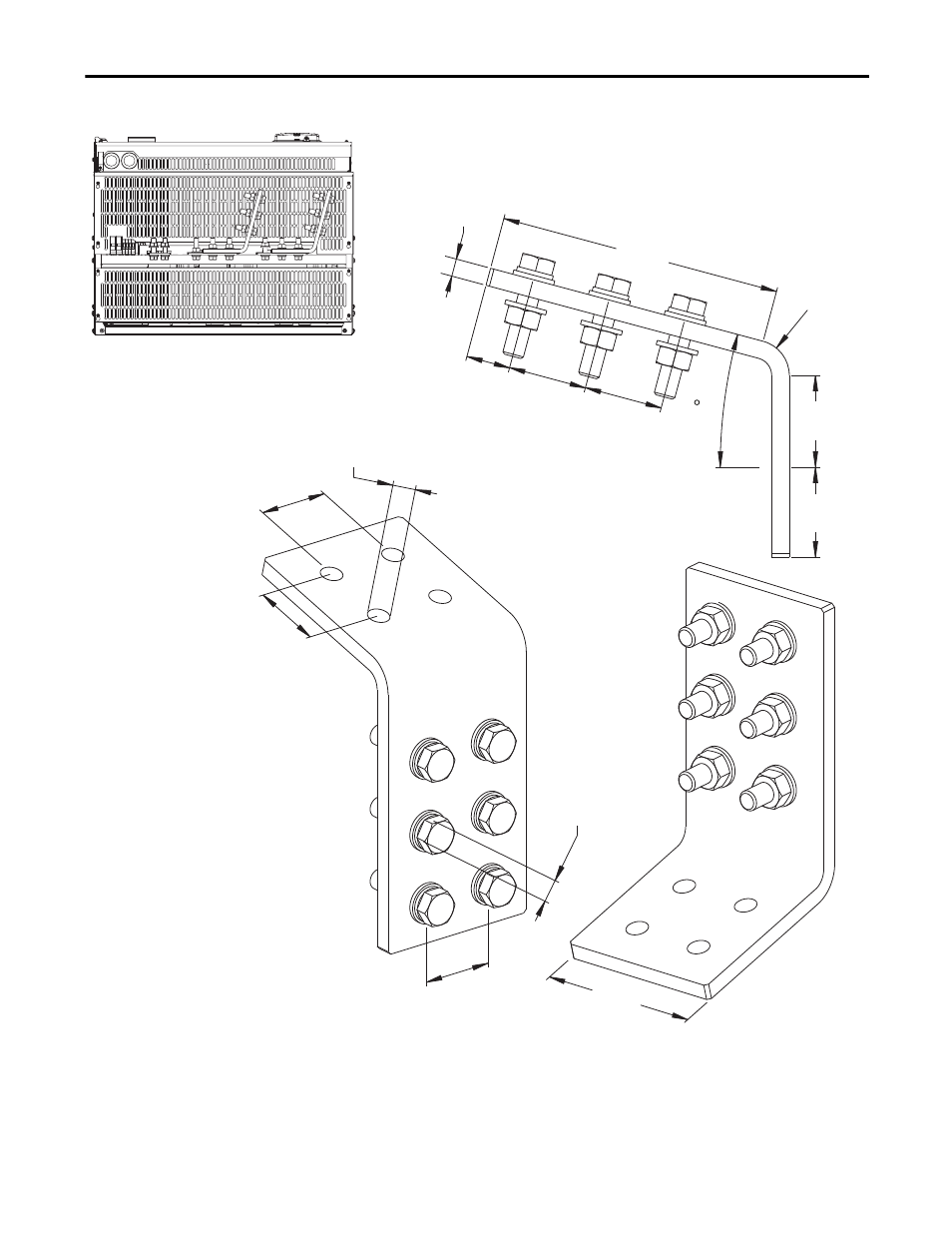

Figure 3 - DC Output (C, D) 10 x 100 mm Terminal Adapter Kit (SK-20P-S726173)
R20 (R0.8)
15
4x Ø 13 (0.5)
6x Ø 13 (0.5)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
160 (6.3)
51 (2.0)
52 (2.05)
100 (4.0)
25 (1.0)
44.45 (1.75)
10 (0.4)
Bottom of Drive
Dimensions shown in mm (in.)
