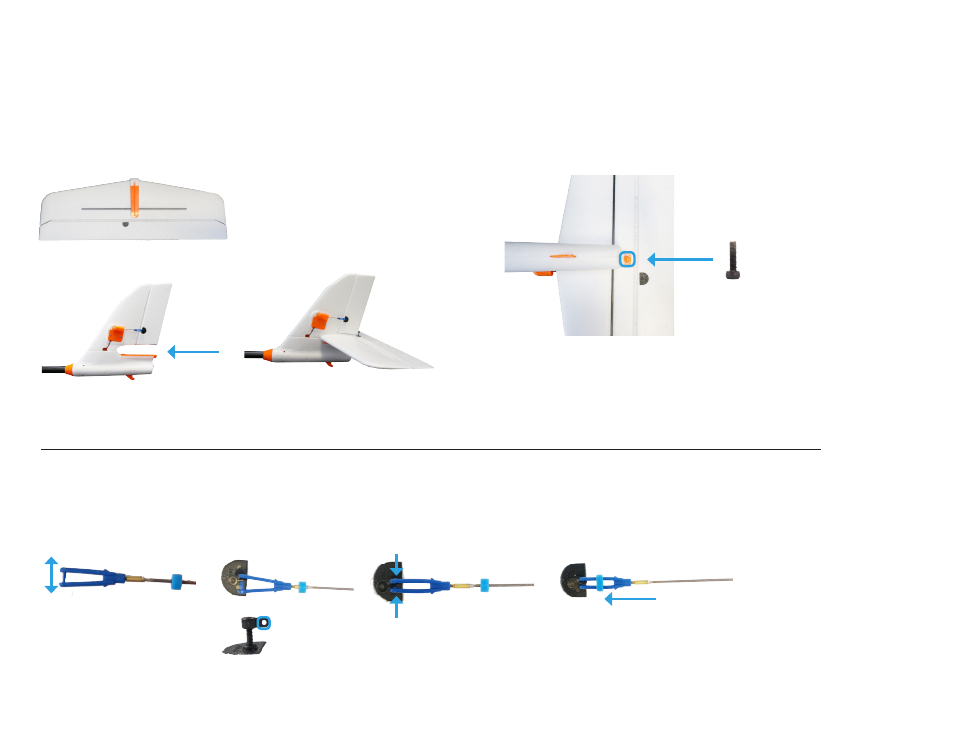

On the top of the horizontal stabilizer, open the blue clasp at the end of the servo rod. Insert the pegs on the clasp into the open
space in the servo horn, and close the clasp. Slide the blue rubber ring over the clasp to secure it in place.
servo horn
Turn the plane over and insert the provided tail screw into the horizontal
and vertical stabilizers.
Tail
Slide the horizontal stabilizer into the vertical stabilizer along the orange groove.
Make sure not to stress any of the components on the tail.
Assembly
clasp
Tail assembly (underside)
Tail screw
Horizontal stabilizer
Vertical stabilizer Complete tail assembly
