2.3 Editing Programs
Model High-Tech IV Programmable Controller supports Edit function of only
・Segment parameters; and
・Repeat parameters
or editing programs. Take note that the programmable controller does not support
Delete of repeat command and Insert of new segments or a new repeat command.

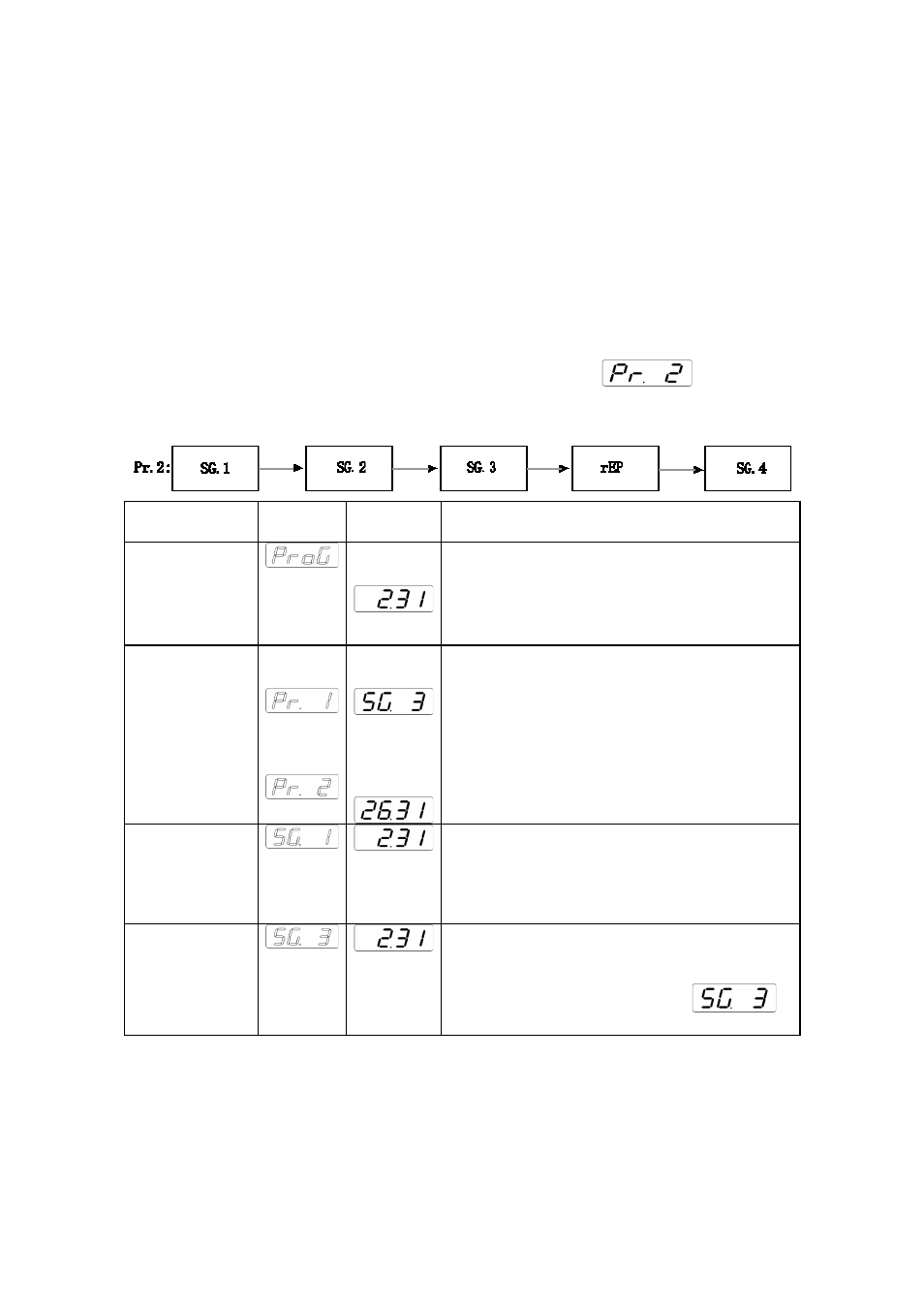

In this paragraph, you will edit Segment 3 of Program No. 2 in Fig. 2.6,
which is composed of the following segments and a repeat command.
Key Operation Main
Display Sub
Display Explanation
ｅ.g.,
Push the
MODE key
and then
push either▲
key or ▼key Left 2 digits: Number of the existing
programs
Right 2 digits: Remaining memory size (%)
ｅ.g., ｅ.g.,
↓ ↓
ｅ.g.,
Push ENTER
key.
Push▲or▼key
Activates Program Input & Edit mode.
Push ▲ or ▼ key to show the program
number you want to edit on the main display.
Left 2 digits: Memory size of Program No. 2
Right 2 digits: Remaining memory size
Push ENTER
key. The main display Rashes the first segment
number of the program.
Left 2 digits: Program number you are
working on.
Right 2 digits: Remaining memory size (%)
Push ▲ or ▼
key. Every time you push A or Y key, the main
display scrolls the segments of the program
in the preset sequence. In this example, you
are going to edit Segment 3 ,
which should be shown on the main display.
