Yamato Scientific Hitech controller type Ⅳ User Manual

Page 14

Note: In the tables below, hollow alphanumeric characters mean that they

are flashing on the corresponding display.

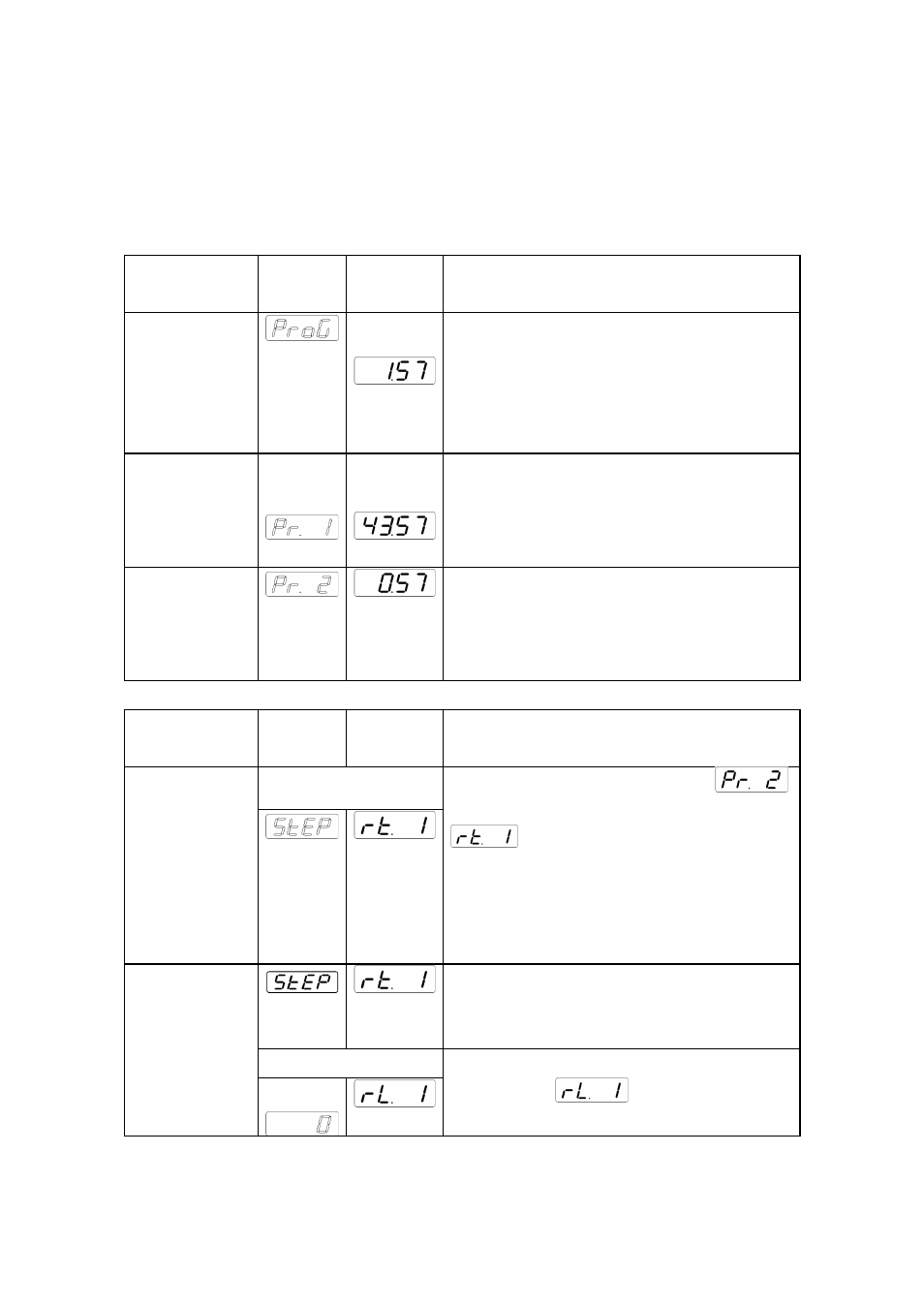

[Setting Program Number]

[Setting Program Number]
Key
Operation

Main
Display

Sub
Display

Explanation

e.g.,

Push the
MODE key
and then
push either ▲
key or ▼ key

Left 2 digits: Number of the existing
programs
Right 2 digits Remaining memory size (%)

e.g.,

Push ENTER
key,

Activates Program input & Edit mode.
Main: Indicates Program No. 1.
Left 2 digits: Memory size of Program No. 1
Right 2 digits: Remaining memory size

Push ▲ key.

Same as above.
The slob display shows that the memory size
of Program No. 2 is zero (O) or that Program
No. 2 has not been programmed.

[Setting Segment 1]

[Setting Segment 1]
Key
Operation

Main
Display

Sub
Display

Explanation

Approx. 1 second later

Push ENTER
key.

Activates Program input mode for

Requesting to input Ramp Time 1

of Segment 1. Push ▲ or ▼ key

when you want to switch Prom STEP to real
time. In this example, you are working on a
step operation so that you do not need to
change the indication.

Push ENTER
key.

The main display stops flashing and keeps
lighting the indication, notifying that Ramp
Time 1 was set.

Approx. I second later
e. g

Requesting to input the temperature of
Ramp Level 1
