Technical Data Sheet

Toll Free: 877-894-6448 • www.wingits.com • [email protected]

WGB5IE_SpecSheet_20140328_rev3

Allen Wrench x 1

Set Screw x 2

S/S Screw for Blocking x 2

3M

®

Waterproof ME Tape x 2

I

NCLUDED

H

ARDWARE

O

PTIONAL

H

ARDWARE

(Sold Separately)

W

ING

I

TS

®

MODERN Elegance™

Grab Bar Fasteners (GBWME40) x 2

Grab Bar dimension plus 0.75"

To determine the installation points of the Grab bar, DEDUCT 1.25" from the Grab bar length.

e.g., A 24" Grab bar has mount holes at 22.75".

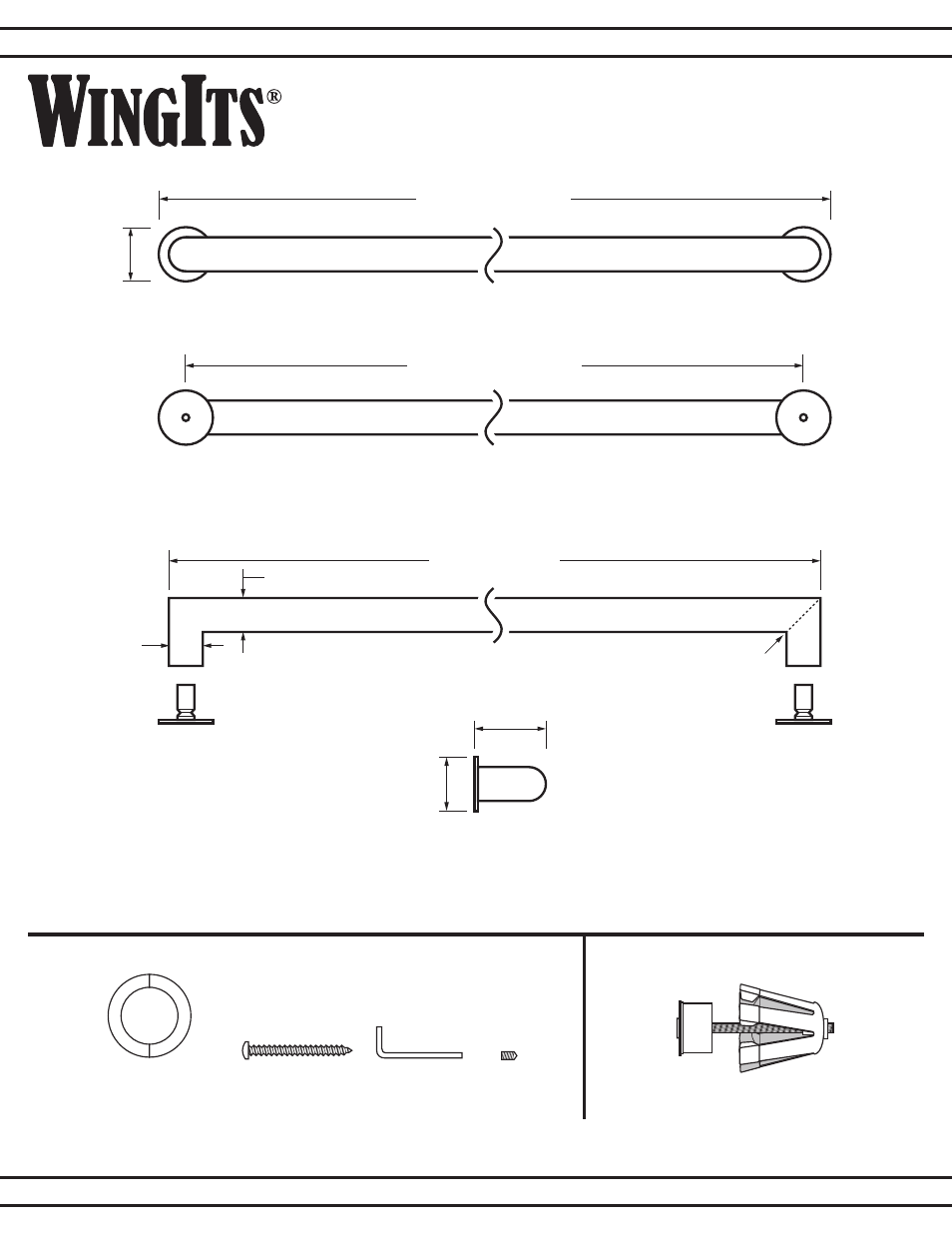

2" (5.1cm)

Overall length of Grab Bar minus 2"

xx” - Grab Bar dimension

Fully HeliArc welded construction

2" (5.1cm)

2.75" (7cm)

1.25" (3.2cm)

1.25" (3.2cm)

FRONT

BACK

TOP

SIDE
