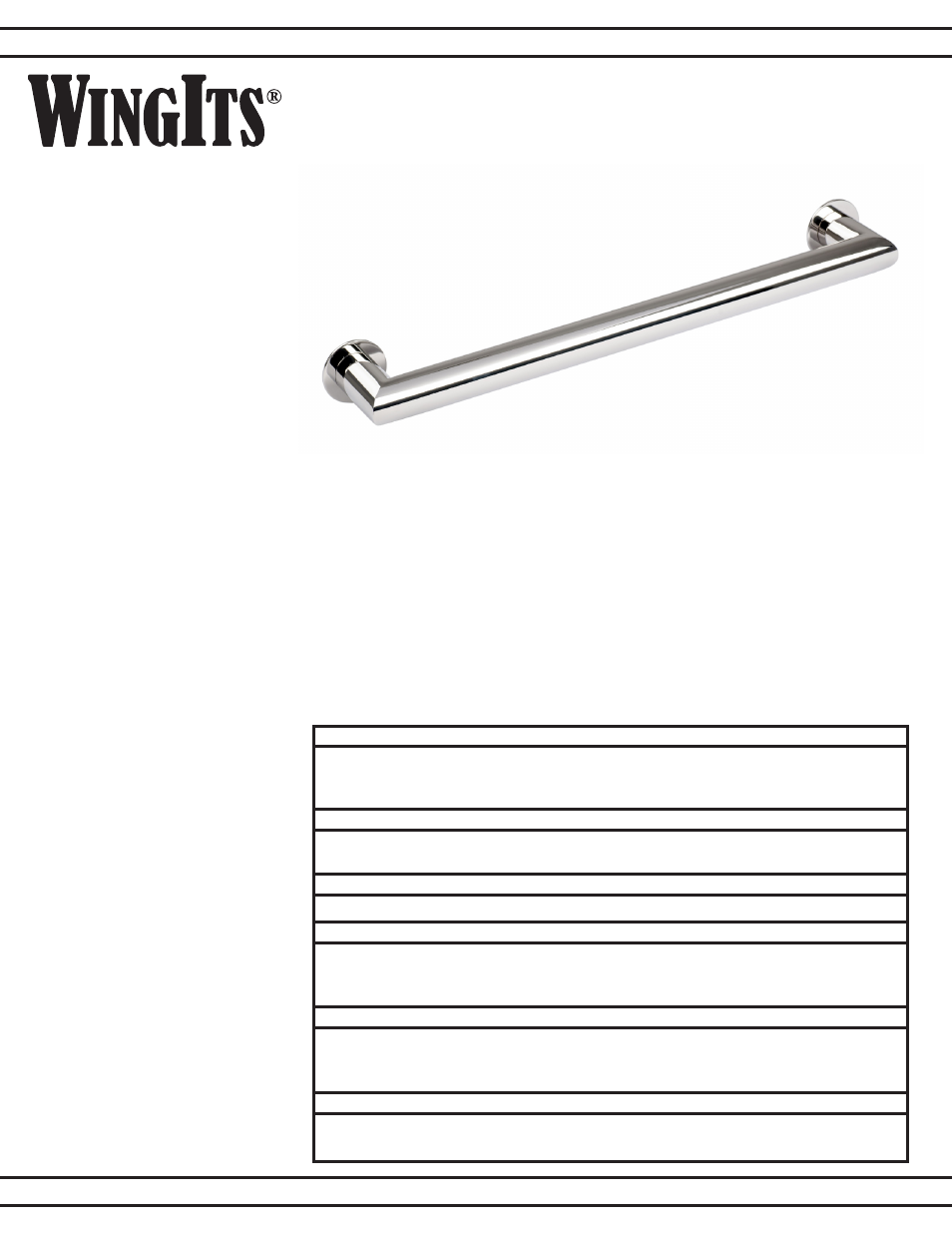

WINGITS INFINITE Grab Bar WGB5IExx - Manual

Technical Data Sheet
Toll Free: 877-894-6448 • www.wingits.com • [email protected]
WGB5IE_SpecSheet_20140328_rev3
WGB5IExx
Structural 18/8 Stainless Steel Grab Bar
INFINITE Elegance
™
Height: 2" (5.1cm)
Width: xx” (See product part number for width). Complete length of Grab Bar is usable surface.
Diameter: 1.25" (3.2cm)
Entire product is 18/8 (304) stainless steel. Solid caps and pins are HeliArc welded to 18 gauge
tube.
W ING I TS ®
INFINITE Elegance ™ Structural Stainless Steel Grab Bars are designed to hold live
loads and must be installed into adequate structural blocking or with W ING I TS ® Grab Bar
Fasteners (GBWME40).
Use: Wall Installation. Load Capability: 800 lbs. (362.9kg) when properly installed.
W ING I TS ®
INFINITE Elegance ™ Structural Stainless Steel Grab Bars meet or exceed the
applicable requirements of all building codes, ADA criteria, and 2010 ADAAG and
2009 ANSI standards.
For hollow wall construction, it is recommended that W ING I TS ®
Grab Bar Fasteners (GBWME40)
are used with this product. See Fastener instructions for applications.
MECHANICAL DATA
PRODUCT COMPOSITION
MODALITY
INSTALLATION
CERTIFICATIONS
RECOMMENDED INTEGRATION
Model:
Part Numbers:
WGB5IEPS6
6” Polished Finish
WGB5IEPS8
8” Polished Finish
WGB5IEPS12
12” Polished Finish
WGB5IEPS16
16” Polished Finish
WGB5IEPS18
18” Polished Finish
WGB5IEPS24
24” Polished Finish
WGB5IEPS30
30” Polished Finish
WGB5IEPS32
32” Polished Finish
WGB5IEPS36
36” Polished Finish
WGB5IEPS42
42” Polished Finish
WGB5IEPS48
48” Polished Finish
WGB5IEPS54*
54” Polished Finish
WGB5IEPS60*
60” Polished Finish
WGB5IESN6
6” Satin Finish
WGB5IESN8
8” Satin Finish
WGB5IESN12
12” Satin Finish
WGB5IESN16
16” Satin Finish
WGB5IESN18
18” Satin Finish
WGB5IESN24
24” Satin Finish
WGB5IESN30
30” Satin Finish
WGB5IESN32
32” Satin Finish
WGB5IESN36
36” Satin Finish
WGB5IESN42
42” Satin Finish
WGB5IESN48
48” Satin Finish
WGB5IESN54*
54” Satin Finish
WGB5IESN60*
60” Satin Finish
Stainless steel screws are included to install into
adequate structural blocking.
*Grab Bars include center support.
Contemporary design combines with a fully HeliArc welded construction,
resulting in a Grab Bar with:
• Unparalleled strength
• Beauty
• Functionality
• Durability
• No lines for dirt to collect
(maintenance free)
