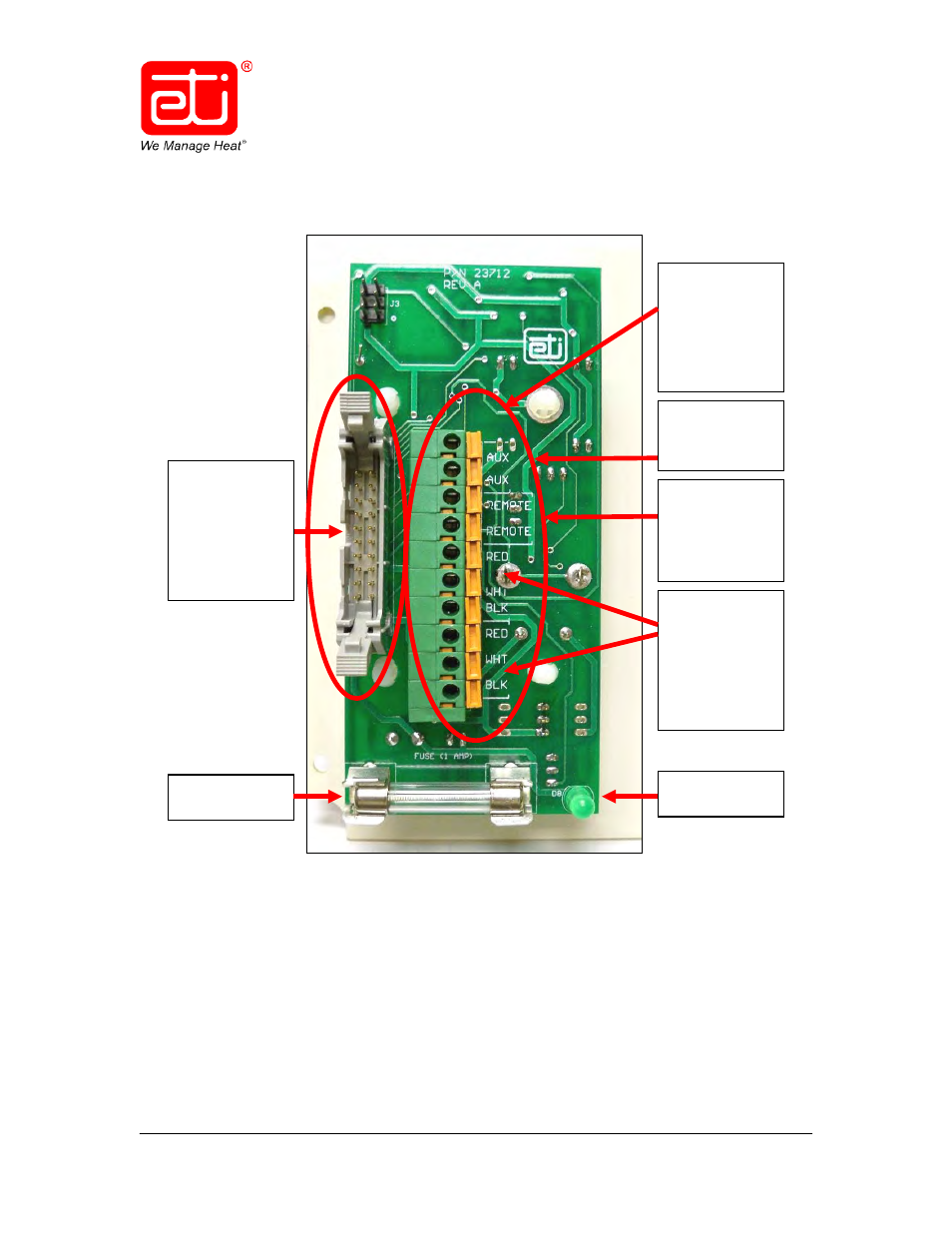

Refer to Figure 4 for useful information regarding the front panel PC board.
Figure 4. THE PD Pro FRONT PANEL PC BOARD.
Cable Connector
Receptacle
(Note the notch
to ensure proper
orientation.)
Terminal block
J1 with terminals
labeled for
system cables
and wiring.
1 Amp Fuse Fuse LED
Sensor Cables (It
does not matter
which of the
sensors is wired
into which set of
terminals.)
Optional
Temperature
Sensor Wiring
Optional Remote
Control
(RCU–3) Wiring
