MultiDoc-It Imaging System 8

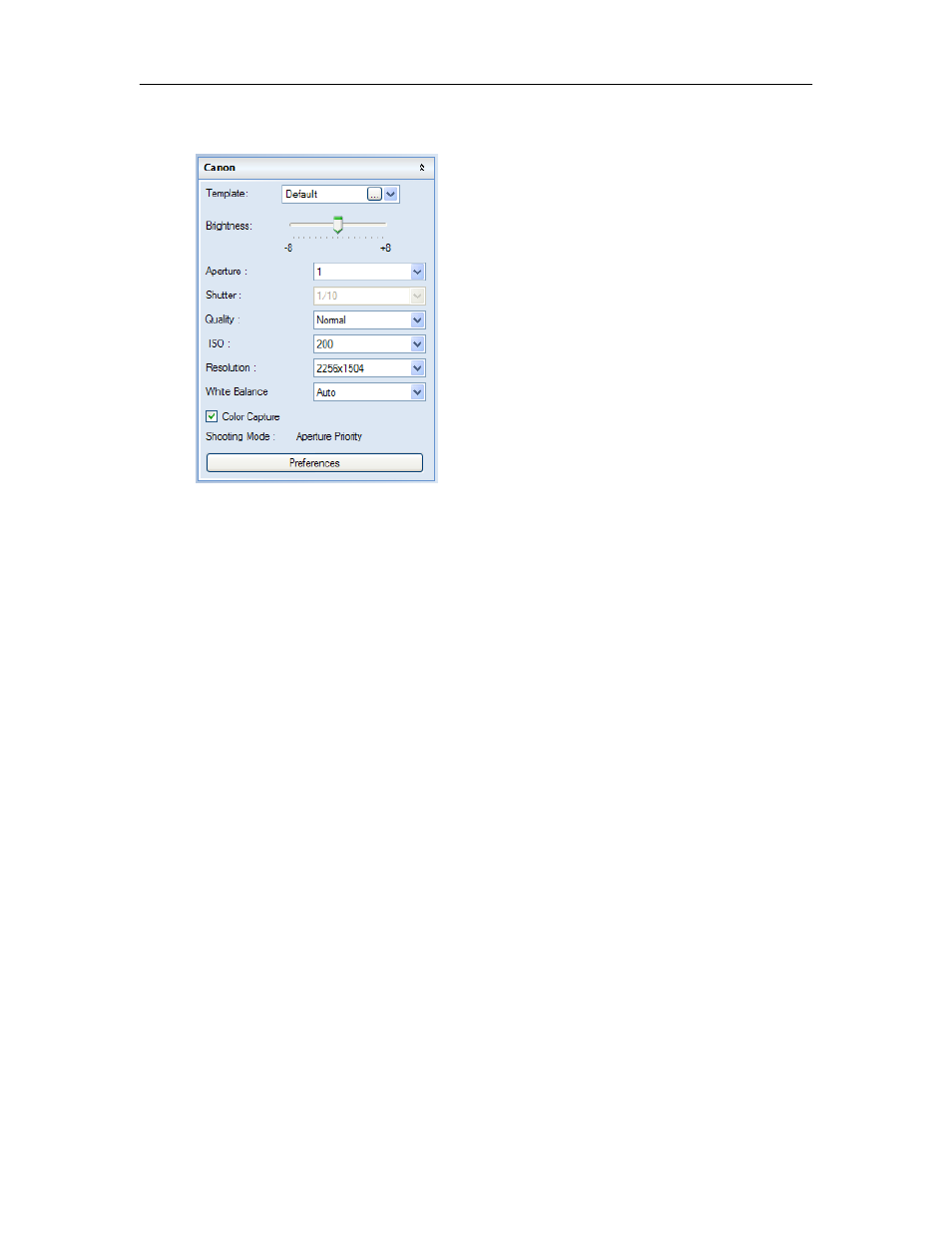

2. A new camera window appears with additional options:
Camera Control in Manual Mode
3. Select the desired options for an enhanced image. See the camera manual for detailed
descriptions of options.
4. Select Capture at the top of the software.
Overhead UV Lamps (Purchased Separately)
1. Move the UV Lamp power switch to the ON position.
2. Slide the UV Lamps into the lamp brackets inside the darkroom. Be sure the lamp power cords
are positioned toward the outlets located on back inside of the darkroom.
3. Run the lamp power cords over the camera mounting plate and plug into the outlets.
4. To use the lamps, the darkroom main power switch must to be in the ON position and the
overhead light switched to UV.
NOTE
: The UV Lamps do not receive power until the MultiDoc-It door is closed.
