MultiDoc-It Imaging System 5
CAUTION
: All UVP Transilluminators are powerful sources of UV radiation that will cause damage to
unprotected eyes and skin. Before operating any unit, be sure all personnel in the area are properly
protected. UV Blocking Eyewear should be worn as well.
Install Doc-ItLS Software
NOTE:
The following provides a brief instruction for installing the software. For additional instruction on
using the software, refer to the Doc-ItLS help files.
1. Insert the flash drive into an available USB port on the computer. The installation program
should automatically start. If the installation program fails to start, navigate to the flash drive
and double-click setup.exe to launch Doc-It.
2. Follow instructions from the Wizard screens as they appear, clicking Next, Accept or Finish
as appropriate.
3. If prompted to restart the computer, click No.
4. Restart the computer by choosing Restart from the Windows Start menu.
5. Double click onto the UVP icon on the desktop.
6. Activate the software by choosing On the fly activation if connected to the Internet. Complete
all the required information on the form and fill in the Serial Number located on the back of the
flash drive’s tin box. Click onto Get Activation No. and then click onto Activate when the
Activation Number appears in the box.
7. Close the software.
NOTE
: If not connected to the Internet, call technical services at (800) 452-6788 or (909) 946-3197 to
complete the activation process.
Connect the Camera
NOTE:
It is recommended to only connect the camera to the computer while the camera is unplugged.
1. Connect the USB cable from the
back of the MultiDoc-It to the
computer.
2. Connect the camera power cable
(red and black) from the back of the
MultiDoc-It to a power outlet (a surge
suppressor is recommended).
Connect to Doc-ItLS Software
1. Open the Doc-ItLS software. The software should automatically identify the camera. The camera
control window should be active and ready to capture images.

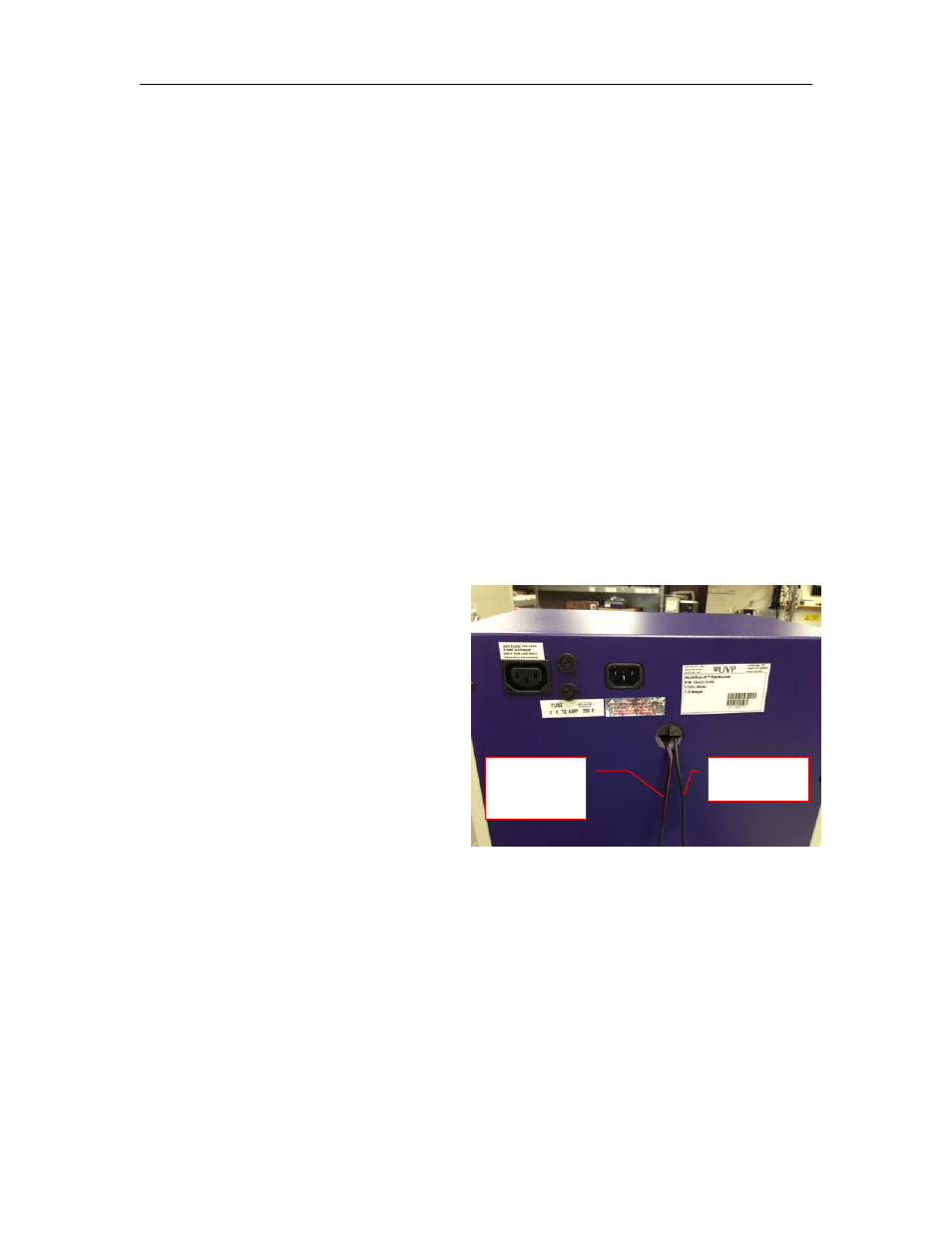

Camera
Power
Cable
Camera
USB Cable
