UVP BioLite User Manual
Page 8

Manual BioLite MultiSpectral Light Source
8

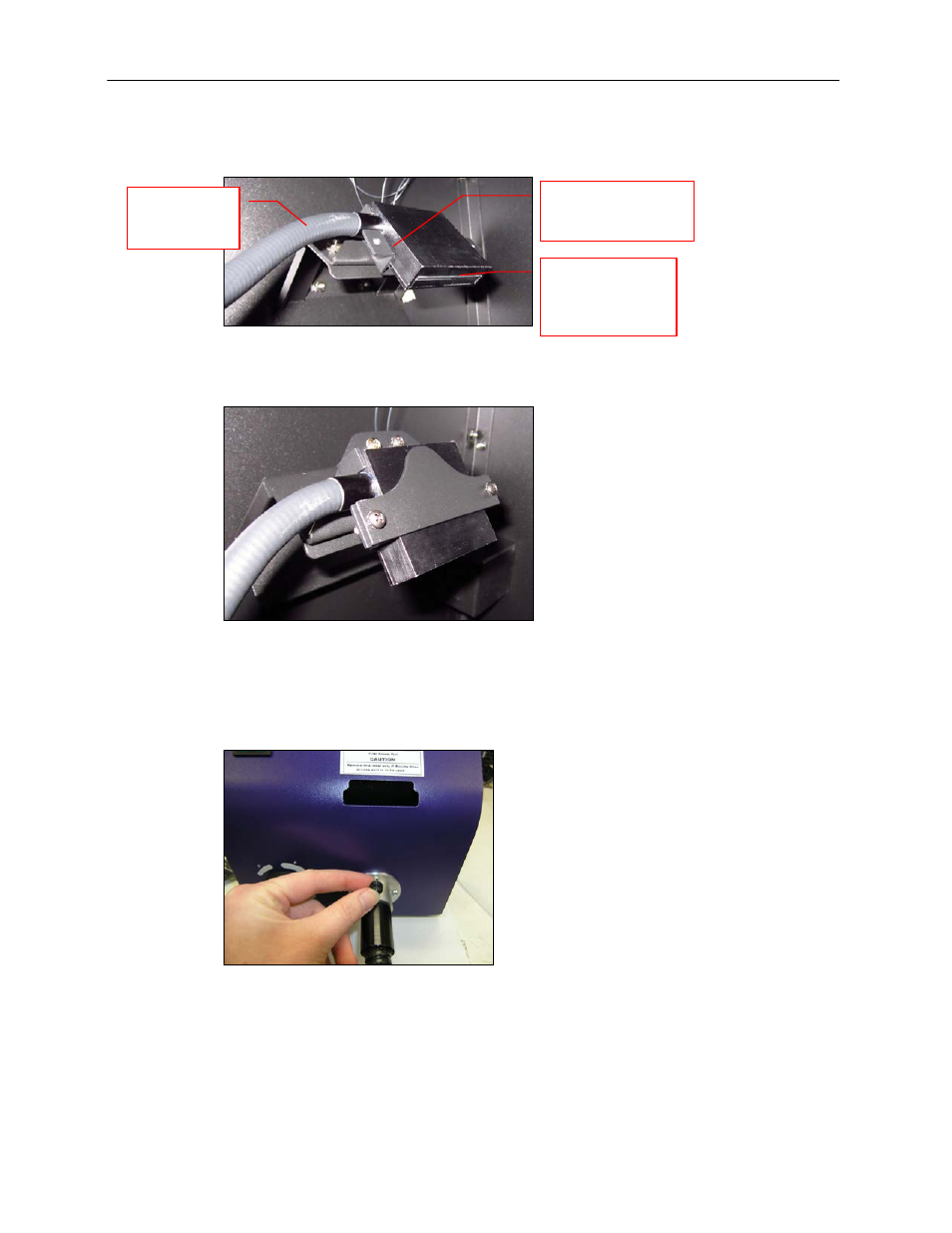

4. Position the light guide in the mounting bracket as shown below. Make sure the cable protruding
from the light guide faces toward the front of the darkroom (toward the darkroom door) and that the
light emitting portion of the light guide is facing toward the platform tray.
5. Attach the mounting bracket plate to the mounting bracket using two of the screws provided, as
shown below. Make sure the tab on the plate faces up.
6. Repeat the process for the other light guide within the darkroom.
7. Remove the rubber cap from the input side of the fiber optic trunk and Insert the fiber optic
receptacle into the round silver connector on the front of the BioLite.
8. Secure the fiber optic receptacle to the silver connector with the set screw on the BioLite.
Fiber Optic Light Table (Transilluminator) Installation
1. Remove one stopper at the left side of the darkroom.
2. If the imaging system already contains a transilluminator, unplug and remove the transilluminator.
3. Insert the fiber optic light table transilluminator in the imaging system.
Light emitting
portion of the light
guide is facing
platform tray
Cable faces
the front of
the darkroom
Light guide fits
snugly in mounting
bracket
