Manual BioLite MultiSpectral Light Source 6

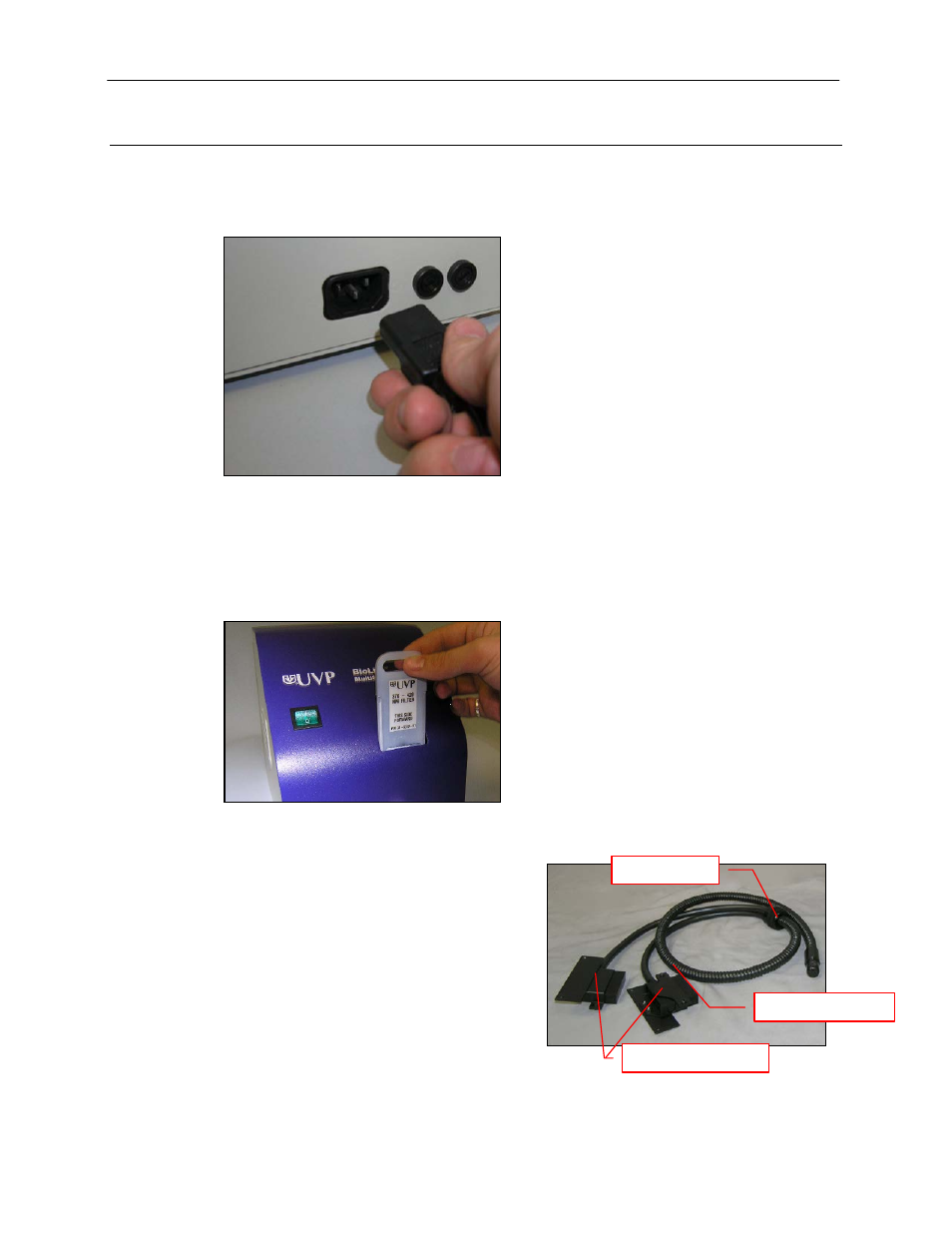

Setup Instructions
BioLite MultiSpectral Light Source Setup
1. Plug the power cord into the receptacle on the back of the unit and the other end to a power outlet.
2. Position the BioLIte to the left of the darkroom.
3. Insert the filter cartridge into the filter port.
NOTE: Filters and their cartridges are directional. Make sure that the label is facing forward.
Because of the intense light of the BioLite, only UVP-supplied, tempered interference filters should
be used.
Epi Light Guide Installation (BioSpectrum
®
)
1. Remove the epi light covers at the top of the
darkroom.
2. Remove one stopper at the left side of the
darkroom.
3. Thread the knurled (non-smooth side) of the fiber
optic cable from the inside of the darkroom
through the hole created by removing the stopper
until the large bulb separating the smooth and
rough side of the fiber optic cable can no longer
be pushed through the opening.
Epi Light Guides
Stopper
Fiber Optic Cable
