Manual BioLite MultiSpectral Light Source 12

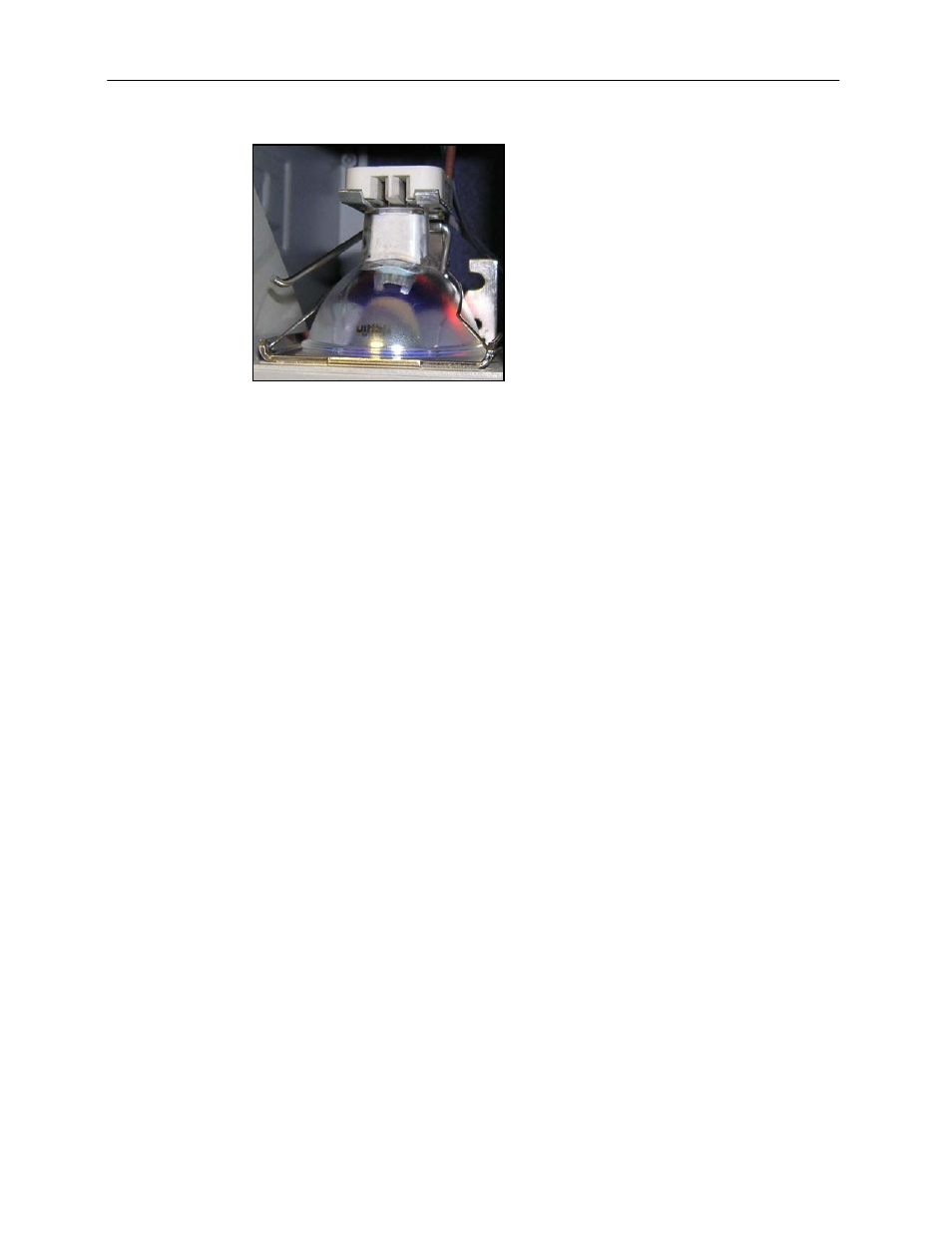

5. Insert the replacement EKE halogen 150 watt bulb, ensuring that it is fully seated.
6. Replace the cover and secure with the brass nut before plugging unit back in or turning it on.
Return Procedure
A Returned Goods Authorization (RGA) number must be obtained from UVP Customer Service before
returning any product. See “Technical Support” below for contact information.
Replacement Parts and Accessories
To order accessories or replacement parts for the BioLite MultiSpectral Light Source, contact UVP’s offices.
Part Description Part Number
Type EKE 150 Watt Halogen Bulb 34-0088-01
370 – 430 nm Filter (for BFP, CFP, Etc.)
38-0319-01
422 – 478 nm Filter (for GFP, Cy2, Etc.) 38-0319-02
500 - 680 nm Filter (for Cy 5.5) 38-0319-07
Blue Filter (to enhance red and yellow objects)
38-0319-03
Red Filter (darkens green and blue objects) 38-0319-04
Green Filter (increases for red or blue objects) 38-0319-05
Yellow Filter (safelight for photo resist materials) 38-0319-06
Other standard and custom filters are available for a variety of imaging applications. Contact UVP
or visit www.uvp.com for further information.
Troubleshooting
Bulb Does Not Illuminate
1. Recheck the main power cord connection to the BioLite unit.
2. Check the fuses located at the back of the unit next to the power port. A small flat-head screwdriver
or similar tool will be required. Turn the fuseholder cap counterclockwise and the fuse holder will
pop out. Inspect the thin wire within the glass fuse to see if there is a break in the wire. If so,
replace the fuse(s). If fuses are blowing repeatedly, contact UVP Technical Support for additional
troubleshooting.
3. The bulb may be out of position. Reseat the bulb to reestablish the electrical connection by
following the “Bulb Replacement” instruction earlier in this manual.
4. The bulb may be burned out. Follow the “Bulb Replacement” instruction earlier in this manual.
.
