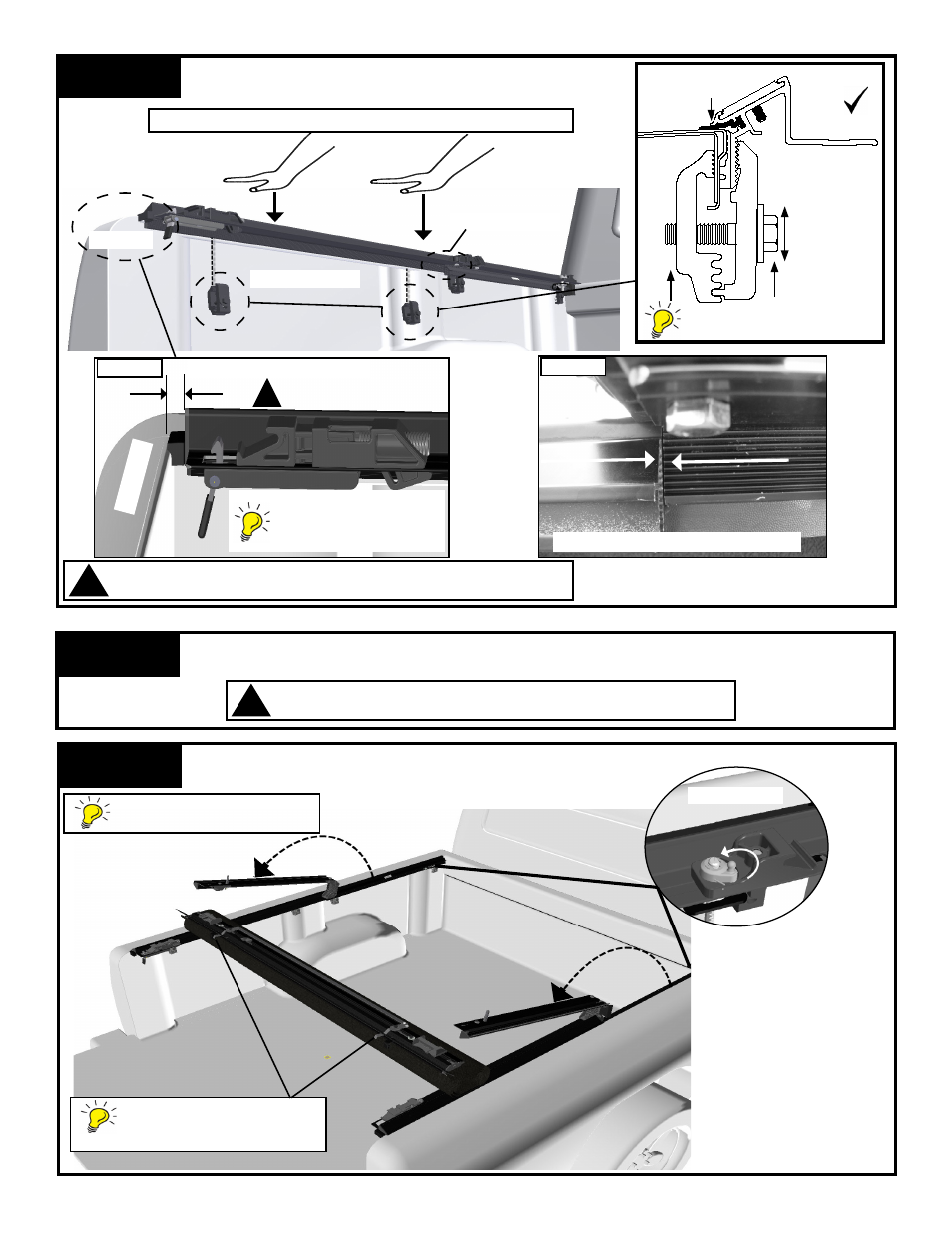

STEP 3-A

Position and install driver side rail assembly with

clamps, see note 1 and 2 for installation hints.

SEAL

COMPRESSED

ADJUSTABLE

CLAMP

FOR BEST CLAMPING MOUNT

CLAMP HIGH AS POSSIBLE

Driver’s Side

STEP 3-B

Repeat step 3-a to position and install passenger side rail assembly with

clamps, see notes 1 and 2 in step 3-A for installation hints.

Tighten clamps securely on side rails before driving vehicle.

WARNiNG

While clamping press down to compress side seal

End To End,

Must Be Flush

Note 2

3/8”

Driver’s Side Shown

Tailgate

if rear seal is not slightly

compressed then

reposition assemblies

rearward slightly.

Note 1

Tighten clamps securely on side rails before driving vehicle.

WARNiNG

STEP 4

Works best with tailgate

down as shown.

Attach cover assembly to the driver and passenger side rails as shown.

Correct if levers point to

the rear or toward the

tailgate.

To Release
