Titus Thermal T3SQ-4, IOM - Manual (Page 2)

For system balancing, the springs (A) must be
disconnected from the control disc (B) to allow the
control disc to go to full open. (See Figure 2)
After balancing, reconnect the springs to the control
disc. If the actuator arms are not connected to the
control disc the diffuser will not operate.
Ensure that each control disc spring (A) is attached
to both the control disc (B) and the lever arm (C)
before installing.
T3SQ-4-IOM-3.0 05-17-07
Figure 4. T
3
SQ-4 Operating Instruction Label
Note: This IOM is meant to demonstrate general dimensions of this product. The drawings on this IOM are not meant to detail every aspect of the product with exactness. Drawings are not to scale.
TITUS reserves the right to make changes without written notice.
Step 3
Step 4
Place the back pan into ceiling grid. Connect duct
work to back pan.
Step 2
Adjust room temperature:
Turn the blue ring assembly (D) to the desired
temperature indicated ( 66°F to 74°F)
To adjust the offset differential between heating
and cooling, turn the green tab (E) clockwise to
increase positive temperature offset and
counterclockwise to increase temperature offset in
a negative direction.
Step 5
Installation is completed by lining up the hooks on
the face plaque assembly with the corresponding
slot. The hooks are inserted and the face plate
assembly is rotated clockwise, and lowered so
that each hook is firmly in place. (See Figure 3)
Step 6
Minimum airflow can be adjusted from 30% of
maximum down to fully closed or 0% of maximum
by turning the grey flow adjustment ring (F)
clockwise.

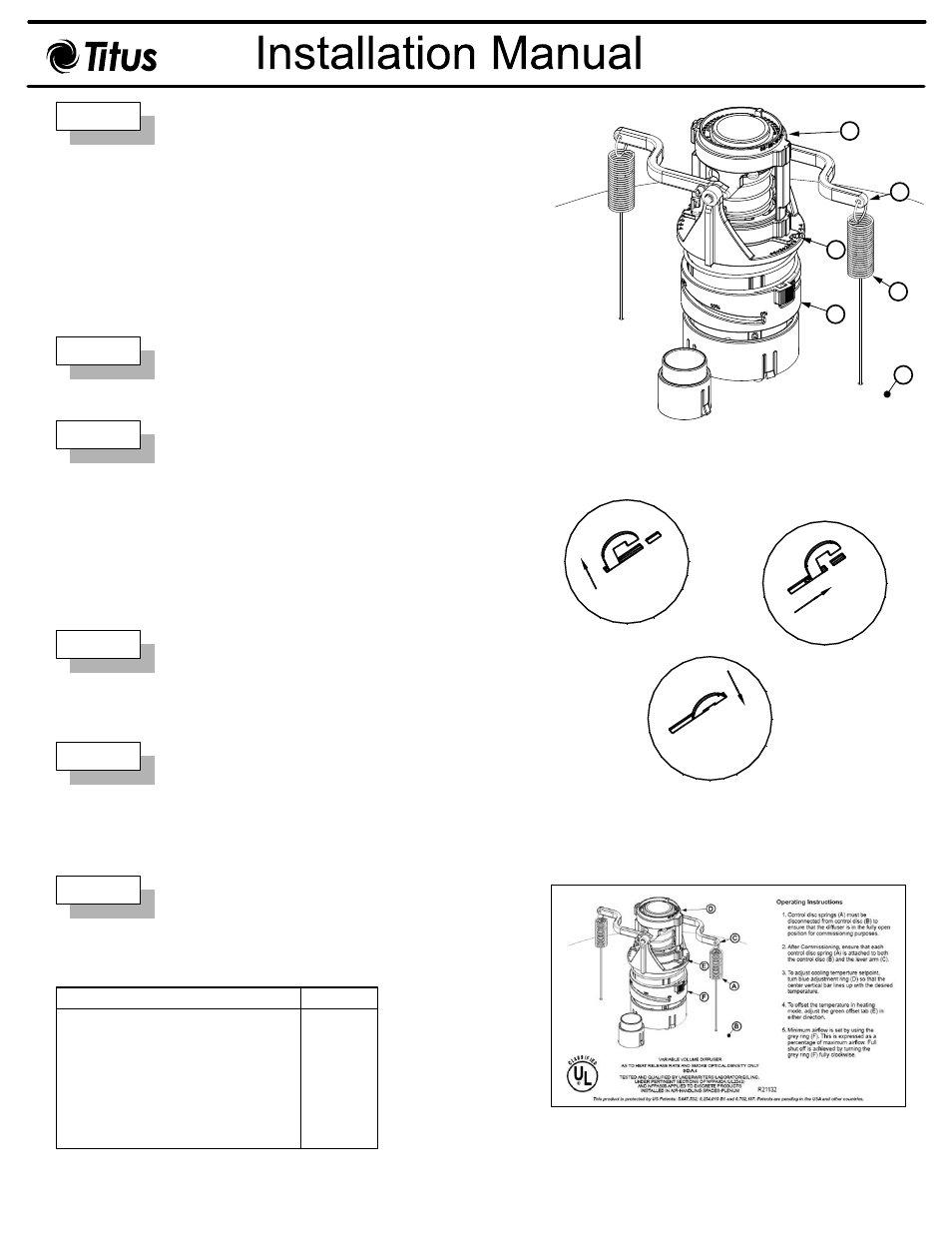

Figure 2. T
3
SQ Thermal Actuator and Control Disc Assembly
Figure 3. Face Plaque Installation
A simplified version of these operating instructions
can be found on the plaque of each diffuser.
(See Figure 4)
Note:
Thermal - T
3
SQ-4 Replacement Parts
Description Part Number
A
B
E
D
F
C
3.
1.
2.
Heating / Cooling Actuator
Venturi Tube
Venturi Tube Guide
Control Disc Sleeve
Control Disc
Thermal Induction Channel
Induction Cap
Plaque/Actuator/Control Disc Assy T3SQ-4
38203201
72540201
72540301
72540401
72540501
78200201
72549501
31763101
