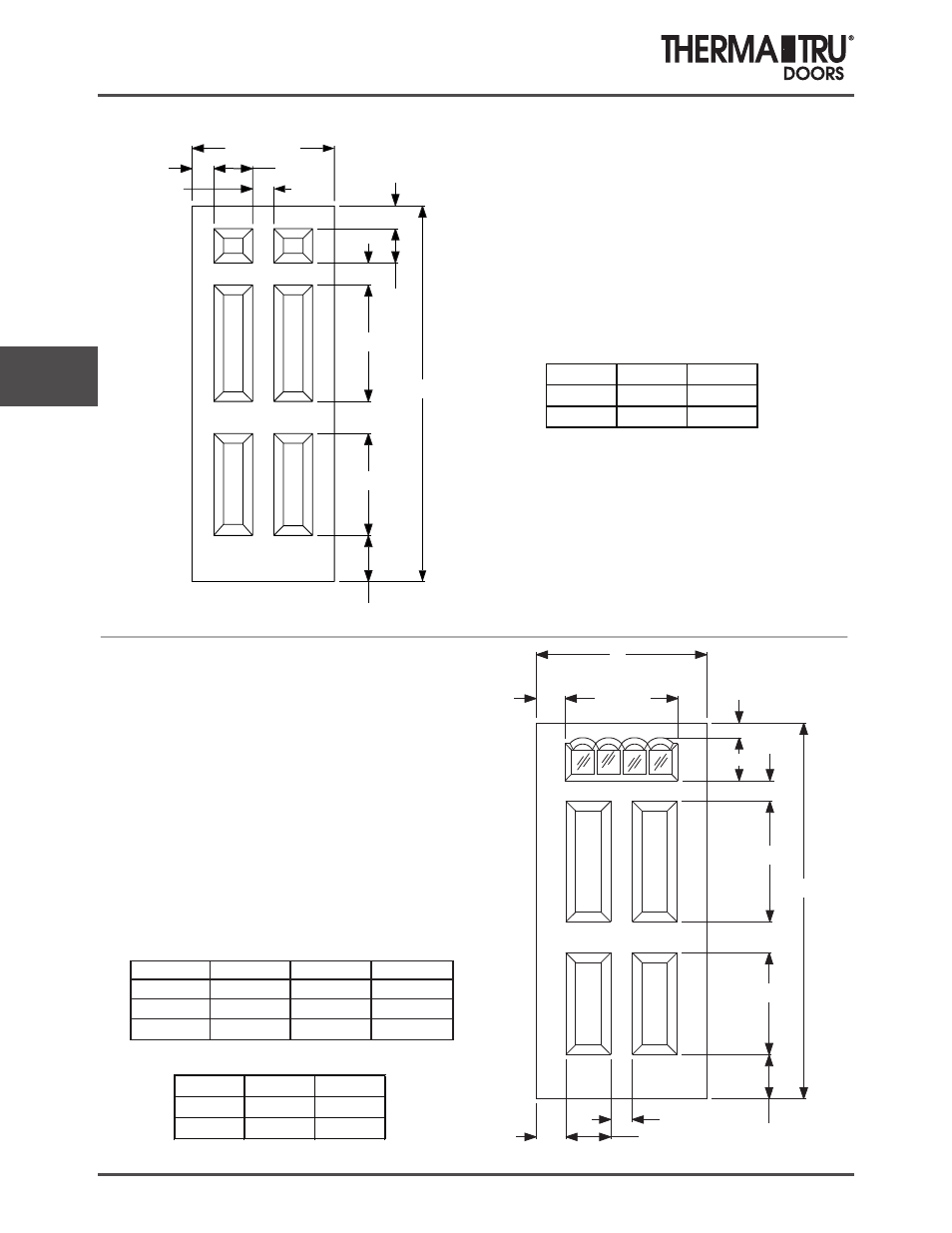

Steel
Door Panel
Dimensions
6.6 2014 (BOOK SIZE) Comp 6
6/8 Steel Entry Doors
A
B
C
23-7/8”
3”
9-3/32”
4-3/8”
D
25-1/2”
21-1/2”
E
4-1/2”
9-1/2”
A
4-15/32”
7-1/2”
B
21-1/2 ”
25-1/2”
4-1/2”
8-3/16”
29-31/32”
4-15/32”
4-9/16”
NOTE: 2/6 only.
Size A B C
2/8 31-31/32” 4-3/64” 4-15/64”
2/10 33-31/32” 5-3/64” 5-15/64”
3/0 35-31/32” 6-3/64” 6-15/64”
4 Lite Scallop 4 Panel Flush
(335, 2206C)
(Slab-HD210, HD254 & TS210, TS254)
6 Panel Flush
(Slab-HD210N & TS210N)
Daylight Opening: 5-1/8" x 21-1/8"
(98 sq.in.)
Height A B
6/8 79-1/4" 9-5/16"
7/0 83-1/4" 13-5/16"
Height D E
6/8 79-1/4" 9-5/16"
7/0 83-1/4" 13-5/16"
