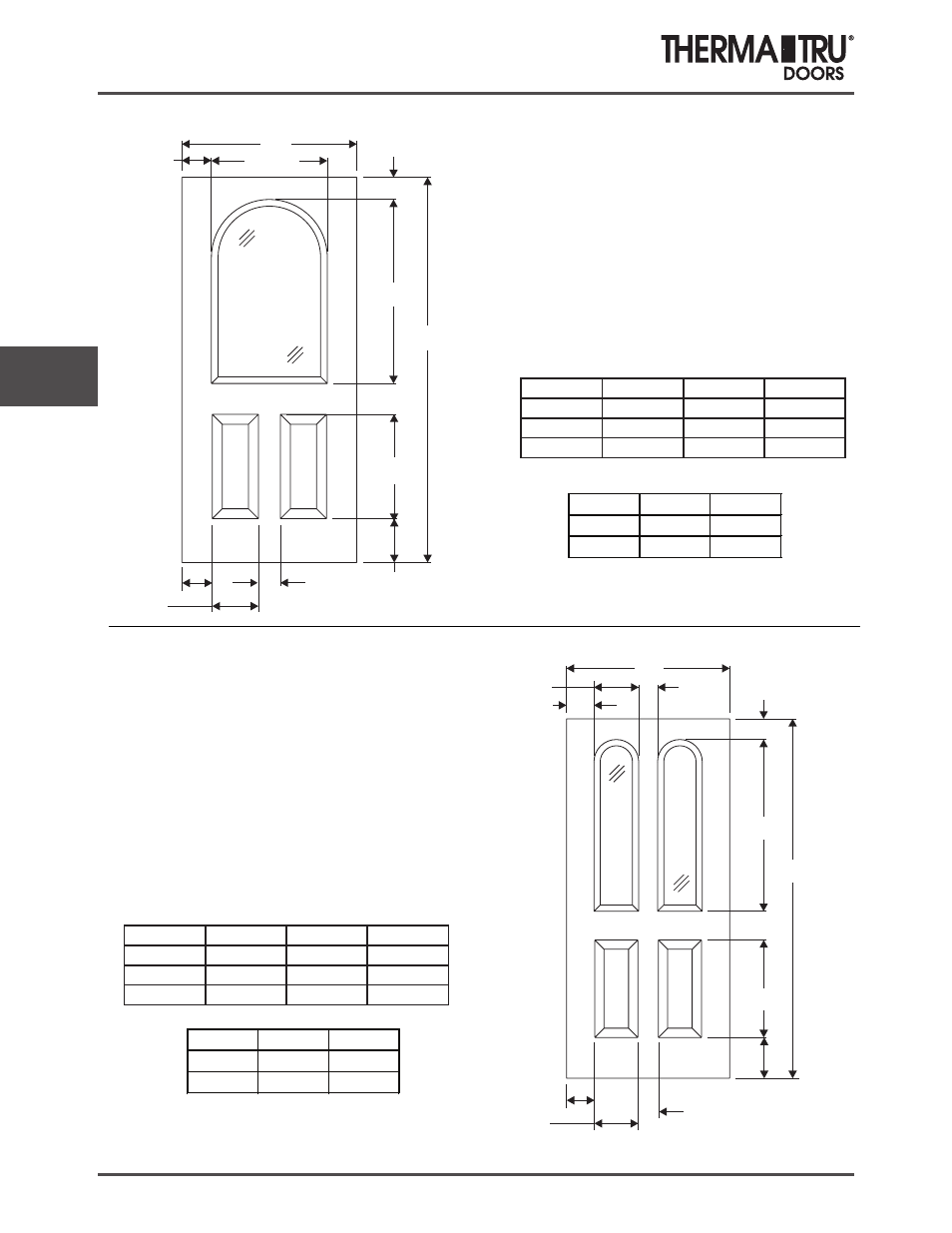

Steel
Door Panel
Dimensions
6.10 2014 (BOOK SIZE) Comp 6
6/8 Steel Entry Doors
A
B 23-7/8”
9-1/2”
4-1/2”
D
4-5/32”
37- 7/8”
21-1/2”
E
A
B
9-7/8” 4-1/8” 4-5/32”
37-7/8”
21-1/2”
E
D
C
9-1/2”
4-1/2”
C
Size A B C
2/8 31-31/32” 4-3/64” 4-15/64”
2/10 33-31/32” 5-3/64” 5-15/64”
3/0 35-31/32” 6-3/64” 6-15/64”
Size A B C
2/8 31-31/32” 4-3/64” 4-15/64”
2/10 33-31/32” 5-3/64” 5-15/64”
3/0 35-31/32” 6-3/64” 6-15/64”
Half Lite RT 2 Panel Flush
(150, 151, 2236R)
(Slab - HD254 & TS254)
Twin Half Lite RT 2 Panel Flush
(152, 153, 0836R)
(Slab - HD254 & TS254)
Daylight Opening: 21-1/8" x 35-1/8"
(694 sq.in.)
Height D E
6/8 79-1/4" 9-5/16"
7/0 83-1/4" 13-5/16"
Height D E
6/8 79-1/4" 9-5/16"
7/0 83-1/4" 13-5/16"
Daylight Opening: 7-1/8" x 35-1/8" (per lite)
(Total 490 sq.in.)
