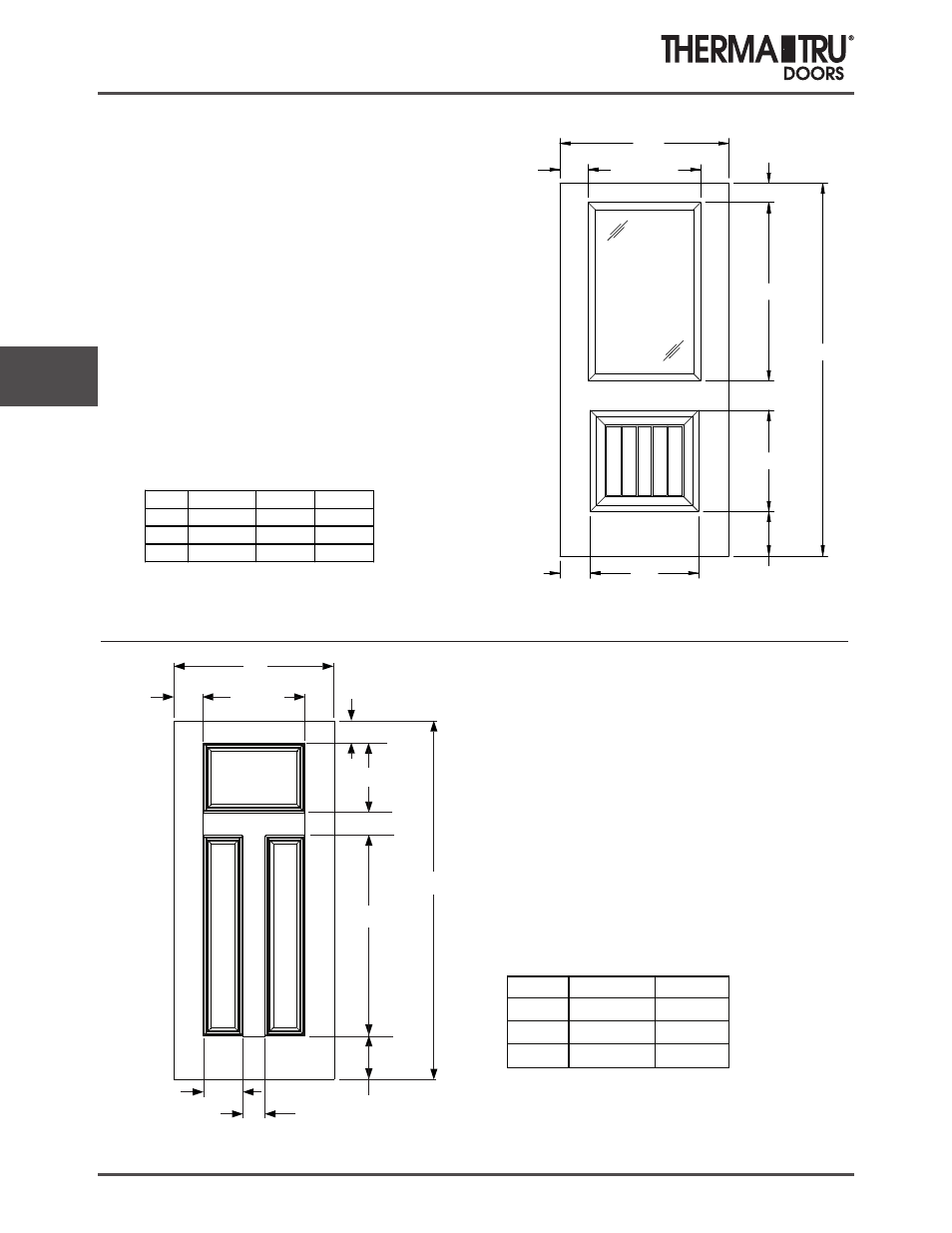

Steel
Door Panel
Dimensions
6.18 2014 (BOOK SIZE) Comp 6
6/8 Steel Entry Doors
A
B 22-7/8”
4-13/16”
79-1/4”
5-1/16”
44-3/8”
15-7/16”
9-9/16”
8-15/16”
5”
2 Panel Craftsman Flush
(Slab-HD203)
A
31-31/32”
34-31/32”
35-31/32”
Size
2/8
2/10
3/0
B
4-35/64”
5-35/64”
6-35/64”
21-1/2"
9-7/16"
79-1/4"
B 23"
A
Half Lite 1 Panel Plank Flush
(Glass - 104, 612, 137, 2236)
(Impact Glass - 104H, 612H, 904H)
(Slab - HD205)
Size A B C
2/8 31-13/16" 4-13/32" 4-1/32"
2/10 33-13/16" 5-13/32" 5-1/32"
3/0 35-13/16" 6-13/32" 6-1/32"
C 23-29/32"
37-29/32"
4-5/32"
Daylight Opening: 20-15/16" x 34-15/16"
(729 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
