Steel
Door Panel
Dimensions
Comp 6 2014 (BOOK SIZE) 6.3
6/8 Steel Entry Doors
A
B 21-31/32”
D
58-3/32”
C
E
*DR100 only
Size A B
2/8 31-31/32” 5”
2/10 33-31/32” 6”
3/0 35-31/32” 7”
*3/6 41-31/32” 10”
Size A
2/0 23-31/32”
2/4 27-31/32”
2/6 29-31/32”
2/8 31-31/32”
2/10 33-31/32”
3/0 35-31/32”
*3/6 41-31/32”
Height B
6/6 76-23/32”
6/8 79-1/4”
*7/0 83-1/4”

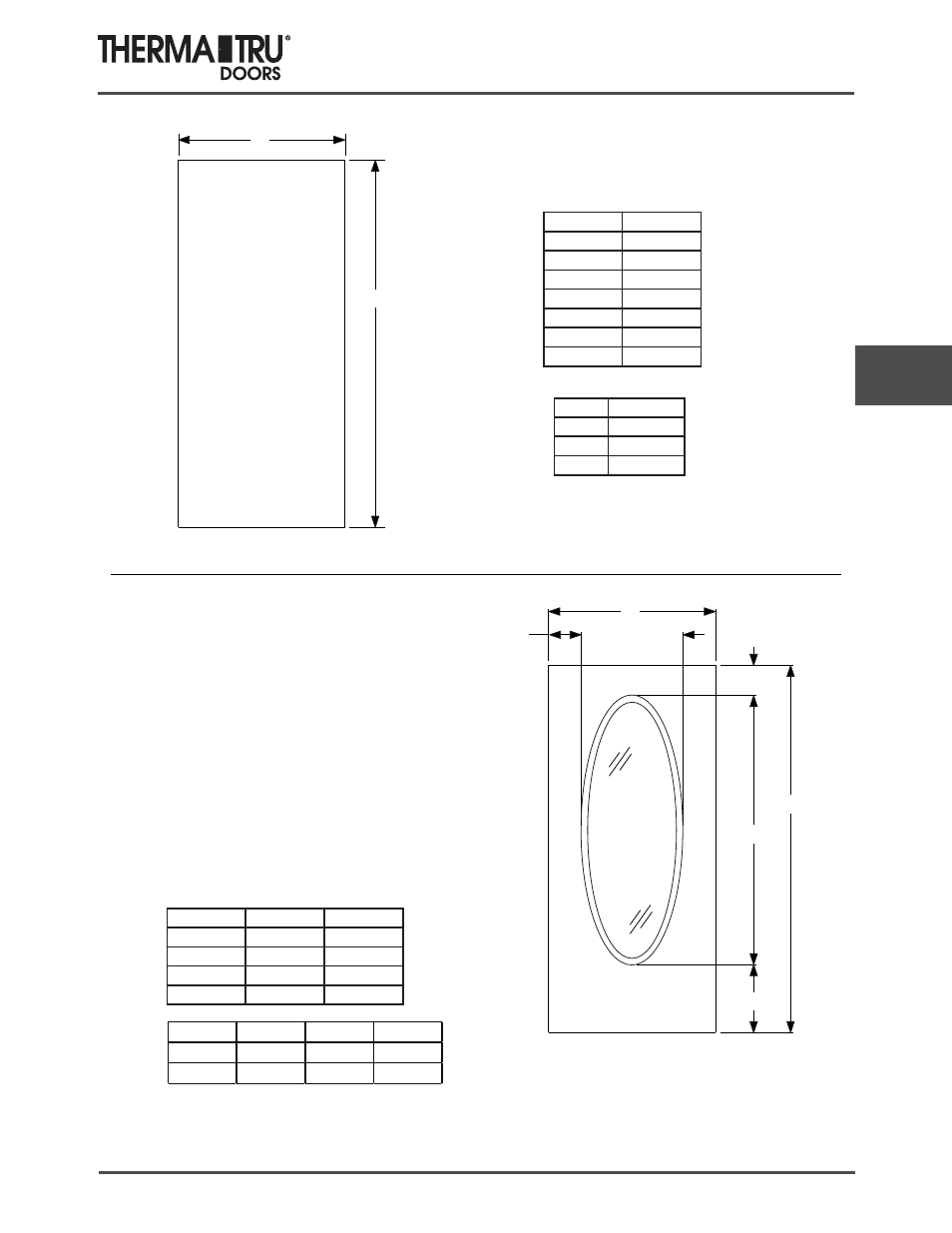

Flush Panel
(Slab-DR100 & TS100)
B
A
Full Oval Flush
(200, 2056)
(Slab-DR100 & TS100)
Height C D E
6/8 79-1/4" 6-1/2" 14-21/32"
*7/0 83-1/4" 9-3/8" 15-25/32"
*DR100 only
Daylight Opening: 19-7/32" x 55-11/32"
(846 sq.in.)
