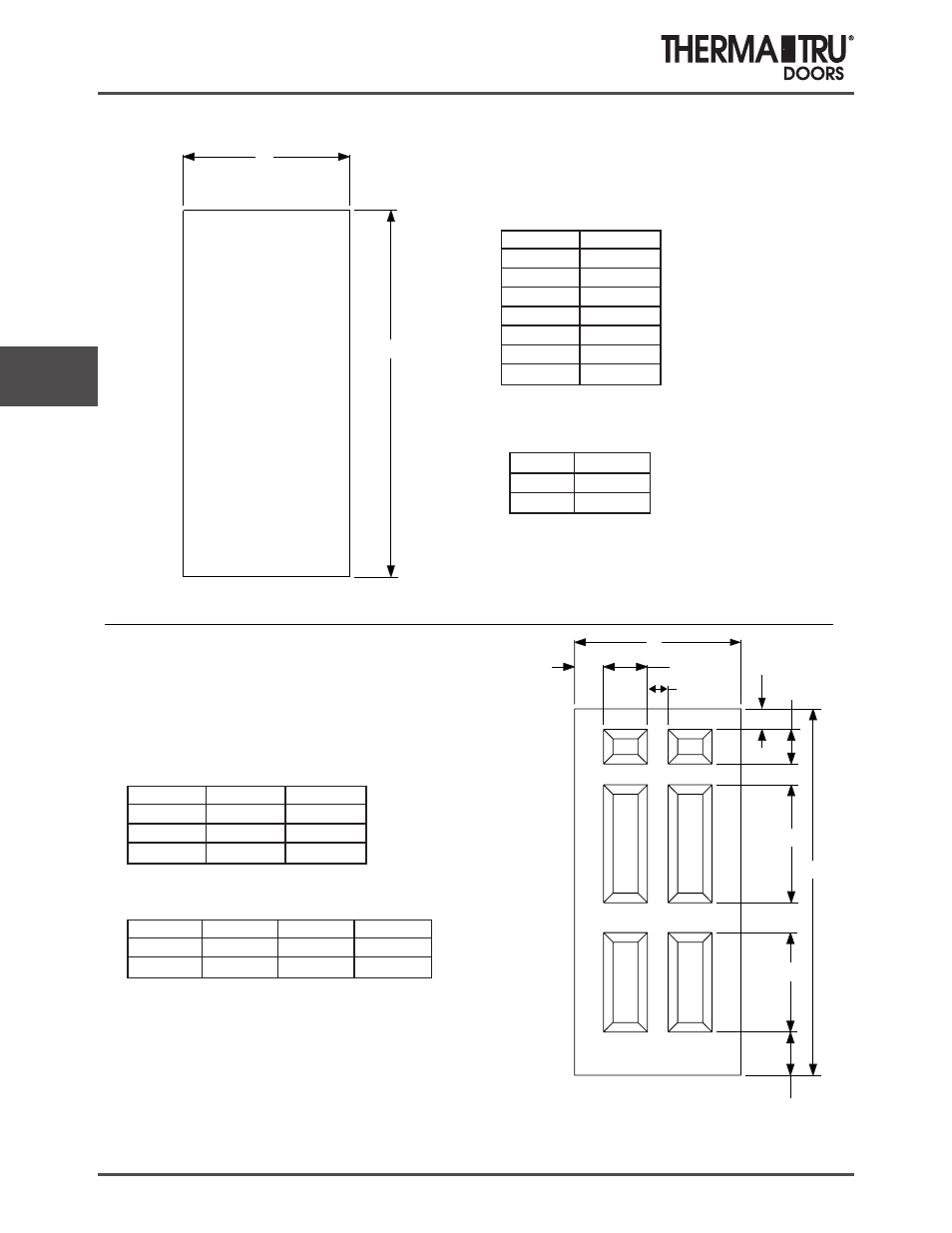

Steel
Door Panel
Dimensions
6.22 2014 (BOOK SIZE) Comp 6
6/8 Steel Edge Doors
A
B
A
B 9-1/16” C
D
25-7/16”
4-9/16”
6-1/2”
21-9/16”
E
7-1/16”
Size A
2/0 23-13/16”
2/4 27-13/16”
2/6 29-13/16”
2/8 31-13/16”
2/10 33-13/16”
3/0 35-13/16”
3/6 41-13/16”
B
6/8 79-1/4”
7/0 83-1/4”
Size A
2/8 31-13/16” 4-3/8”
2/10 33-13/16” 5-3/8”
3/0 35-13/16” 6-3/8”
Height C E
6/8 5-7/16” 79-1/4” 8-11/16”
7/0 7-7/16” 83-1/4” 10-11/16”
Flush Panel
(Slab - SES000)
6 Panel Flush
(Slab - SES210) 4-15/16”
Height
B
D
