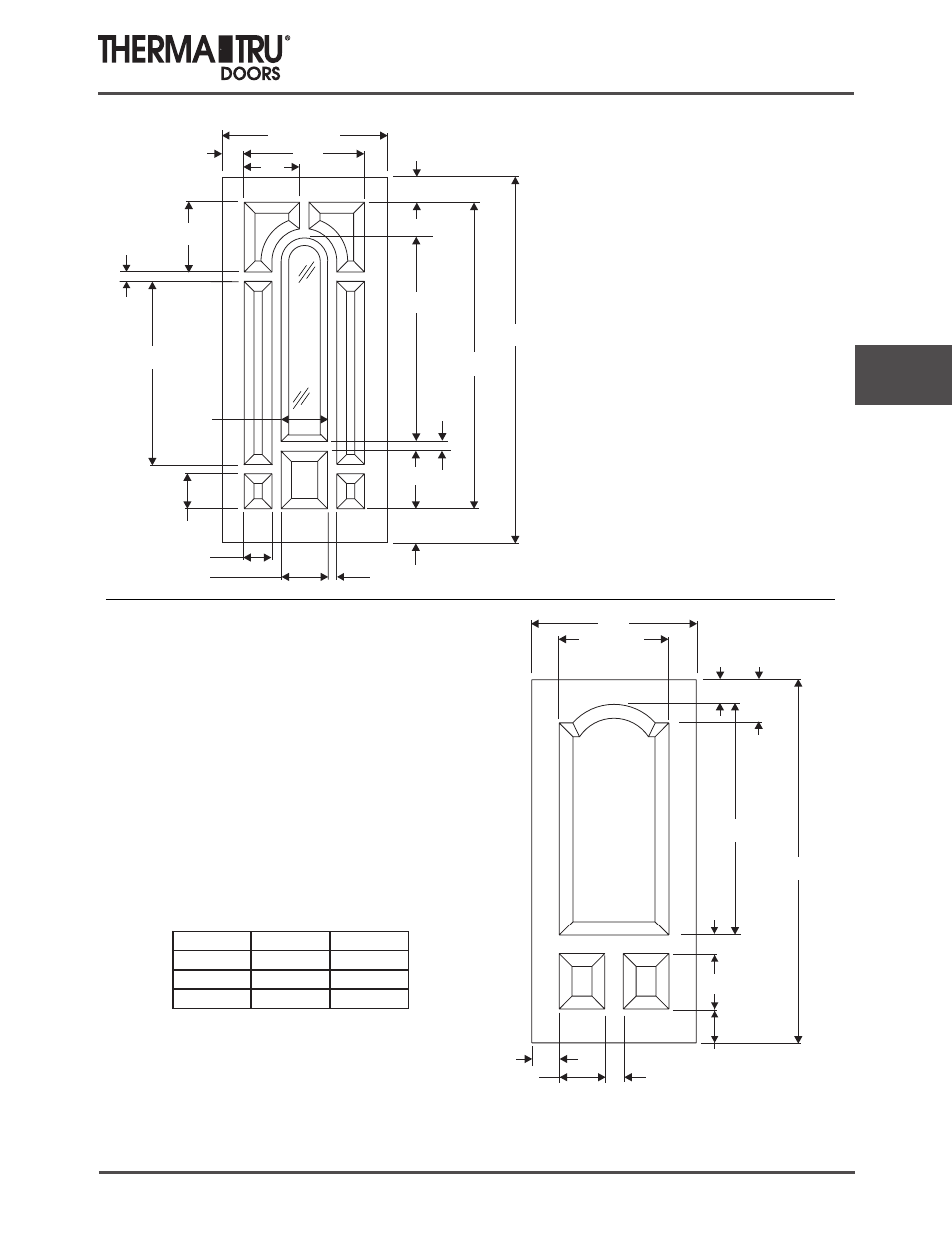

Therma-Tru COMP 6 Steel Door Panel Dimensions - Book Size - Manual (Page 13)

Steel
Door Panel
Dimensions
Comp 6 2014 (BOOK SIZE) 6.13
6/8 Steel Entry Doors
NOTE: 3/0 only.
4-63/64”
9”
15”
39-1/2”
7-1/2”
6”
12”
35-31/32”
26”
7-31/32”
5-9/32”
66”
79-1/4”
12”
2-15/16”
43-7/8”
9-7/8”
B
A
23-13/16”
5-9/32”
9-9/32”
50”
79-1/4”
4”
12”
7-31/32”
4” 9-29/32”
Size A B
2/8 31-31/32” 4-5/64”
2/10 33-31/32” 5-5/64”
3/0 35-31/32” 6-5/64”
Center Arch 7 Panel Flush
(0842)
(Slab - HD300)
3 Panel Scroll Top Flush
(Slab - HD750)
2-1/2” (2 places)
2”
Daylight Opening: 6-15/16" x 40-15/16"
(292 sq.in.)
