Therma-Tru COMP 6 Steel Door Panel Dimensions - Book Size - Manual (Page 24)

Steel
Door Panel
Dimensions
6.24 2014 (BOOK SIZE) Comp 6
6/8 Steel Edge Doors
A
23-1/8”
C
48”
D
4-1/2”
13”
E
B
9-1/8”
B 4-7/8”
Size A
2/8 31-13/16” 4-11/32”
2/10 33-13/16” 5-11/32”
3/0 35-13/16” 6-11/32”
Height C E
6/8 5-5/16” 79-1/4” 8-7/16”
7/0 7-5/16” 83-1/4” 10-7/16”
A
B 23”
C
D
6-1/2”
21-1/2”
37”
E
Size A
2/8 31-13/16” 4-13/32”
2/10 33-13/16” 5-13/32”
3/0 35-13/16” 6-13/32”
Height C E
6/8 5-9/16” 79-1/4” 8-11/16”
7/0 7-9/16” 83-1/4” 10-11/16”

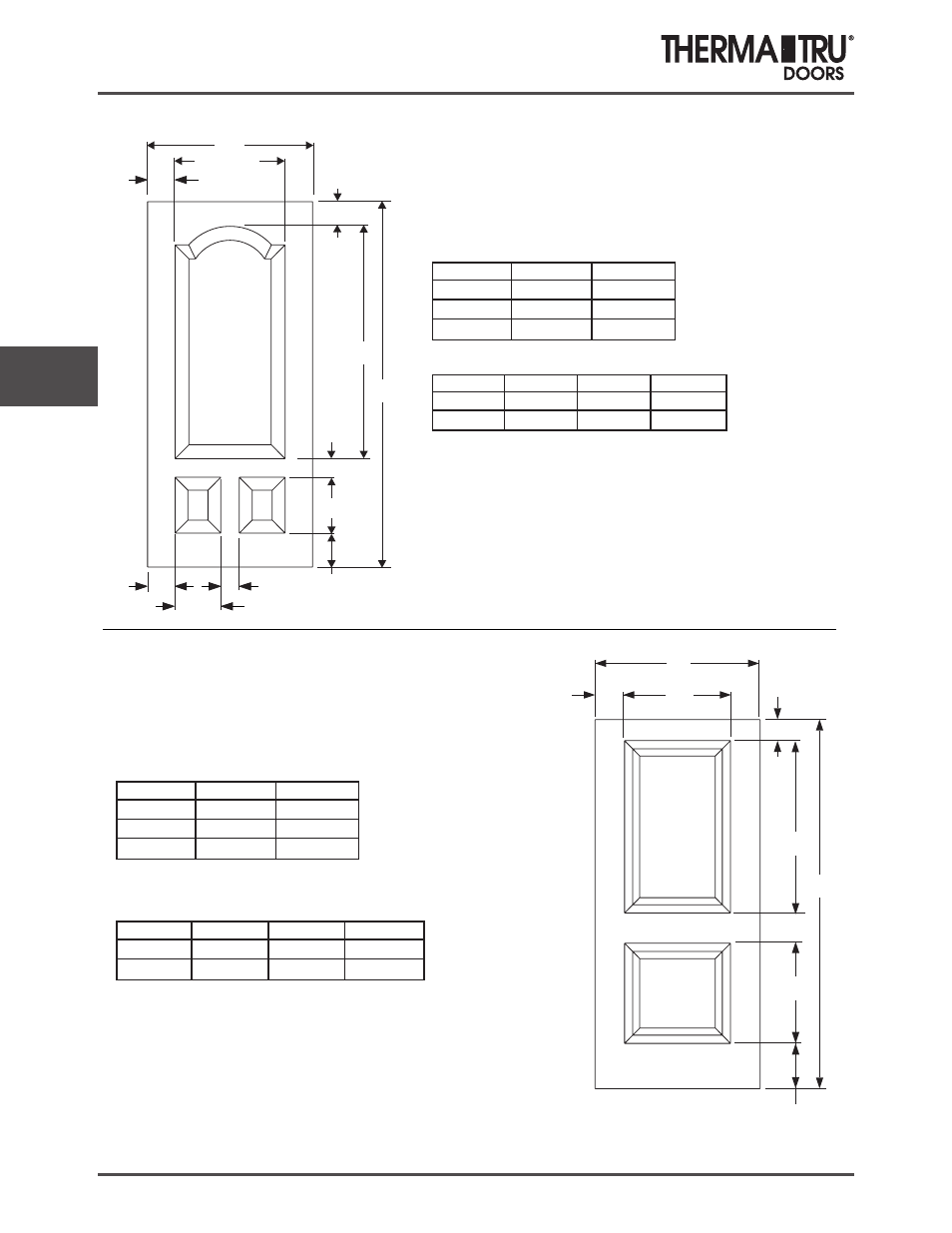

3 Panel Scroll Top Flush
(Slab - SES750)
2 Panel Square Top Flush
(Slab - SES200)
B
D
B
D
