Mounting plate
Power socket
Terminal Block
Cord Gland
Cable Tie Downs
Customers are required to install conduit for Ethernet. Conduit should be suitable for the
application’s environment and wet applications.
Customer Supplied Items
Customers are required to provide their own mounting hardware. TerraWave recommends
3/8 inch fasteners, washers, lock washers and nuts. See figure 2.
(Figure 2)
Drainage
The TWSD16128PHC-UL is supplied with a drain hole located on the bottom of the unit. The
drain hole will allow any water build-up or condensation to drain from the unit. Never block
the drainage hole. Refer to Figure 3 below.
CAUTION: To prevent the risk of electric shock, always mount the unit with the drain hole
facing down and the unit level.
Do not mount anything to the bottom of the enclosure.

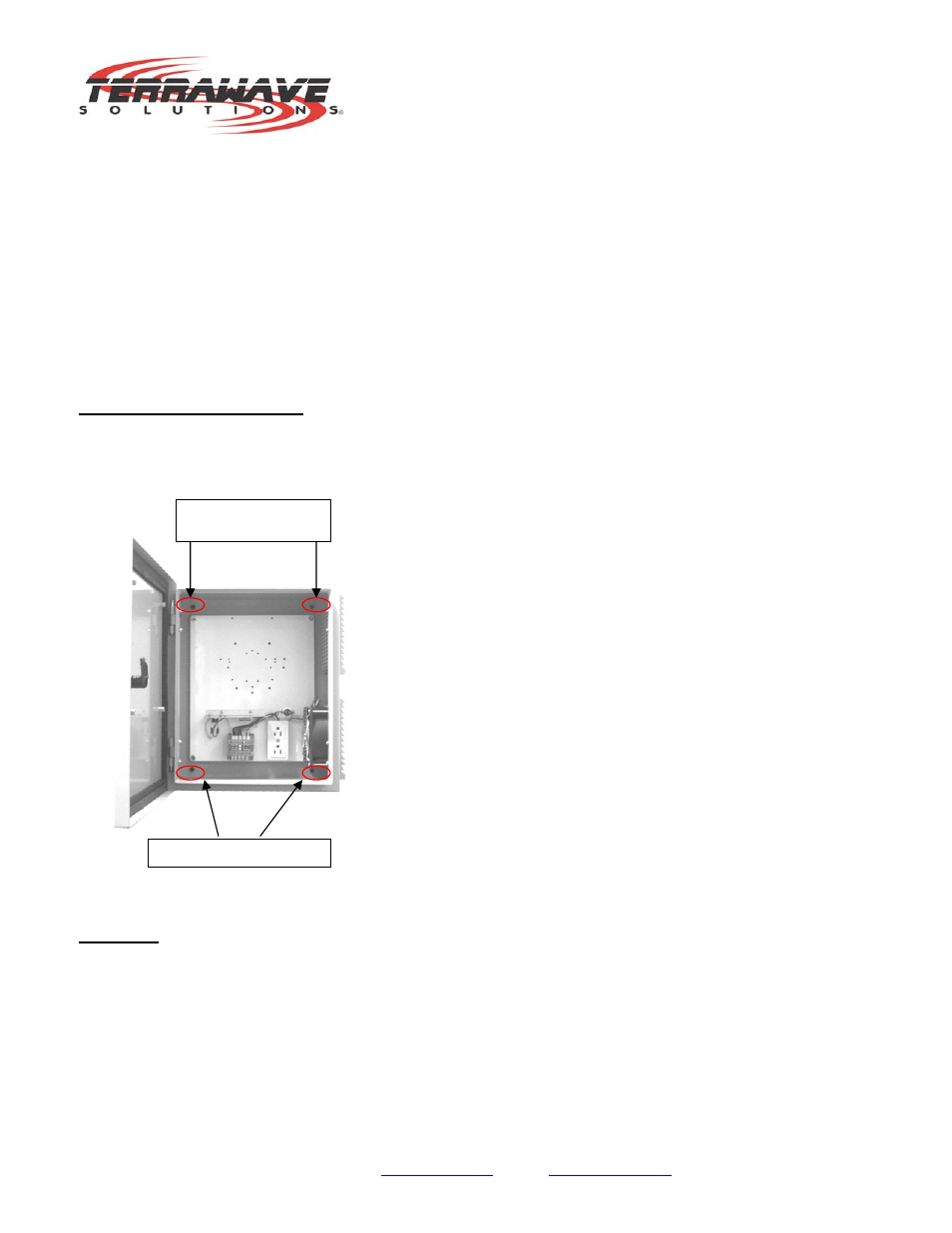

Mounting Holes / Plugs
Mounting Holes / Plugs
