Installation Instructions
Installation Environment
The TWSD16128PHC-UL is intended for both indoor and outdoor use.
Maximum internal ambient is 45 Degrees Celsius.
Always mount the enclosure with the drain hole facing down (figure 1). Failure to do so could
cause the unit to fill with water; creating hazardous conditions and equipment damage.

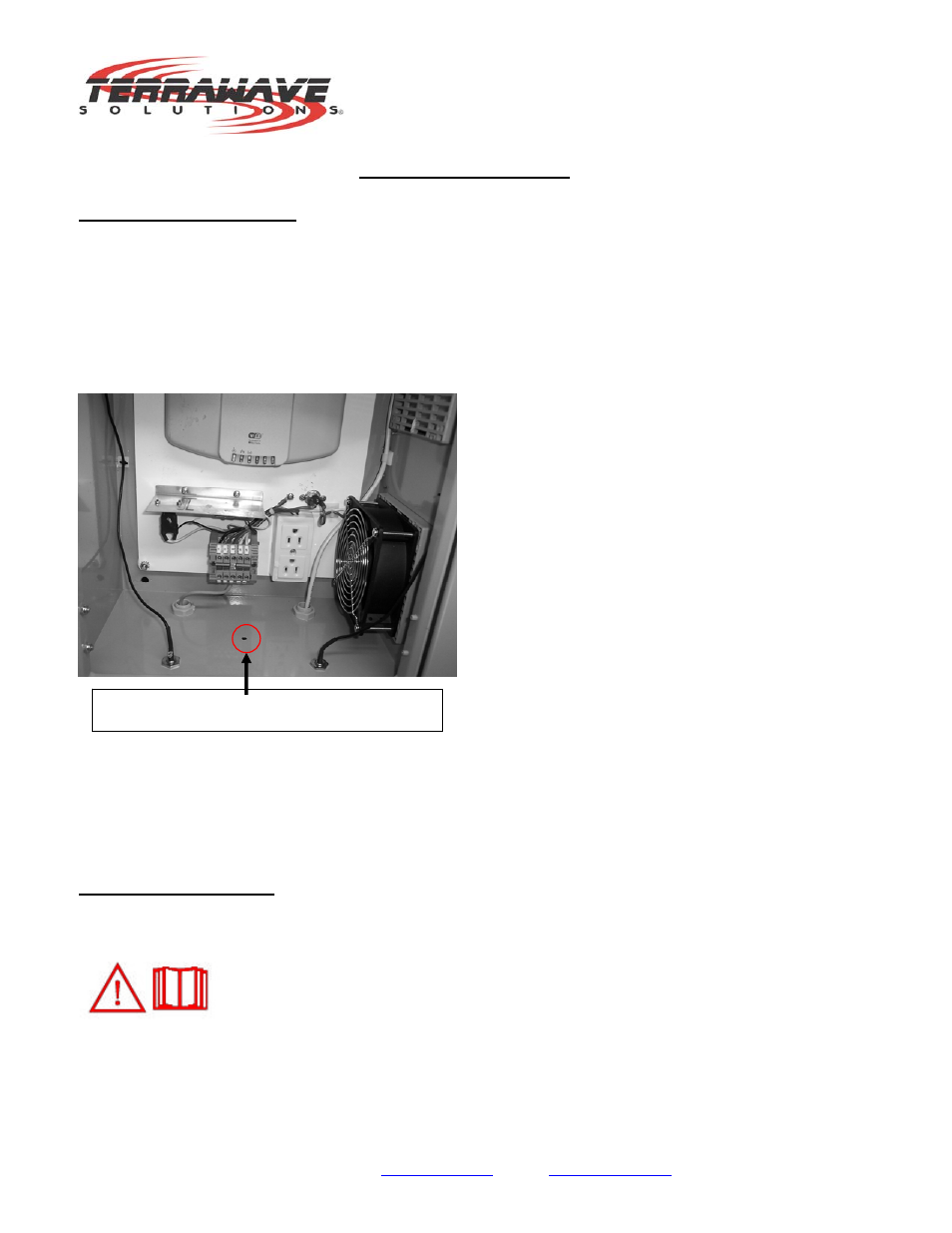

(Figure 1)
WARNING: To prevent the risk of electric shock and equipment damage, disconnect any
and all power supplies to the enclosure before installing, maintaining or trouble shooting this
product or any products inside the enclosure.
Included Components
The TWSD16128PHC-UL consists of the following components:
NEMA 4 Plug
Cooling Thermostat
Heating Thermostat
Heater
Cooling Fan
Drain Hole on Bottom of Enclosure
