INSTALLATION

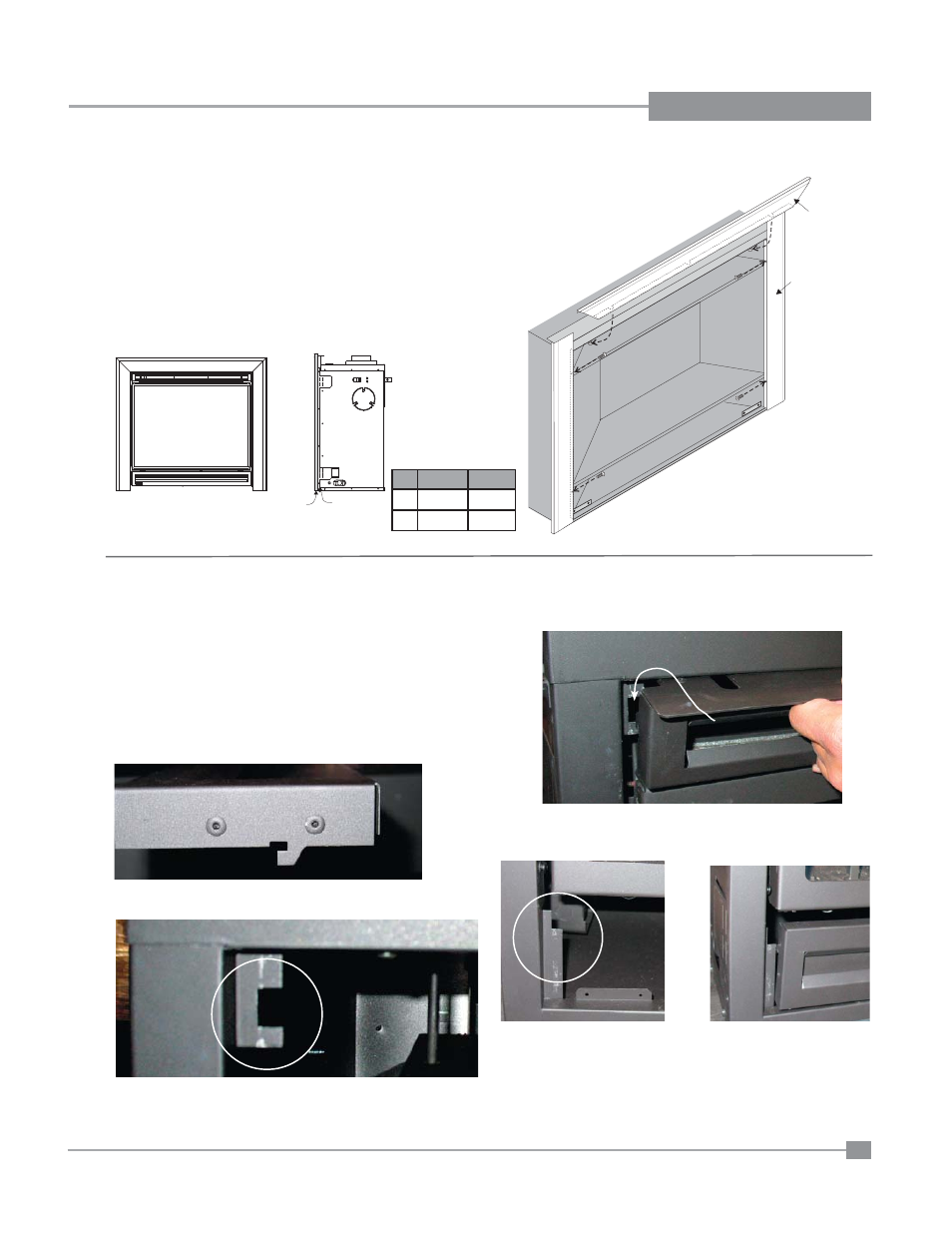

Finishing
Trim Top
Finishing
Trim Side
NOTE: Install the Finishing Trim prior to installing the Flush Louvers.
1) Install the Finishing Trim sides as shown in the diagram; line up the holes in the
side trim with the holes in the fi rebox side.
2) Secure with 2 screws per side.
3) Loosen the 2 screws in the top inside edge of the fi rebox.
4) Slide the Finishing Trim Top over the Side Trim pieces and fi t the
bottom bracket slots over the screws. Tighten the 2 screws to
secure in place.
Finishing Trim Edge of Unit
B41XT B36XT
W 43-3/8" 40-1/2"
H 37-5/8" 35-3/4"
OPTIONAL FINISHING TRIM INSTALLATION
FLUSH LOUVERS AND FLUSH PANEL INSTALLATION
To install the top and bottom louvers or fl ush panels:
1) Locate the tabs on louvers/fl ush panels.
2) Line up the tabs on louvers/fl ush panels with the brackets on the
unit.
3) Hook the tabs up over the brackets to attach.
Tabs on Louver/Flush Panel
Bracket on unit for upper
Louver/Flush Panel
Bracket on unit for lower
Louver/Flush Panel
Installation of upper
Louver/Flush Panel
Installation of lower
Louver/Flush Panel
