MAINTENANCE

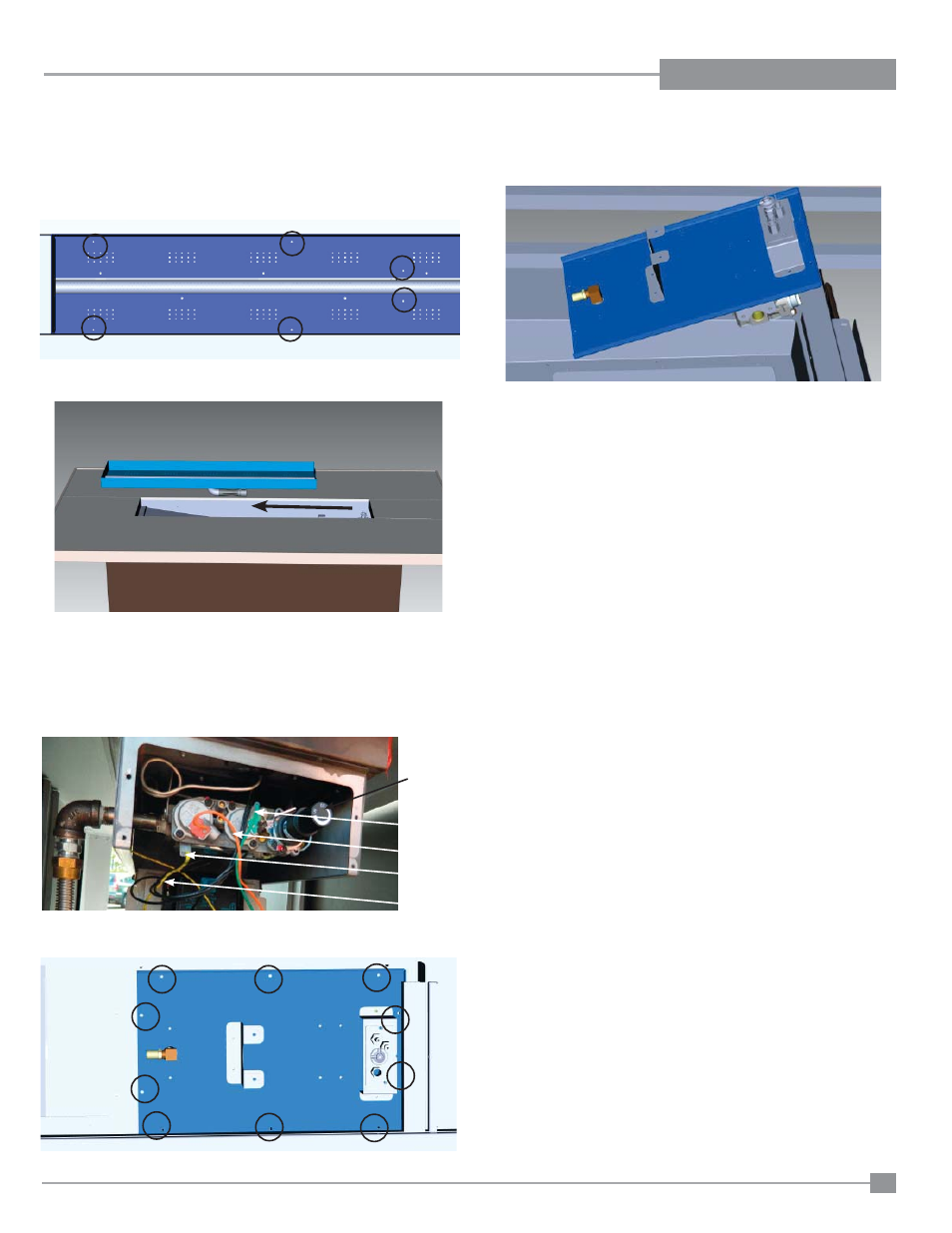

VALVE ASSEMBLY REPLACEMENT
Turn the unit off and allow to cool to room temperature.
1) Remove burner buy removing 6 screws in locations shown below.
2) Slide the burner to the left and lift out.
7) Remove 10 screws in locations shown below to remove valve tray.
8) Manuover valve assembly up and out.
9) Replace gasket if required.
10) Replace with new valve assembly.
11) Install Hi/Lo extension knob removed in step 6.
12) Reverse step 6-1 to reinstall.
3) Turn off gas supply and remove fl ex connection at valve.
4) Remove orange EV1 wire connected to the gas valve.
5) Remove green EV2 wire connected to the gas valve.
6) Remove HI/LO extension knob.
EV1
EV2
Hi/Lo
Extension
ground
Flame
sensor
