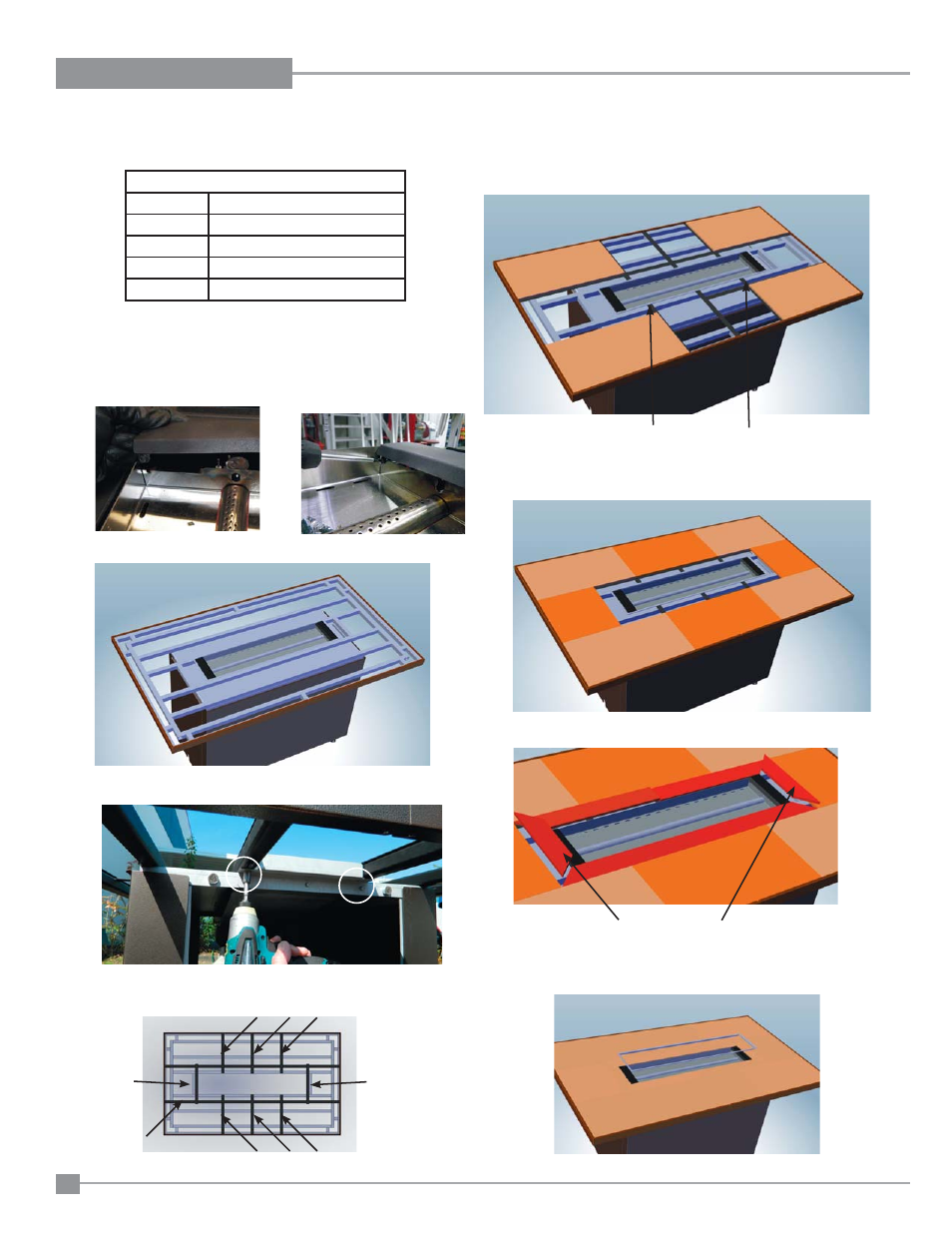

TABLE TOP INSTALLATION
(FOR ISLAND AND COCKTAIL UNITS ONLY)
( )
2) Place table top frame on top of unit - fi nished edge with return face up.
3) Line up holes from table top frame with holes on unit - secure with 2
screws at each end - locations shown below
5) Install tiles - starting with 4 corner tiles.
4) Place the 10 fi ller brackets on the table top as shown - before installing
tiles.
NOTE: Filler brackets are used to fi ll the gaps between each tile.
6) With 4 corner tiles are in place - install center tiles.
7) Install - 4 smaller inner tiles. Install 2 end small inner tiles to com-
plete tile installation.
8) With all tiles installed - install inner frame to fi nish installation.
NOTE: TAKE CARE WHEN HANDLING AND INSTALLING TILES.
TILES TO FREE FLOAT _ DO NOT GLUE TILES TO TABLE TOP.
Table Top Components.
8 Tiles
6 Tiles (small inner)
10 Filler Brackets.
1 Table Top Frame
1 Inner frame
1) Install the end caps (found in the manual pack) at each end and secure
with 2 phillips screws found in manual pack.
Install small inner end tiles last
Note: Correct position of fi ller
brackets.
