Hampton® H35-2 Direct Vent Freestanding Gas Stove

21

INSTALLATION

Review the following sequence of instructions which
are typical of most installations. The sequence may
vary depending on wall thickness. See "Exterior
Vent Terminal Locations" to "Venting Arrange-
ments" section for vent location and clearance
dimensions, and the "Vent Restrictor Position"
section to set the Vent Restrictor to the cor-
rect position.

1) Set the unit in its desired location. Check to

determine if wall studs will be in the way of the
venting system, adjust location until all clear-
ances are met and there are no obstructions.

Note: A 1-1/2"(38mm) clearance around the

outer pipe must be maintained except
that only a 1" (25mm) clearance is
needed at the termination end.

IMPORTANT:
Do not locate termination hood where
excessive snow or ice buildup may
occur. Be sure to check vent termina-
tion area after snow falls, and clear to
prevent accidental blockage of vent-
ing system. When using snow blow-
ers, make sure snow is not directed
towards vent termination area.

b) Install wall thimbles on both interior and

exterior wall with 4 wood screws (#8 x
1") per thimble.

c) Attach the 2 piece adjustable pipe section

to the vent terminal and slide into position
from the exterior. The larger diameter
end of the adjustable pipe goes to the
vent terminal.

d) Install the 90

o

elbow onto the adjustable

pipe to determine the vertical centerline.

Note: if the centerline cannot be met,
the adjustable sections will have to
be cut.

e) Cut the 4 ft. section of rigid pipe to length.

Attach the 45

o

elbow to the rigid pipe,

and ensure that the pipe length when cut
(with the 45

o

elbow) will seat onto both the

starter collar and the 90

o

elbow. Crimped

section of rigid pipe seats into the 90

o

elbow. Only cut the uncrimped side of
pipe.

Dismantle all pipe sections including vent
terminal.

2) Assemble

a

trial fi t to determine the vertical

center-line for the vent termination.

a) Cut a 9-1/2" x 9-1/2" (241mm x 241 mm)

square hole on both the interior and exterior
wall.

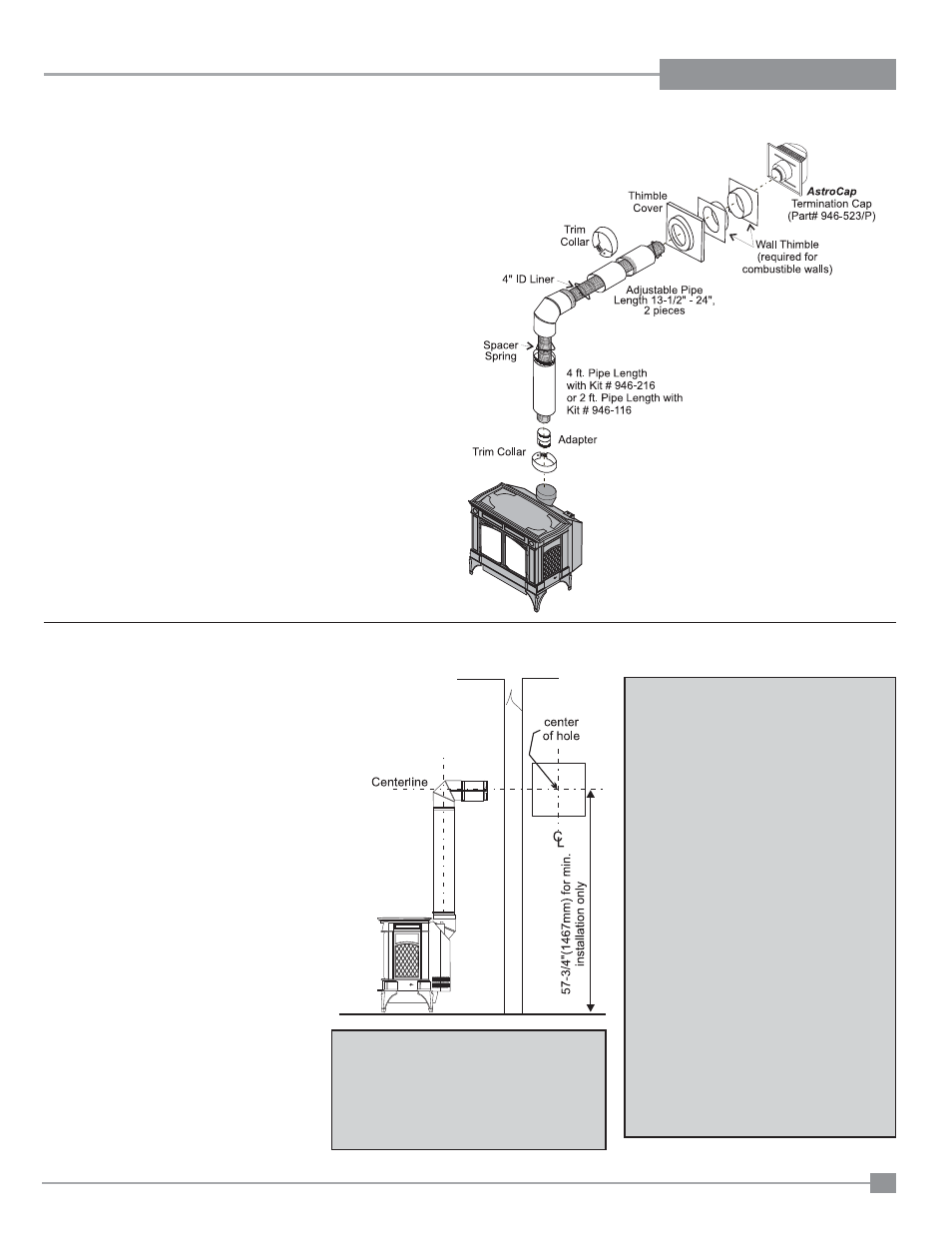

DV STOVE HORIZONTAL TERMINATION VENT KIT

DV 2 ft. Stove Vent Kit (Part # 946-116) and DV 4 ft. Stove Vent Kit (Part #946-216) includes all the parts
needed to install the H35 Direct Vent unit with minimum horizontal and vertical vent dimensions. For installations
that require longer vertical and/or horizontal vents use the Dura-Vent system as shown in the "Dura-Vent
Termination Kit" and "Dura-Vent Venting Components" sections.

Qty.

Description

1)

1

Rigid Pipe Section (Kit # 946-116: 2 ft. (1.2m) length,

Kit # 946-216: 4 ft. (1.2m) length), 6-1/2" (165mm)

inside

diameter

2)

1

Flex Liner, compressed aluminium 2 ply liner, 4" (102mm)

inside

diameter

3) 4

Spring

Spacers

4)

1

90 deg. Elbow

5)

1

Adjustable pipe section 13-1/2" to 24" (343mm x 610mm), 2 pcs.

6) 1

Thimble

Cover

7) 1

Wall Thimble (2 pcs.)

8) 1

Adaptor

9) 1

AstroCap Termination Cap

10)

2

Trim Collars

11)

1

Tube of Mill-Pac, high temperature sealant

12) 12

Screws, #8 x 1/2" Self tapping, Stainless Steel

13) 14

Screws, #8 x 1/2" Self tapping, Black

14)

4

Screws #8 x 1-1/2" Drill Point, Black

15)

4

Screws #8 x 1-1/2" Drill Point, Stainless Steel

16)

8

Wood screws #8 x 1"

Required but not included in above Kit:

45

o

Elbow (Part #: 946-214)

Note:

a) Liner sections should be con-

tinuous without any joints or

seams.

b) This is an approved system,

therefore components in this

system must not be substituted

for any other manufacturer's

products.

DV STOVE HORIZONTAL VENT KIT (#946-116 & #946-216) INSTALLATION
