10
Hampton® H35-2 Direct Vent Freestanding Gas Stove
INSTALLATION

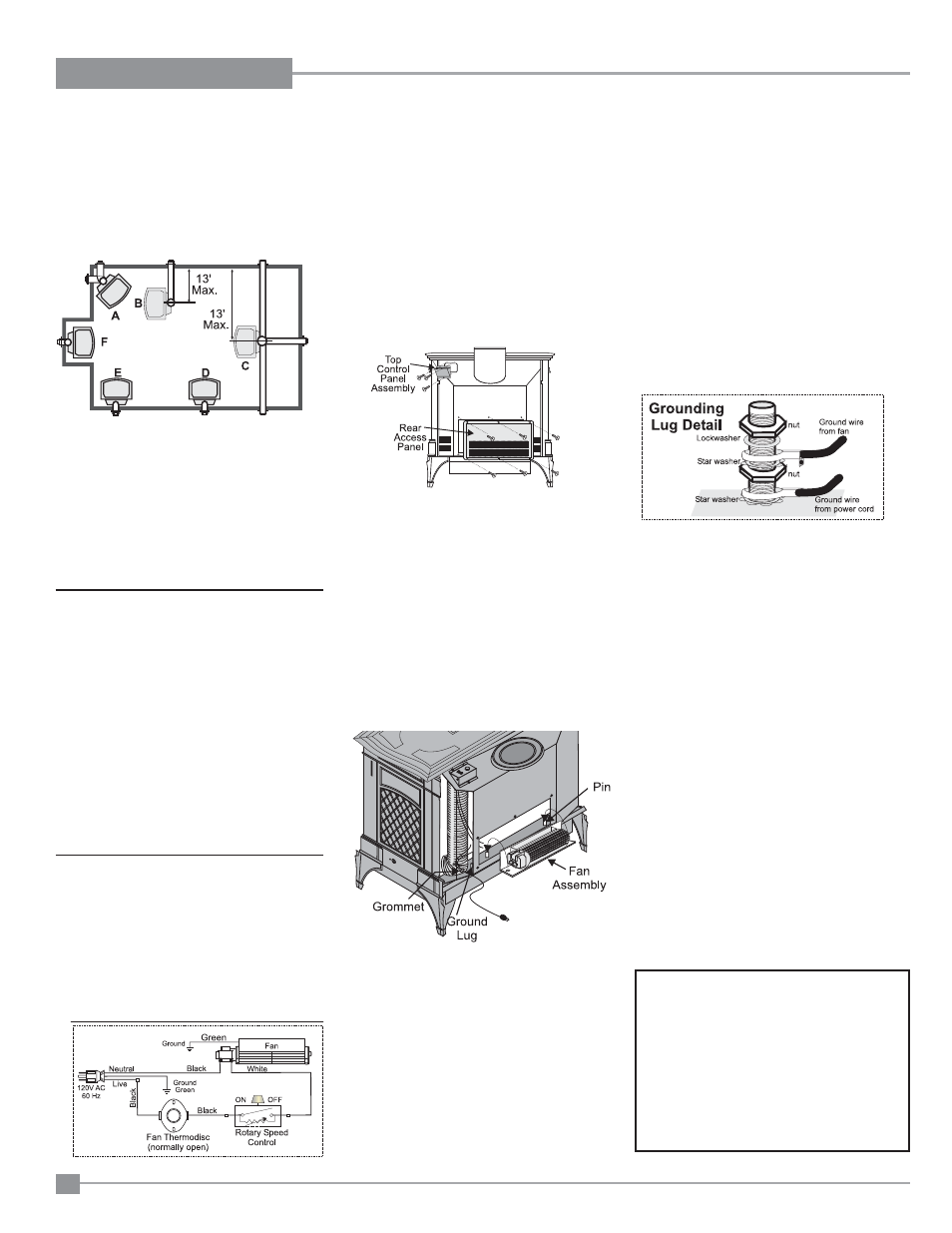

OPTIONAL FAN INSTALLATION
Fan Kit Contains:
Diagram 1
Diagram 2
LOCATING YOUR
GAS STOVE
When selecting a location for your stove, ensure
that the clearances listed above are met as well
as ensuring that there is adequate accessibility for
servicing and proper operation.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut or
weakened during installation.
2) Ensure proper grounding using the #8 ground
lug provided.
3) Appliance must be anchored to the fl oor with
the supplied anchoring methods.
COMBUSTION AND
VENTILATION AIR
The combustion air from this appliance is drawn
from outside the building through the outer fl ue.
Extra provision for combustion air inside the
room is not required.
A) Cross
Corner
B) Room
Divider
C) Island
D) Flat on Wall
E)
Flat on Wall Corner
F)
Flush with Wall/Alcove
For Vent Termination requirements, see the "Ex-
terior Vent Terminal Locations" section.
Qty. Description
1
Fan Speed Controller with nut, and
knob.
1
Fan Assembly c/w green wire
attached
1
Power cord
1
Plastic locking grommet
1) Remove the Top Control Panel Assembly
by removing the three screws. Diagram 1.
2) Remove the nylon hole plug from the control
panel.
3) Install the fan speed controller onto the control
panel and secure with nut. Connect remaining
wire harness wires to speed control. NOTE:
Speed control wires must be in the down posi-
tion when control panel is in place.
4) Push black knob onto speed control.
5) Remove the rear access panel on the back of
the stove by removing the 6 screws. Install the
fan onto pins as per Diagram 2.
NOTE: Do NOT damage, cut or remove the 3"
aluminum air intake pipes.
Hint for pushing fan down onto pins - rub a bit
of dish soap on the pins so the grommets will
slide down more easily. Check to make sure the
fan is seated properly on the pins - try to move
the fan back and forth.
6) Push power cord through hole in the rear panel
14" - 16" and tie a loose knot in the cord on the
inside to prevent the power cord from being
pulled out. Diagram 2.
7) Install locking grommet to power cord and push
through hole in the rear panel and give a 1/4
turn to secure.
NOTE: When running wires, keep them clear
of valve assembly and tubing to avoid
tangling of wires and valve.
NOTE: Be careful not to cut wires when passing
through holes in the fi rebox.
8) Run green ground wire from fan and connect
to grounding lug.
9) Connect green power cord ground wire to
grounding lug.
10) Run the neutral black wire from power cord and
connect to fan motor.
11) Run the live black wire from power cord and
connect to speed control wire.
12) Connect the white wire of the wire harness to
the fan terminal.
NOTE: Pull excess wire next to fan to avoid
excessive heat from the fi rebox.
13) Ensure all wires are pulled away from fi rebox to
avoid excessive heat and secure with stick-on
wire clip.
14) Re-attach control panel with 3 screws, revers-
ing step 1. Re-attach rear access panel with 6
screws, reversing step 5.
NOTE: When power cord is plugged in, speed
control is in the ON position and stove is burn-
ing, allow 10 - 15 minutes for the thermodisc
(temperature switch) to activate and turn on the
Fan automatically.
WARNING:
Electrical Grounding Instructions
This appliance is equipped with a
three pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into
a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug.
