Regency Excalibur EX-E33 Large Gas Insert - Manual (Page 35)

E33 FPI Direct Vent Gas Insert
35

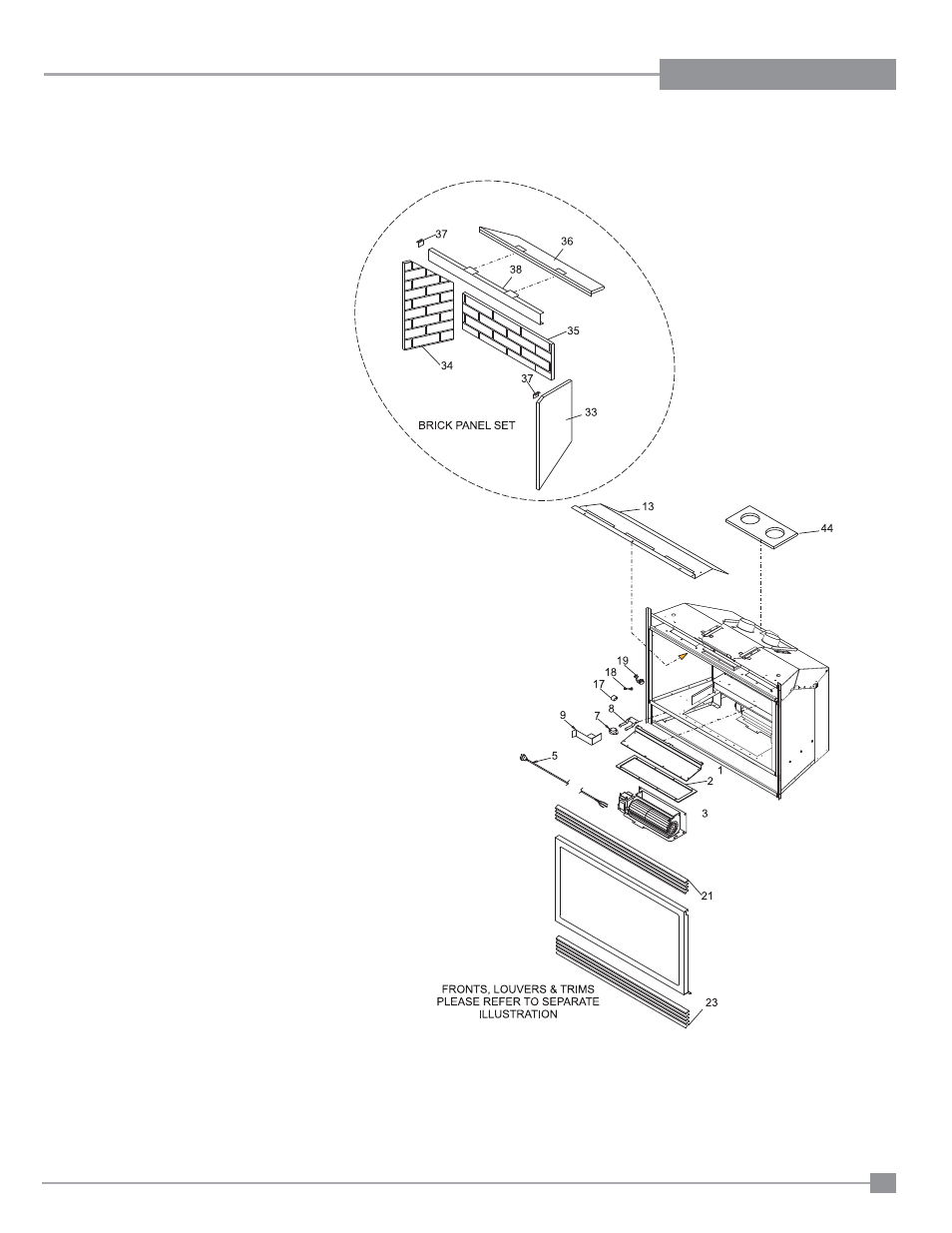

PARTS LIST
MAIN ASSEMBLY
Part # Description
1) 340-038 Fan Access Plate
2) 340-103 Gasket - Fan Access Plate
3) 320-517/P Fan Assembly 120 V
910-331/P Fan Motor 120 V
5) 910-750 Power Cord
910-752 Wire Harness (Faceplate)
910-692 Wire Fan to Power Cord
910-737 Wire Valve to Spill Switch
7) 910-142
Fan Auto On/Off Thermodisc
8) * Thermodisc Bracket
9) 320-070 Fan Switch Cover
13) * Baffl e Plate
17) * Wire Holder Clip
18) * Strain Relief
19) * Grommet for Power Cord
340-924 Flush Louvers (Set) - Black/Gold
340-922 Flush Louvers (Set) - Black
340-926 Flush Louvers (Set) - Black/Steel
21) * Top Flush Louver
23) * Bottom Flush Louver
340-901 Brick Panel Set - Standard Brown
340-902 Brick Panel Set - Standard Red
33) *
Brick Panel - Right
34) * Brick Panel - Left
35) * Brick Panel - Back
36) *
37) 340-094
Brick Clip
340-043 Trim Brick Front
340-528 Base Brick Panel (3pc)
43) * Stove Top
45) * Adaptor Stop
46) * Adaptor Holding Brkt - Left
47) * Adaptor Holding Brkt - Right
48) 340-523 Flue Adaptor Assembly
49) 340-099 Thermal Insulation
50) * Insulation Hold Down Bracket
51) * Louver Hold Down - Top
918-513 Manual
* Not available as a replacement part.
