E33 FPI Direct Vent Gas Insert
33
MAINTENANCE
FAN MAINTENANCE
If your fan requires maintenance or replacement,
access to the fan is through the plate on the
fl oor of the fi rebox. NOTE: the unit MUST NOT
be operated without the fan access panel
securely in place.
Caution: Label all wires prior to
disconnecting when servicing controls.
Wiring errors can cause improper and
dangerous operation. Verify proper
operation after servicing.
DOOR GLASS
Your FPI stove is supplied with high temperature,
5 mm Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. Do
not abuse the glass by striking the surface or
by slamming the door shut.
If your glass requires cleaning, we recommend
using an approved glass cleaner available at
all authorized dealers. Do not use abrasive
materials. Do not clean the glass when hot.
In the event that you break your glass by
impact, purchase your replacement from an
authorized FPI dealer only, do not use substitute
materials. Follow our step-by-step instructions
for replacement. Warning: Wear gloves when
removing damaged or broken glass.
Caution: Do not operate appliance with
glass panels removed, cracked or broken.
Replacement of the glass should be done
by a licensed or qualifi ed service person.
Flush Glass Replacement
Remove the fl ush door front (refer to the
"Standard Flush Door" section). Remove the 4
glass clips from each corner. Slide in the new
replacement glass. Push the 4 glass clips back
onto the frame.

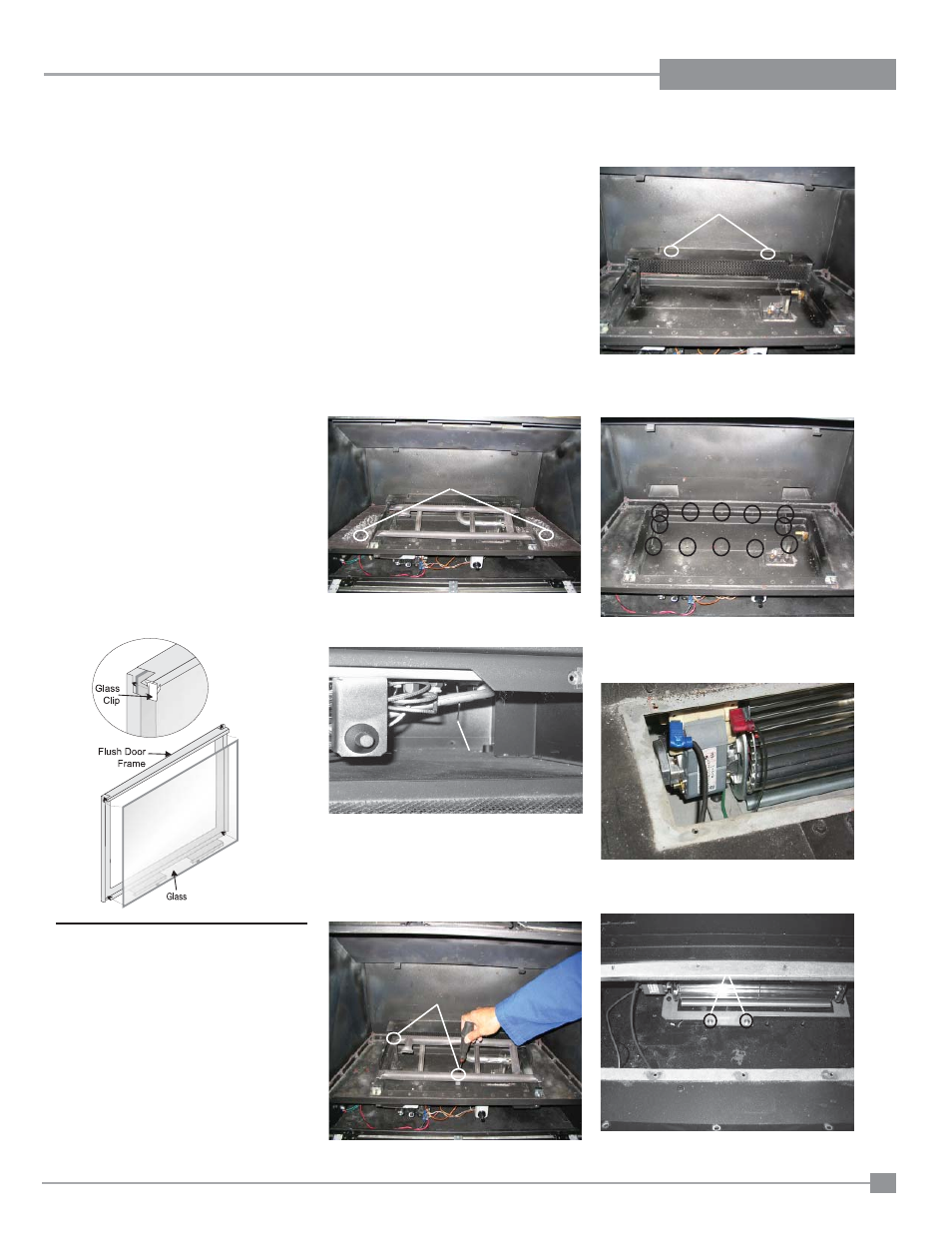

To Remove Fan:
1) Turn the unit off and allow it to cool down to
room temperature.
2) Unplug or disconnect power source to stove.
3) Remove the fl ush door (refer to p.14).
4) Remove logs and grate (refer to p.10).
5) Remove optional brick panel set, if installed
(refer to the "Optional Brick Panel" section).
6) Remove base brick set. (When removing
base brick sides the two screws that hold
the grate down must be removed fi rst).
Straighten adjustment wire.
Air Shutter Wire
9) Remove the rear log support by unscrewing
the 2 screws.
8) Remove the Burner by removing the 2
screws (1 on burner bracket and one on
valve tray). Tilt up the left burner and slide
to the left away from the orifi ce.
10) Remove the 12 screws holding the Access
Panel in place.
11) Unplug the wires from the fan motor (from
inside the stove).
7) Straighten the adjustment wire under the
fi rebox base.
Screws
Fan Access Plate Screws
12) Remove the 2 screws from the fan
bracket.
Screws
Screws
Screws
