20
E33 FPI Direct Vent Gas Insert
INSTALLATION

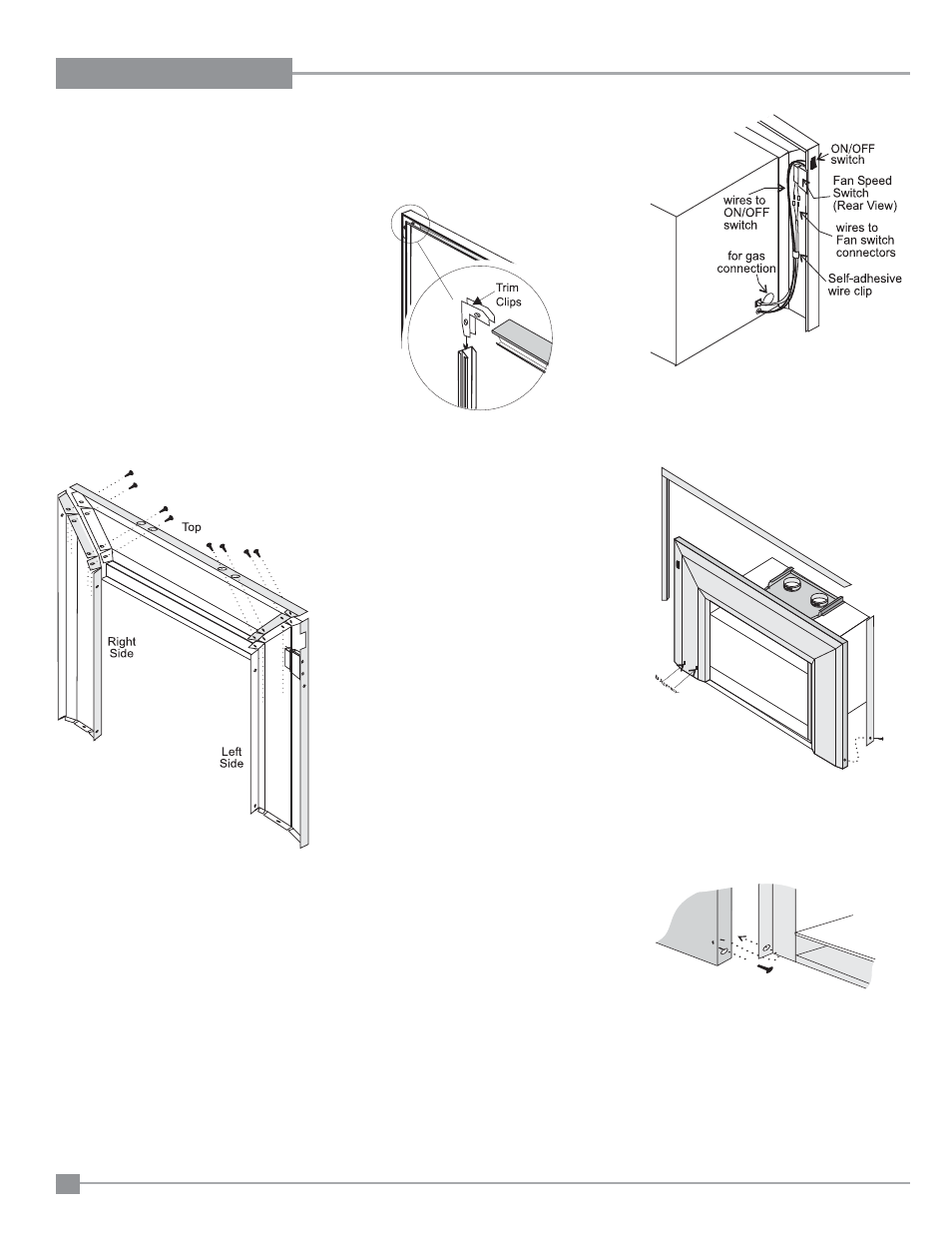

Diagram 5
11) Push the FPI logo plate into the two holes in
the bottom left corner of the faceplate.
10) Attach the faceplate panels to the insert body
using the 4 remaining black screws. Refer to
Diagram 5.
Diagram 4
9) Attach the trim to the faceplate by using the
plated screws (refer to Diagram 4).
Rear View: Faceplate Assembly
Diagram 1
FACEPLATE & TRIM
1) Lay the faceplate panels fl at, face down on
something soft so they don't scratch.
2) Take the top faceplate and align the holes in
it with the holes in the side panels. Using the
screws provided, attach from the top of the panel
(the holes in the top panel are slightly larger
than the holes in the side panel to facilitate
easier installation). Refer to Diagram 1.
Hint: Don't tighten the screws down completely
at this point, continue on with steps 3 and 4 and
do a trial fi t to the unit. Make any necessary
adjustments and when it fi ts properly then
tighten down the screws.
Diagram 3
7) Tuck the wires into the faceplate to keep them
away from the insert using the clip provided.
Attach the clip to the rear of the faceplate to
ensure that the wires do not touch the side of
the unit. Refer to Diagram 3.
8) The power cord should be run behind the
faceplate panel.
4) Place the trim on the assembled faceplate
panels, aligning the wire connections from the
switches with the notch on the left side panel.
5) Connect the fan switch wires by taking the
black and red wires with the male ends (in the
grey harness) and connect them with the wire
connectors from the fan speed control.
6) Connect the ON/OFF switch wires by taking
the black and red wires with the female ends
and connect them to the ON/OFF switch.
Rear View: Trim Assembly
Diagram 2
3) Using the connectors provided, join the left
side trim (with the ON/OFF switch) to the top
trim. Diagram 2. Connect the right side trim to
the top trim.
