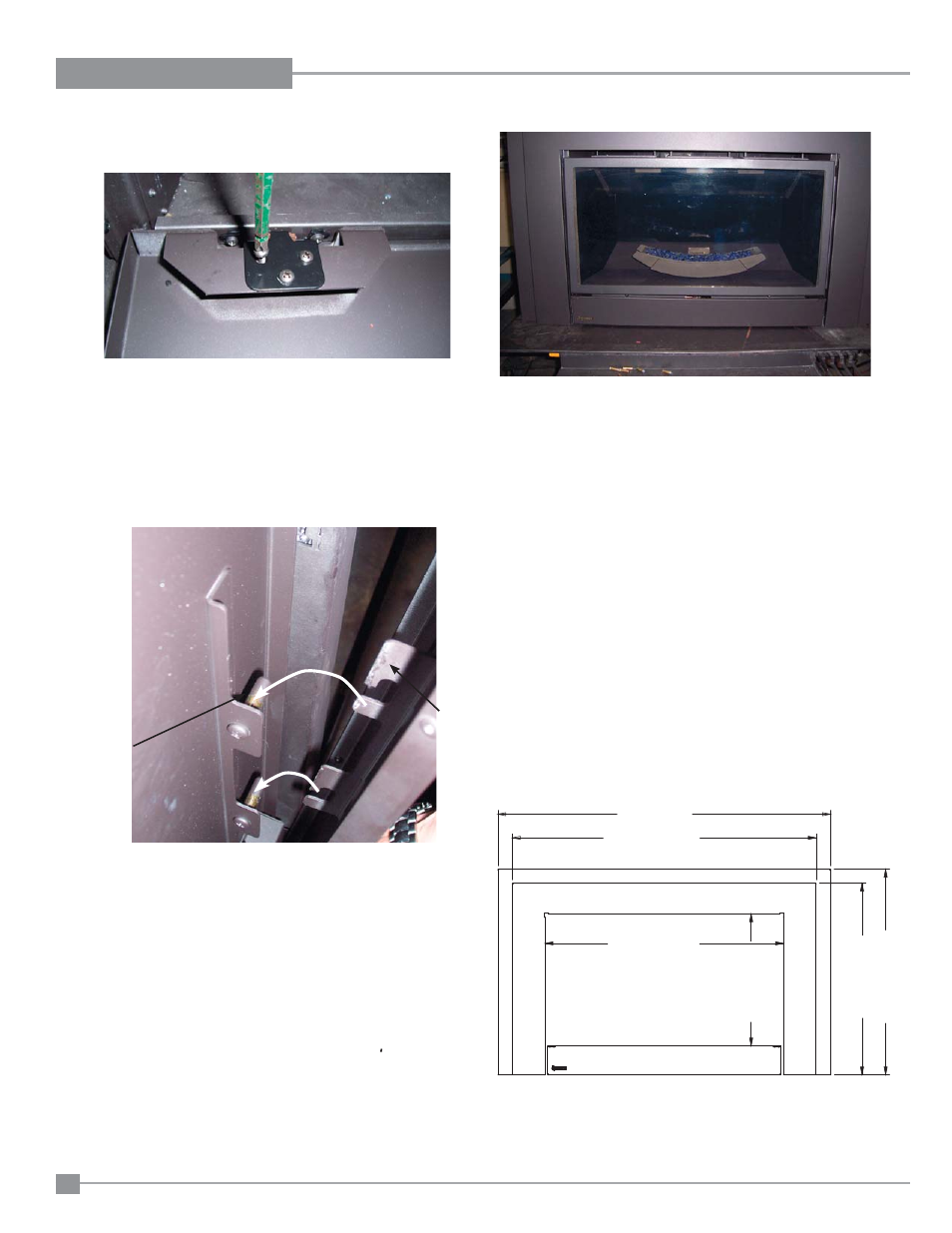

24
E33 FPI Direct Vent Gas Insert
46-15/32” (1180)
42-7/16” (1078mm)
26-3/4”
(678mm)
28.1
1/16”
(729mm)
33-5/16” (846mm)
18-7/16”
(467mm)
INSTALLATION
Diagram 9
Outer faceplate
Inner faceplate
panel pins
Diagram 10
8) Attach the bottom louver to the 2 hinges using 3 screws per
hinge.
9) Take the outer faceplate, line up the openings on the left and right
legs and install onto the inner faceplate panel pins.
Diagram 7
Final Install
