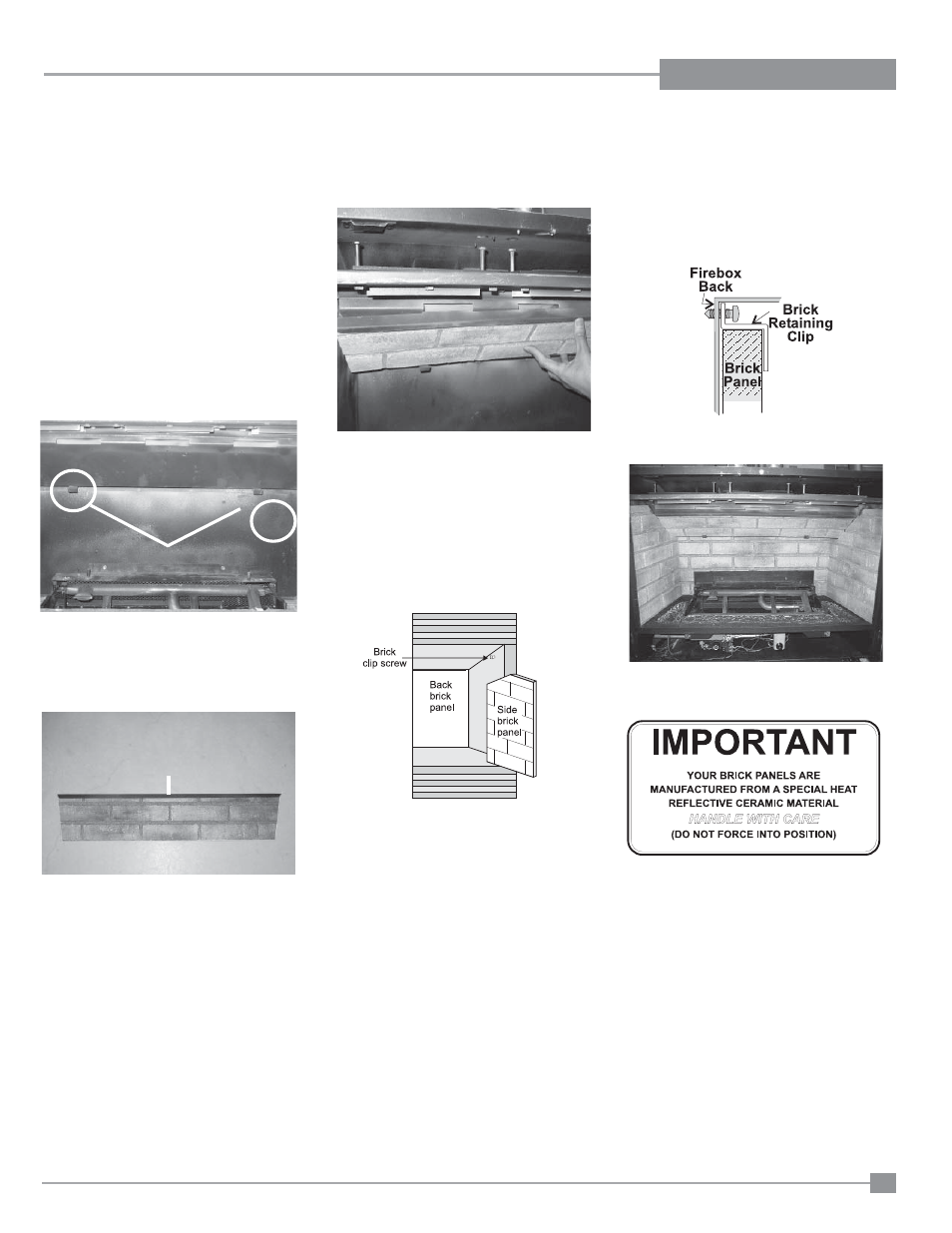

INSTALLATION
Diagram 1
Installation of Brick Panels:
1) Remove top louver and glass door if installed.
2) Remove the logs if they are already installed.
Note: the grate must be removed in order to
remove the bottom log. Ensure you slide the
bottom coal off to the right-hand side to avoid
chipping.
3) Unwrap the brick pattern panels from the
protective wrapping. Handle the panels with
care as they can break easily.
4) Remove the two screws from the bottom of the
baffl e plate. Install the bottom clips onto the
baffl e plate (refer to Diagram 1).
Bottom Clips
Top Bracket
5) Place the top bracket onto the top edge of
the top panel (refer to Diagram 2).
Diagram 2
6) Slide the top panel and bracket assembly
carefully onto the baffl e plate ensuring the
panel is centered. Make sure the tabs of the
top bracket fi t into the baffl e openings (refer to
Diagram 3).
7) Insert the back panel by sliding it between
the sidewalls of the fi rebox and the rear log
support.
Diagram 3
8) Before installing the side brick panels,
remove the screws from the side brick clips
(refer to Diagram 4).
Diagram 4
9) Insert the side panel by positioning it fl at
against the side walls. Tilt the panel
towards the middle of the fi rebox, then insert
the bottom front corner. Repeat on the other
side.
10) Install the 2 brick retaining clips, one on
each side.
Completed Installation
