E33 FPI Direct Vent Gas Insert
INSTALLATION

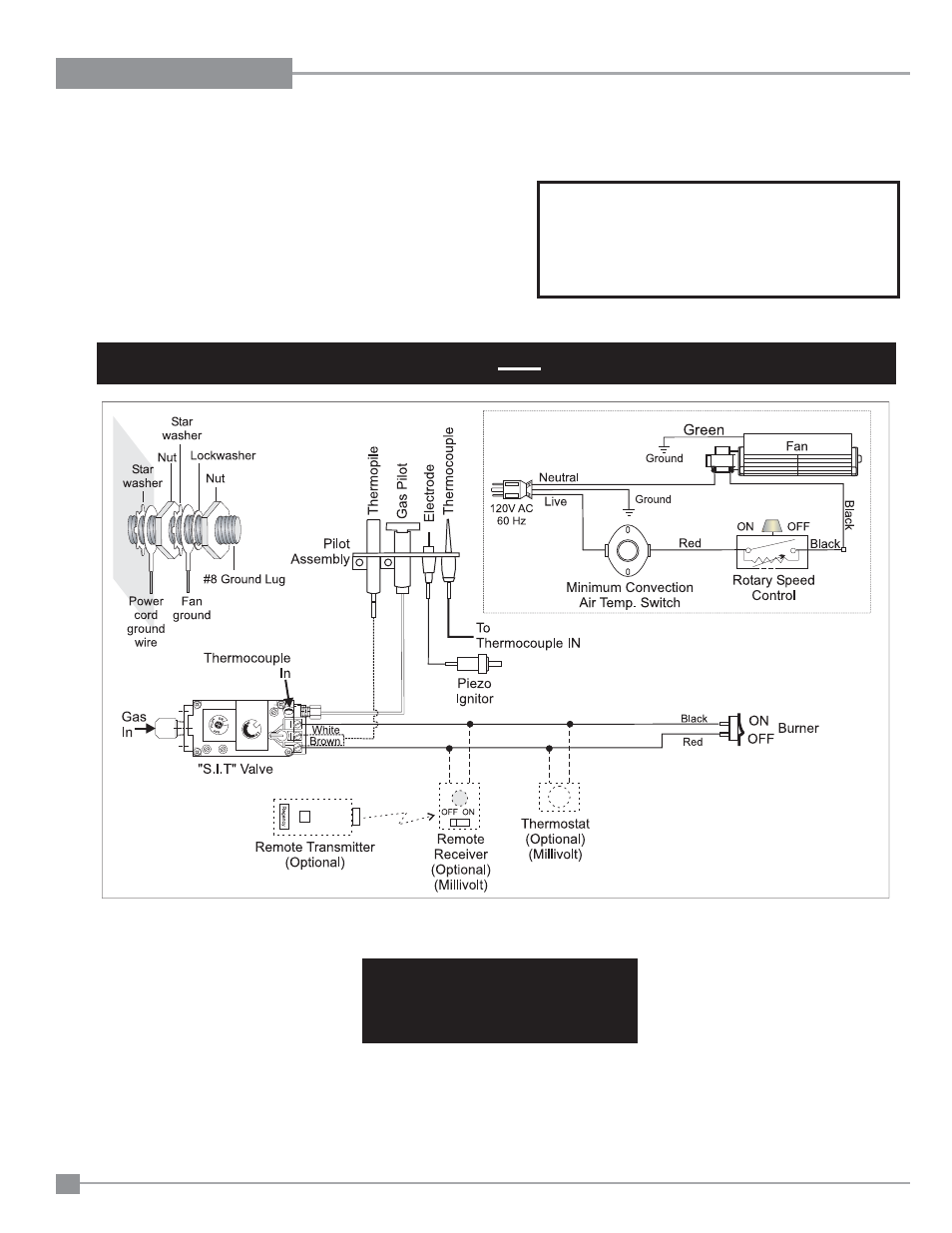

WIRING DIAGRAMS
This heater does not require a 120V A.C. supply
for operation. However, a 120V A.C. power
supply is needed for the fan/blower operation.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove
the grounding prong from this plug.
Caution: Ensure that
the wires do not touch
any hot surfaces and
are away from sharp
edges.
CAUTION: Label all wires prior
to disconnection when servicing
controls. Wiring errors can cause
improper and dangerous operation.
For
NATURAL GAS
Units and Units
NOT
Equipped with DC Spark Boxes
