12 - 8 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
T7BASE-US-FM5.5
WARNING
Just after you have used the machine, the print head is extremely HOT!

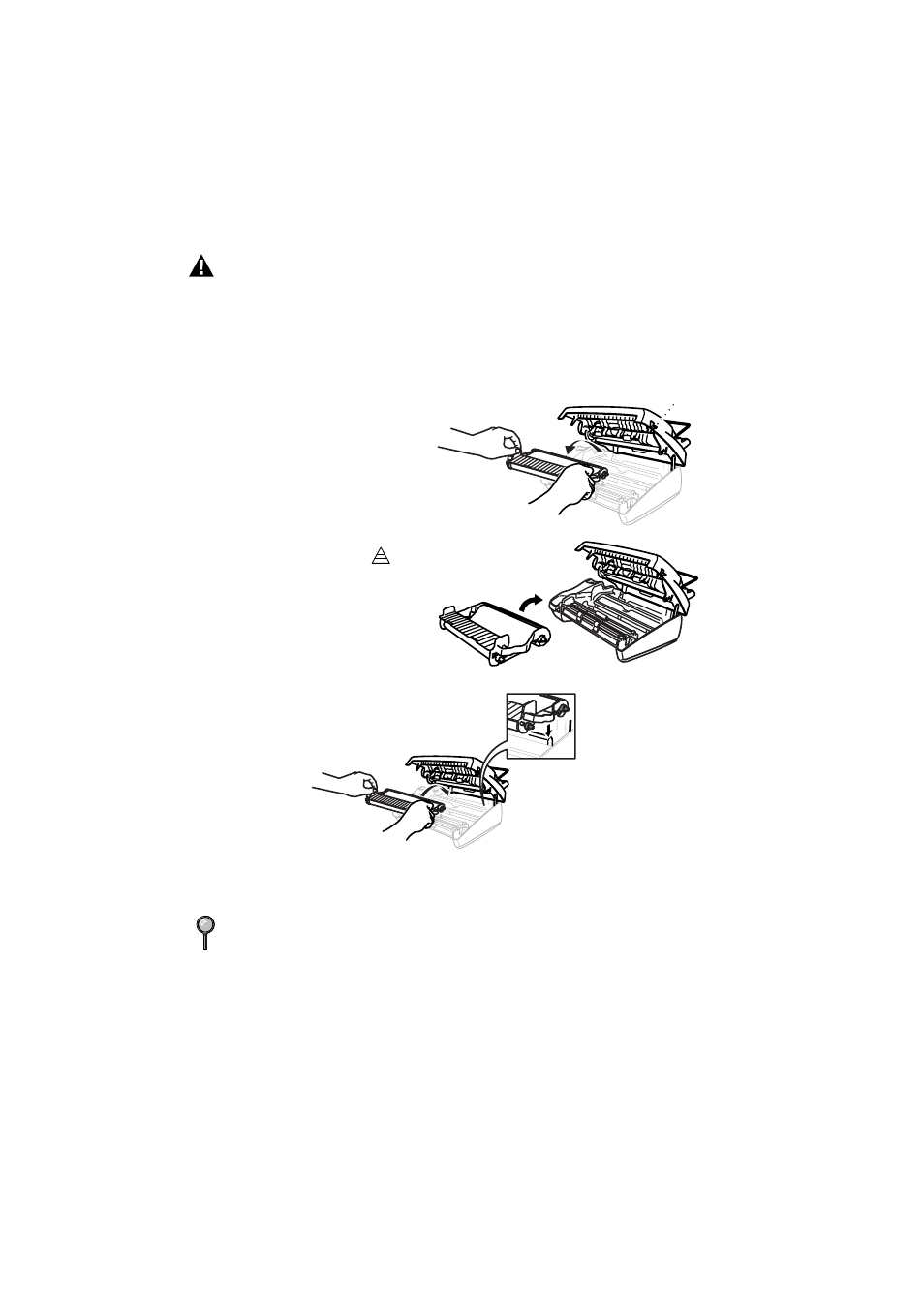

Replacing the Print Cartridge
1
Open the top cover by lifting the gray lever on the right side. (See page12-2)
2
Remove the print cartridge
containing the used ribbon and set it
down.
3
Install the new print cartridge, by
inserting the recessed first
and
placing the cartridge into its four
holders.
4
Press down on both sides of the top cover to close it securely.
You can save money by purchasing the 2-PK Refill Ribbon Rolls (PC402RF).
Installation instructions will be included. If you handle the print cartridge (frame)
carefully, you can reuse it until it breaks.
Gray Lever
