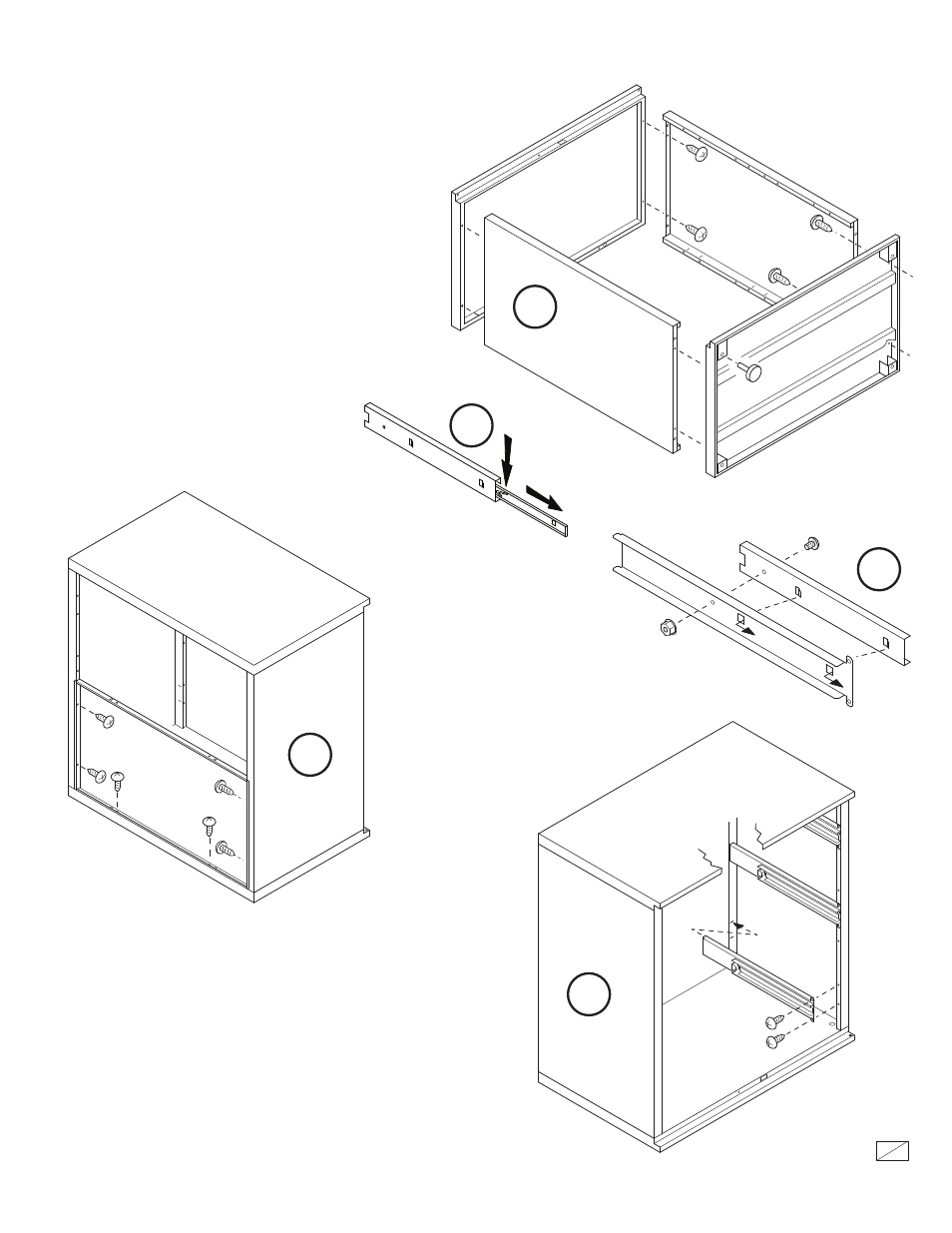

1.
Assemble the top and bottom to the side panels with 4
screws each. Do not over tighten the screws.
Screw the 4 levelers completely into the bottom panel.
Holding the top, carefully lift the cabinet to the upright
position. Continue to step 2 to assemble the back
panels.
5.
Attach the 6 slide assemblies to the inside of the cabinet.
Insert the bracket tabs into the slots in the back of the cabinet
and fasten the front with 2 screws. Do not over tighten the
screws.
Place the cabinet in its desired location. Level the cabinet
adjusting the levelers through the bottom panel access holes.
2.
Starting at the bottom, screw the 2 back panels to the
cabinet back using 6 screws on each panel. Do not
over tighten the screws.
4.
Clip the outer slides to
the slide brackets and
fasten with a nut and bolt.
NOTE: The nut must be
on the bracket side
(inside) as shown.
1
TOP
BOTTOM
SIDE
SIDE
5
4
SLIDE
BRACKET
OUTER
SLIDE
40149-0911
2 12
2
BACK (2)
3
3.
Disassemble the inner and outer slides
by pushing down on the locking latch of
the slide tab while pulling apart allowing
the two parts to come apart.
