Temperature Sensor-Characteristic
0
2000
4000
6000
8000
10000
12000
14000
16000
0 5 10 15 20 25 30
°C
OH
M
Temperature Sensor-Characteristic
0
2000
4000
6000
8000
10000
12000
14000
16000
30 40 50 60 70 80 90
°F
OH
M

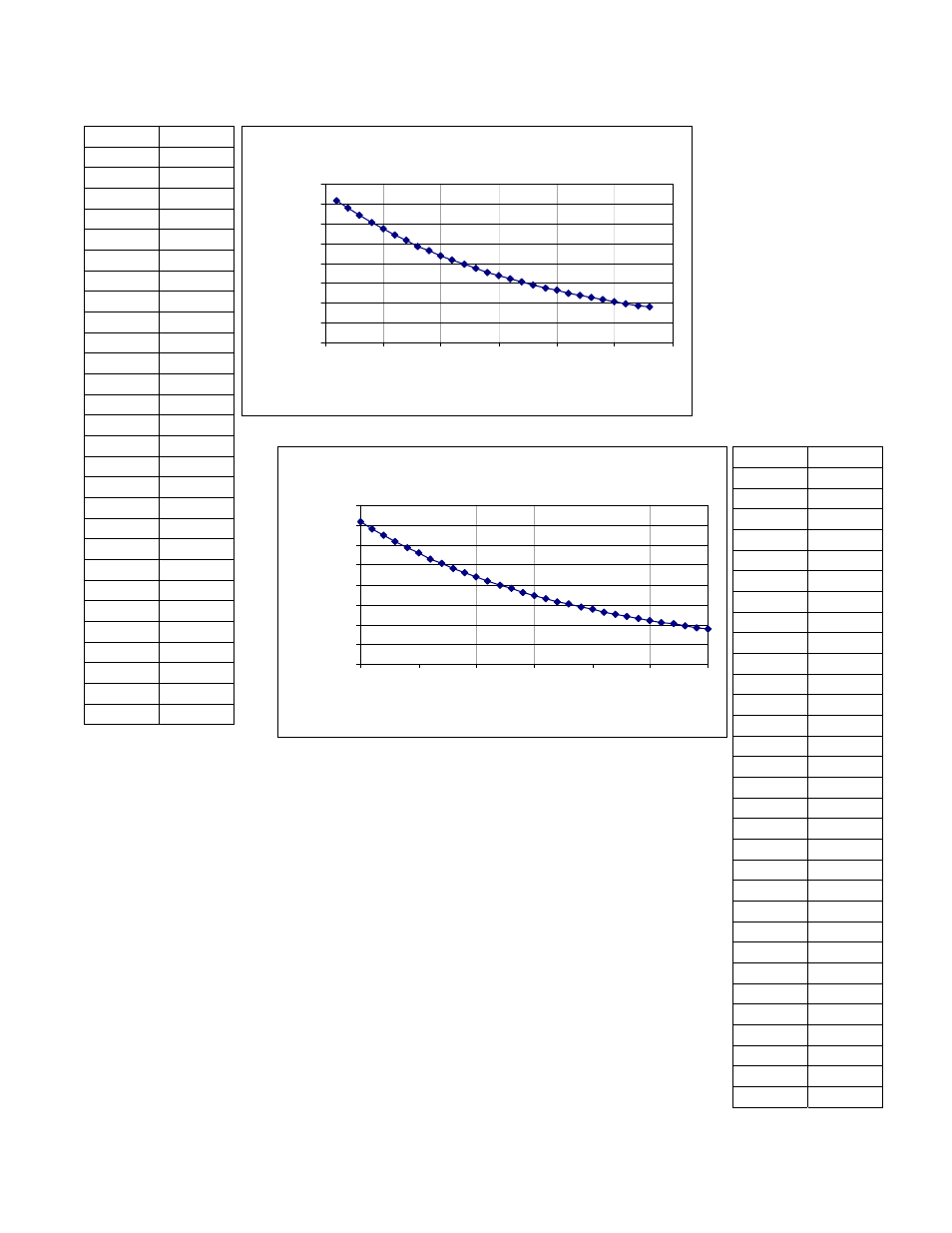

8.6 Temperature Sensor-Characteristics
°C OHM
0 14324
1 13615
2 12946
3 12313
4 11715
5 11149
6 10614
7 10107
8 9628
9 9174
10 8744
11 8336
12 7950
13 7584
14 7237
15 6907
16 6595
17 6298
18 6016
19 5749
20 5495
21 5253
22 5024
23 4805
24 4598
25 4400
26 4212
27 4033
28 3863
29 3701
30 3546
°F OHM
32 14324
34 13539
36 12802
38 12110
40 11460
42 10848
44 10273
46 9732
48 9223
50 8744
52 8293
54 7867
56 7466
58 7088
60 6732
62 6395
64 6078
66 5778
68 5495
70 5227
72 4974
74 4735
76 4509
78 4295
80 4092
82 3900
84 3718
86 3546
