- 18 -

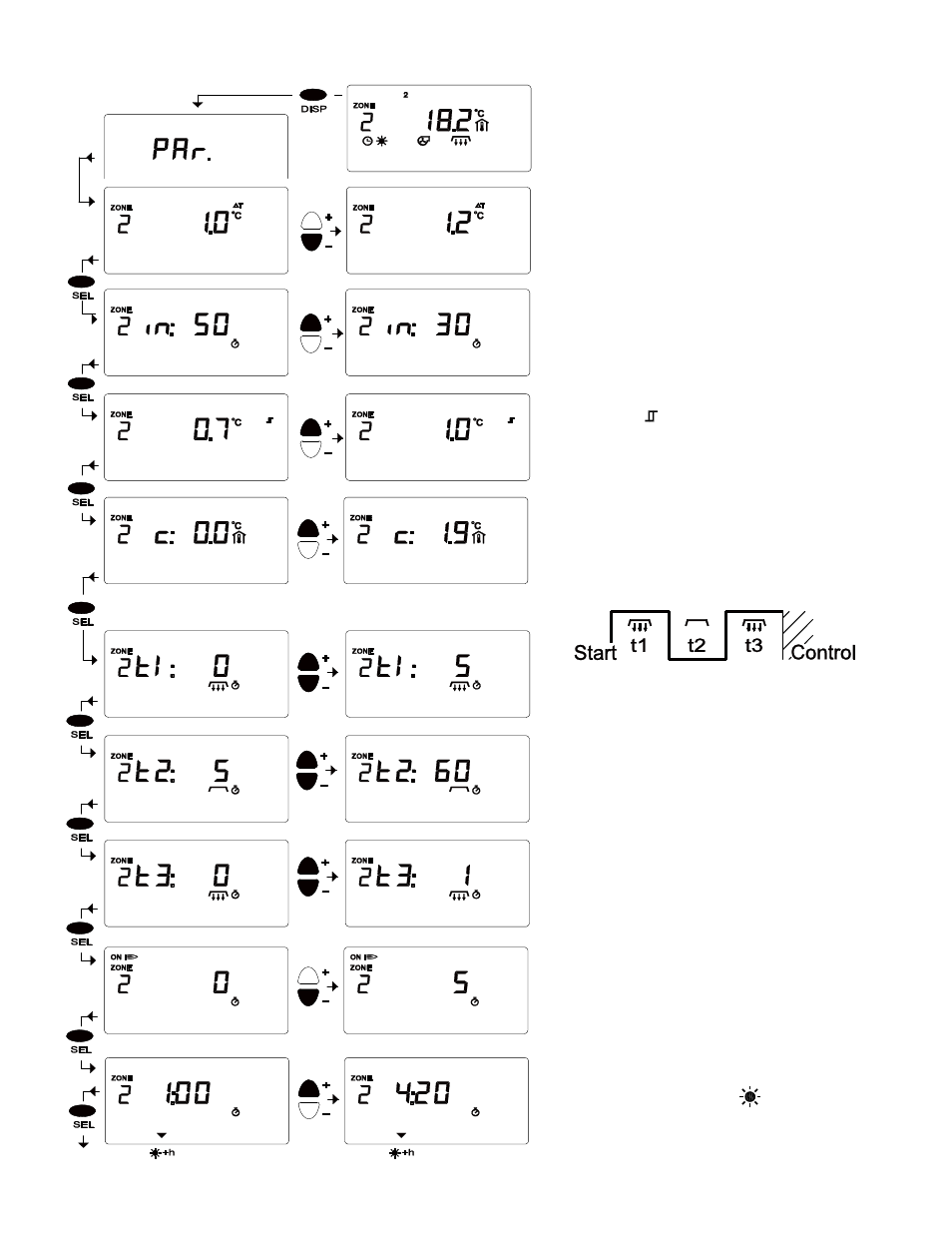

5.2 Set up system operation parameters
To set up the parameters hold the
DISP button for approximately 3
seconds. The “PAr” symbol appears
briefly. The operation parameters can
be selected with the SEL button.
Integration band: Two-stage mode
only: 0.5...3.0 °C / 1.0...5.5 ºF
In single-stage mode: (--.--) appears
Integration time: Two-stage mode
only: 10 … 99 minutes
In single-stage mode, or in off-state
(--.--) appears.
Hysteresis , can be activated by
0.2 … 2.0 °C / 0.4...3.6 ºF
Sensor correction: if the sensor
could not be mounted at the optimal
location, the measured temperature
can be revised:-9.9..+10.0 °C / -
9.9..+10.0 ºF
t1: Heater starts and runs at full
power then stops at the programmed
time, in this case: 0…5 minute.
t2: For the displayed time, the heater
stops completely (5..60 Sec). it only
appears, if the t1 doesn’t equal zero.
Minimum heater run time: ( 0...15
min)
Ability of a restart:
t3: Heater starts at full load for 1
minute, then the controller switches to
the regular mode (0: off). It does not
appear unless the two-stage control
is selected.
Override Duration: +h (0:00-
24:00)
